INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

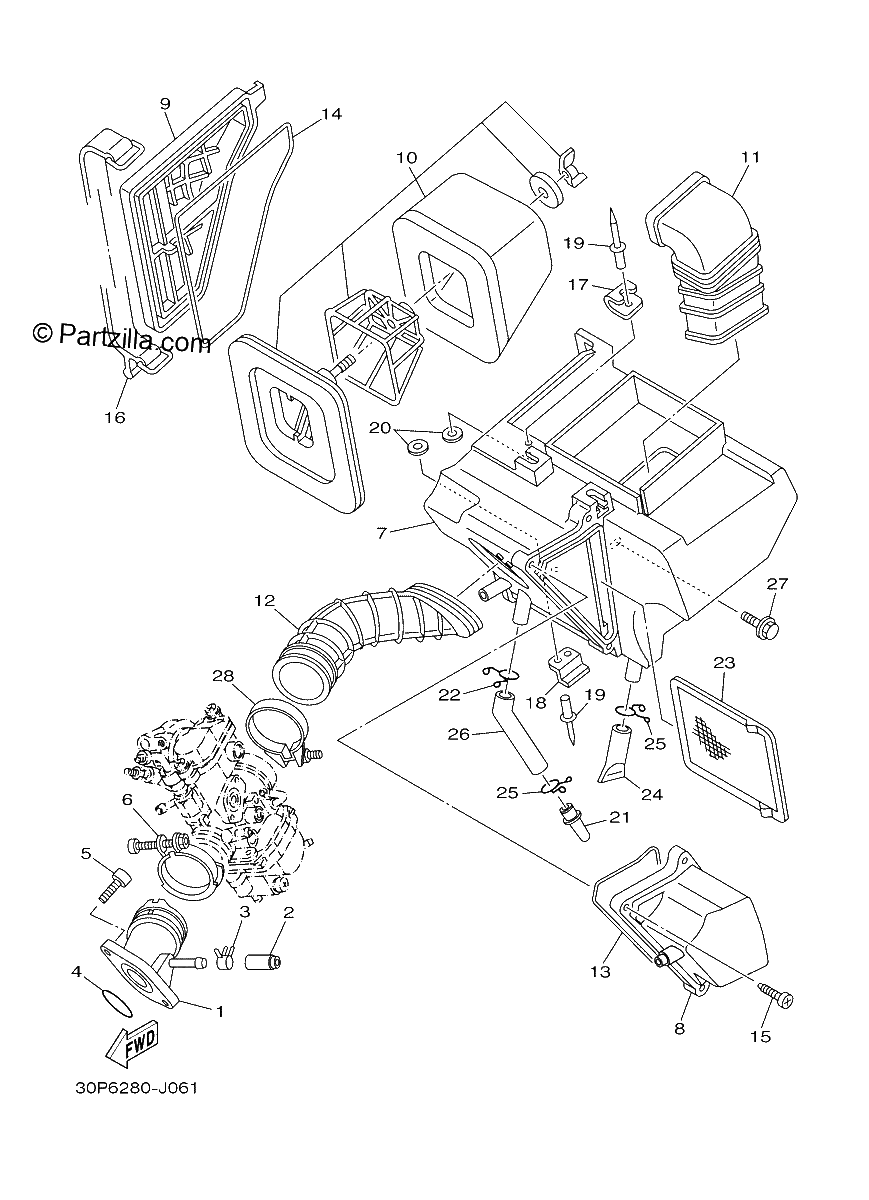

Diagrama de INTAKE

Repuestos

#1
5HP-13586-00-00
JOINT, carburetor
$80.04¢40 020
1
#2
16G-13569-00-00
PLUG,BLIND
$7.38¢3 691
1
#3
90467-10039-00
CLIP
$7.19¢3 594
1
#4
93210-30611-00
O-RING (replaces 93210-30800-00)
$11.86¢5 928
1
#5
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#6
90450-44046-00
HOSE CLAMP ASSY
$13.91¢6 958
1
#7
1B2-E4411-00-00
Case, Air Cleaner
$35.44¢17 722
1
#8
1B2-E4412-20-00
CAP, CLEANER CASE
$6.60¢3 301
1
#9
1B2-E4422-00-00
CAP, CLEANER CASE
$8.39¢4 198
1
#10
5HP-14450-00-00
ELEMENT ASSY, AIR
$25.39¢12 696
1
#11
1B2-E4437-00-00
DUCT
$14.54¢7 268
1
#12
1B2-E4453-00-00
JOINT, AIR CLEANER
$14.32¢7 159
1
#13
1B2-E4452-00-00
SEAL
$1.01¢506
1
#14
1B2-E4452-10-00
SEAL
$1.59¢793
1
#15
97707-50620-00
SCREW, TRUSS (replaces 97707-50520-00)
$7.07¢3 536
1
#16
1B2-F811G-00-00
BAND
$23.48¢11 742
1
#17
1B2-E4484-00-00
PLATE, CLEANER CAS
$0.64¢322
1
#18
1B2-E4436-00-00
HOOK
$0.41¢207
1
#19
90267-40029-00
RIVET,BLIND (replaces 90267-40804-00)
$7.30¢3 651
1
#20
9290M-04200-00
WASHER
$0.30¢150
1
#21
1B2-E443E-00-00
PIPE, DRAIN (replaces 1B2-E443E-20-00) This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#22
90467-15012-00
CLIP,SCISSOR
$5.16¢2 582
1
#23
1B2-E4472-00-00
PLATE, ELEMENT
$6.55¢3 278
1
#24
1B2-E443E-10-00
PIPE, DRAIN
$1.52¢759
1
#25
90467-14015-00
CLIP
$8.26¢4 129
1
#26
1B2-E443G-10-00
PIPE, DRAIN 2
$5.00¢2 501
1
#27
90119-06242-00
BOLT, WITH WASHER
$6.43¢3 214
1
#28
90450-47002-00
HOSE CLAMP ASSY (replaces 90460-46206-00)
$7.84¢3 922
1
