ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

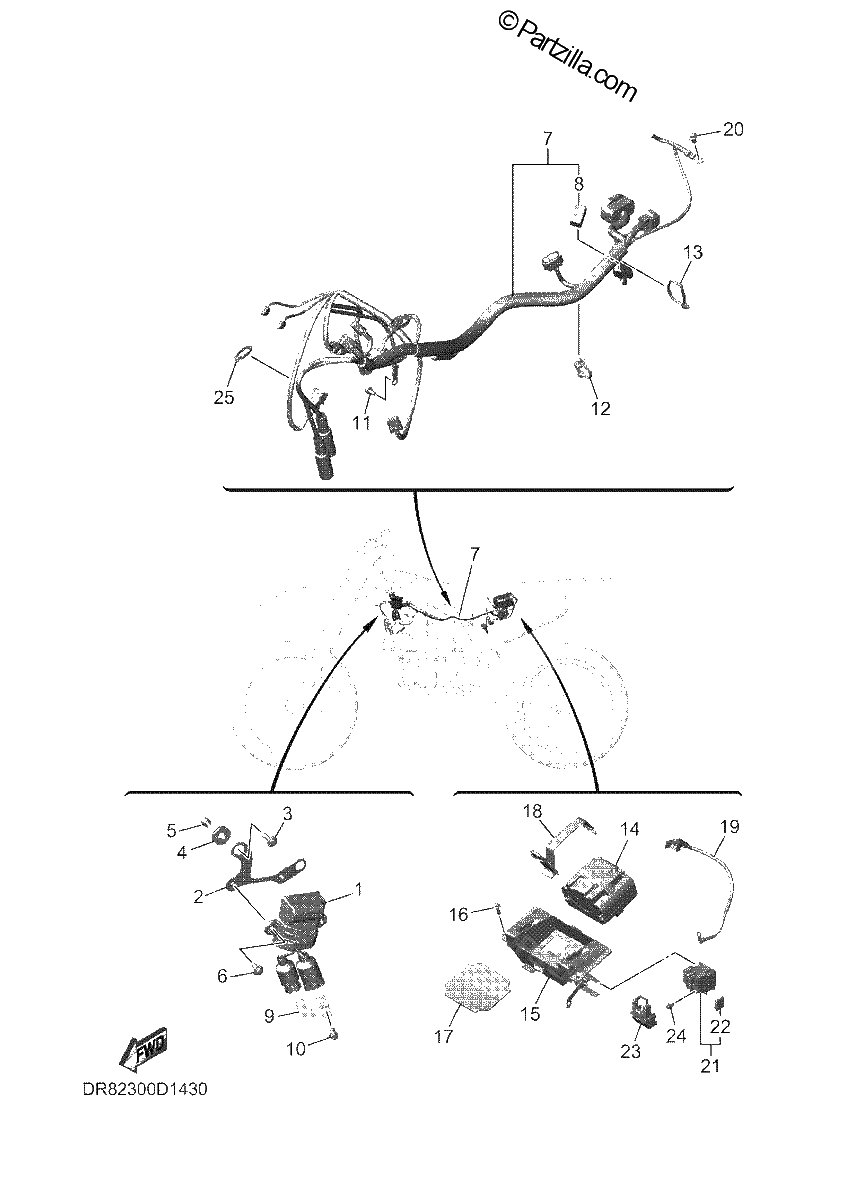

Diagrama de ELECTRICAL 2

Repuestos

#1
B7B-81960-00-00
RECTIFIER & REGULATOR ASSY
$160.76¢80 381
1
#2
BHR-21287-00-00
BRACKET, REGULATOR
$30.70¢15 350
1
#3
90105-06219-00
Bolt, Flange
$2.16¢1 081
1
#4
90480-19283-00
GROMMET
$8.60¢4 300
1
#5
90387-07573-00
COLLAR
$8.89¢4 444
1
#6
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#7
D01-82590-00-00
WIRE HARNESS ASSY
$429.51¢214 756
1
#8
4WA-81980-00-00
DIODE ASSY
$30.92¢15 462
1
#9
D03-82388-00-00
PLATE
$5.17¢2 588
1
#10
90105-06110-00
Bolt, Flange
$7.46¢3 731
1
#11
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.91¢456
1
#12
90464-31002-00
CLAMP
$4.56¢2 281
1
#13
1UA-82591-00-00
BAND
$4.91¢2 456
1
#14
BR9-82100-A9-00
BATTERY ASSY (TPTAQ 4S1P)
$732.49¢366 244
1
#15
BHR-82128-10-00
BRACKET, BATTERY
$84.71¢42 356
1
#16
90105-06203-00
BOLT, FLANGE
$2.15¢1 075
1
#17
BR9-82176-00-00
Damper
$5.93¢2 963
1
#18
BHR-82131-00-00
BAND, BATTERY
$31.81¢15 906
1
#19
BHR-82115-00-00
WIRE, PLUS LEAD
$27.90¢13 950
1
#20
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#21
2GB-81940-00-00
STARTER RELAY ASSY (RC19-102B)
$53.90¢26 950
1
#22
36Y-82151-00-00
Fuse (15 Amp)
$4.84¢2 419
1
#23
5SL-82119-10-00
COVER, LEAD WIRE
$4.84¢2 419
1
#24
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#25
90465-10098-00
CLAMP
$2.78¢1 388
1
