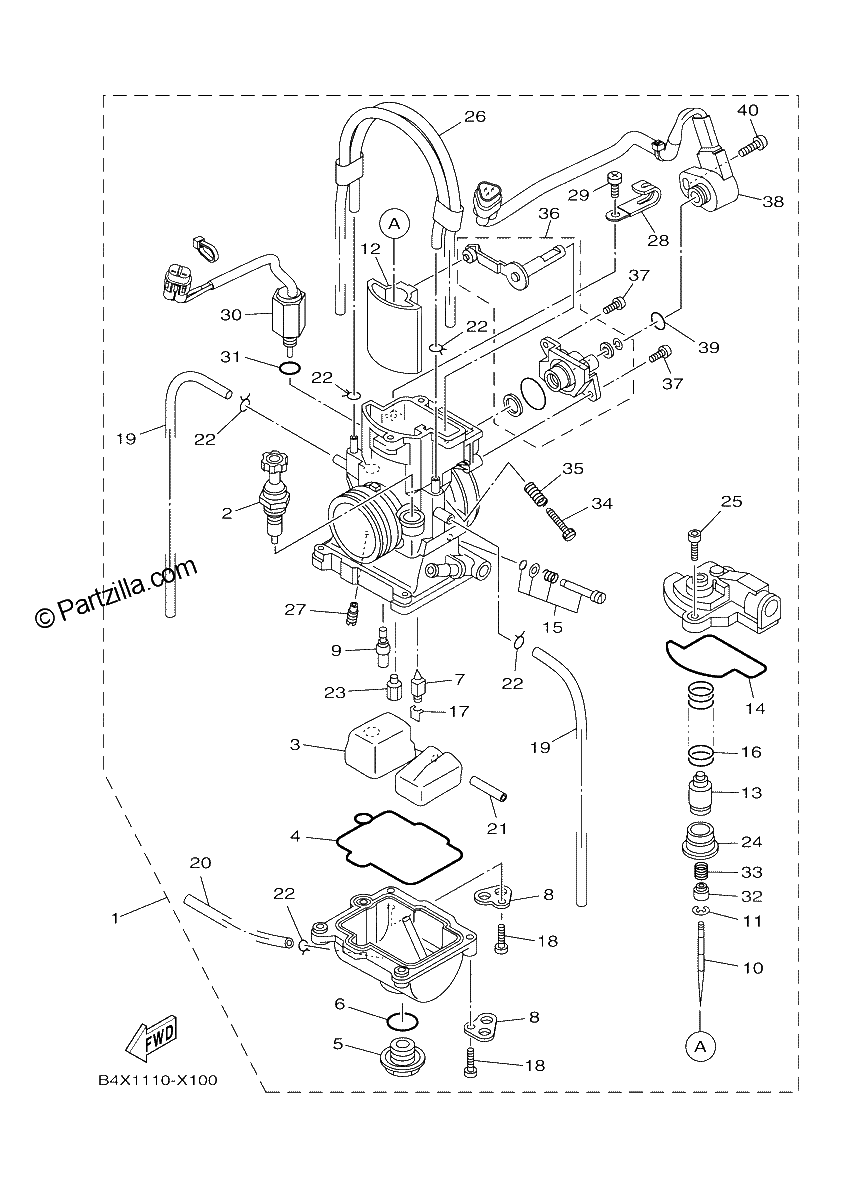

CARBURETOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CARBURETOR ASSY 1
$727.94¢363 969
#2
PLUNGER, STARTER
$38.31¢19 153
#3
FLOAT
$64.38¢32 188
#4
GASKET, FLOAT CHAMBER
$23.98¢11 989
#5
PLUG, SCREW
$31.31¢15 657
#6
O-RING
$6.46¢3 231
#7
VALVE, NEEDLE
$41.76¢20 878
#8
PLATE
$8.16¢4 082
#9
JET, SLOW (#62) | AP
$17.96¢8 981
#9
JET, SLOW (#60) | AP
$17.96¢8 981
#9
JET, SLOW (#58) | AP
$17.39¢8 694
#9
JET, SLOW (#55) | AP
$9.43¢4 715
#9
JET, SLOW (#52) | AP
$9.12¢4 560
#9
JET, SLOW (#50) | STD
$9.12¢4 560
#9
JET, SLOW (#68)
$15.42¢7 711
#9
JET, SLOW (#65)
$15.42¢7 711
#9
JET, SLOW (#70)
$15.42¢7 711
#9
JET, SLOW (#75)
$15.42¢7 711
#9
JET, SLOW (#78)
$15.42¢7 711
#9
JET, SLOW (#80)
$15.42¢7 711
#9
JET, SLOW (#72)
$15.42¢7 711
#10
NEEDLE (N3CK) | AP
$28.04¢14 018
#10
NEEDLE (NYHW)
$24.01¢12 006
#10
NEEDLE (NYHK)
$27.58¢13 789
#10
NEEDLE (NYHJ)
$23.82¢11 908
#10
NEEDLE (NYHH)
$30.07¢15 036
#10
NEEDLE (NYHG)
$25.47¢12 736
#10
NEEDLE (N3EJ) | AP
$26.59¢13 294
#10
NEEDLE (N3CW) | AP
$28.37¢14 185
#10
NEEDLE (N3EH) | AP
$28.78¢14 392
#10
NEEDLE (N3EK) | AP
$28.65¢14 323
#10
NEEDLE (N3EW) | STD
$26.52¢13 259
#10
NEEDLE (N8RH) | AP
$18.14¢9 068
#10
NEEDLE (N8RJ) | AP
$28.04¢14 018
#10
NEEDLE (N8RW) | AP
$32.46¢16 232
#10
NEEDLE (N3CH) | AP
$27.57¢13 783
#10
NEEDLE (N3CJ) | AP
$32.46¢16 232
#10
NEEDLE (N3EG) | AP
$28.04¢14 018
#10
NEEDLE (N3CG) | AP
$28.61¢14 306
#11
CLIP
$7.04¢3 519
#12
VALVE ASSY
$210.12¢105 058
#13
HOLDER
$42.53¢21 263
#14
GASKET
$16.31¢8 153
#15
PILOT SCREW SET
$18.58¢9 292
#16
SPRING, THROTTLE VALVE
$25.24¢12 621
#17
CLIP
$15.23¢7 613
#18
BOLT, HEXAGON SOCKET HEAD
$3.47¢1 737
#19
PIPE
$9.69¢4 847
#20
PIPE, OVER FLOW 1
$10.63¢5 313
#21
PIN, FLOAT ARM
$5.58¢2 789
#22
Clip
$7.04¢3 519
#23
JET, MAIN (#182) | AP
$11.04¢5 520
#23
JET, MAIN (#172) | AP
$11.04¢5 520
#23
JET, MAIN (#180) | AP
$11.04¢5 520
#23
JET, MAIN (#170) | AP
$11.33¢5 664
#23
JET, MAIN (#165) | AP
$11.04¢5 520
#23
JET, MAIN (#185) | AP
$10.89¢5 445
#23
JET, MAIN (#188) | AP
$11.43¢5 716
#23
JET, MAIN (#190) | AP
$11.12¢5 560
#23
JET, MAIN (#175) | AP
$11.04¢5 520
#23
JET, MAIN (#195)
$7.27¢3 634
#23
JET, MAIN (#178) | STD
$11.04¢5 520
#23
JET, MAIN (#168) | AP
$11.04¢5 520
#24
RING
$22.20¢11 098
#25
BOLT
$6.75¢3 375
#26
HOSE
$42.62¢21 310
#27
JET(#110)
$15.12¢7 561
#27
JET (#100) | AP
$17.22¢8 608
#27
JET (#95)
$17.11¢8 556
#27
JET (#105)
$17.11¢8 556
#27
JET (#90) | AP
$16.26¢8 131
#27
JET (#85)
$15.12¢7 561
#28
. PLATE
$7.50¢3 749
#29
SCREW, PAN HEAD
$3.58¢1 788
#30
SOLENOID VALVE
$255.47¢127 736
#31
O-RING
$4.67¢2 335
#32
COLLAR
$38.04¢19 021
#33
SPRING
$7.28¢3 640
#34
SCREW, THROTTLE
$17.34¢8 671
#35
SPRING, THROTTLE STOP
$7.82¢3 910
#36
LEVER COMP 1
$90.24¢45 120
#37
SCREW
$5.35¢2 674
#38
THROTTLE SENSOR ASSY
$270.41¢135 205
#39
O-RING
$7.52¢3 760
#40
Screw
$5.85¢2 927
