SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

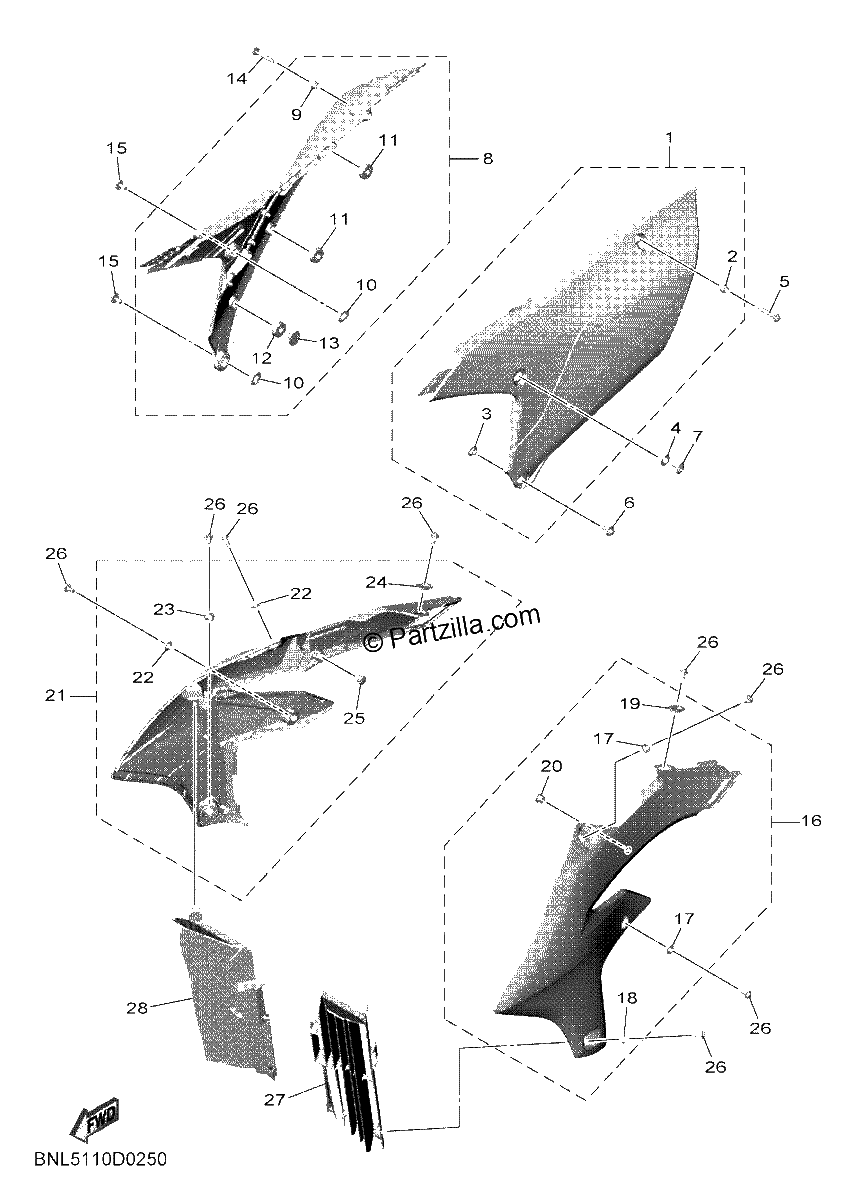

Diagrama de SIDE COVER

Repuestos

#1
BHR-21710-00-00
SIDE COVER ASSY 1
$35.92¢17 963
1
#2
90387-08057-00
Collar
$8.38¢4 188
1
#3
17D-14449-00-00
Collar
$8.03¢4 013
1
#4
90387-09022-00
COLLAR
$17.36¢8 681
1
#5
90105-06179-00
Bolt, Flange
$4.68¢2 338
1
#6
90119-06217-00
BOLT,WITH WASHER
$6.25¢3 125
1
#7
90111-06196-00
BOLT, HEXAGON SOCKET BUTTON
$2.07¢1 037
1
#8
D02-21720-00-00
SIDE COVER ASSY 2
$48.54¢24 269
1
#9
90387-08057-00
Collar
$8.38¢4 188
1
#10
D02-21749-00-00
COLLAR
$10.41¢5 206
1
#11
1SL-21719-00-00
Grommet
$15.79¢7 894
1
#12
90480-17013-00
GROMMET
$22.31¢11 156
1
#13
D02-21746-00-00
DAMPER
$19.59¢9 794
1
#14
90105-06179-00
Bolt, Flange
$4.68¢2 338
1
#15
90119-06217-00
BOLT,WITH WASHER
$6.25¢3 125
1
#16
BNL-217R0-P0-00
SIDE COVER INSERT ASSY. 3
$292.24¢146 119
1
#16
BHR-21730-00-00
SIDE COVER ASSY 3 (WO/GRAPHIC)
$42.27¢21 138
1
#17
90387-07045-00
COLLAR
$7.13¢3 563
1
#18
90387-08086-00
Collar
$6.45¢3 225
1
#19
1SL-21748-00-00
Collar
$11.29¢5 644
1
#20
90480-10068-00
GROMMET (replaces 90480-08608-00)
$8.06¢4 031
1
#21
BNL-217S0-P0-00
SIDE COVER INSERT ASSY. 4
$292.24¢146 119
1
#21
BHR-21740-00-00
SIDE COVER ASSY 4 (WO/GRAPHIC)
$42.27¢21 138
1
#22
90387-07045-00
COLLAR
$7.13¢3 563
1
#23
90387-08086-00
Collar
$6.45¢3 225
1
#24
1SL-21748-00-00
Collar
$11.29¢5 644
1
#25
90480-10068-00
GROMMET (replaces 90480-08608-00)
$8.06¢4 031
1
#26
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#27
BHR-2172A-20-00
PANEL 1
$30.92¢15 462
1
#28
BHR-2172F-20-00
PANEL 2
$30.92¢15 462
1
