WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

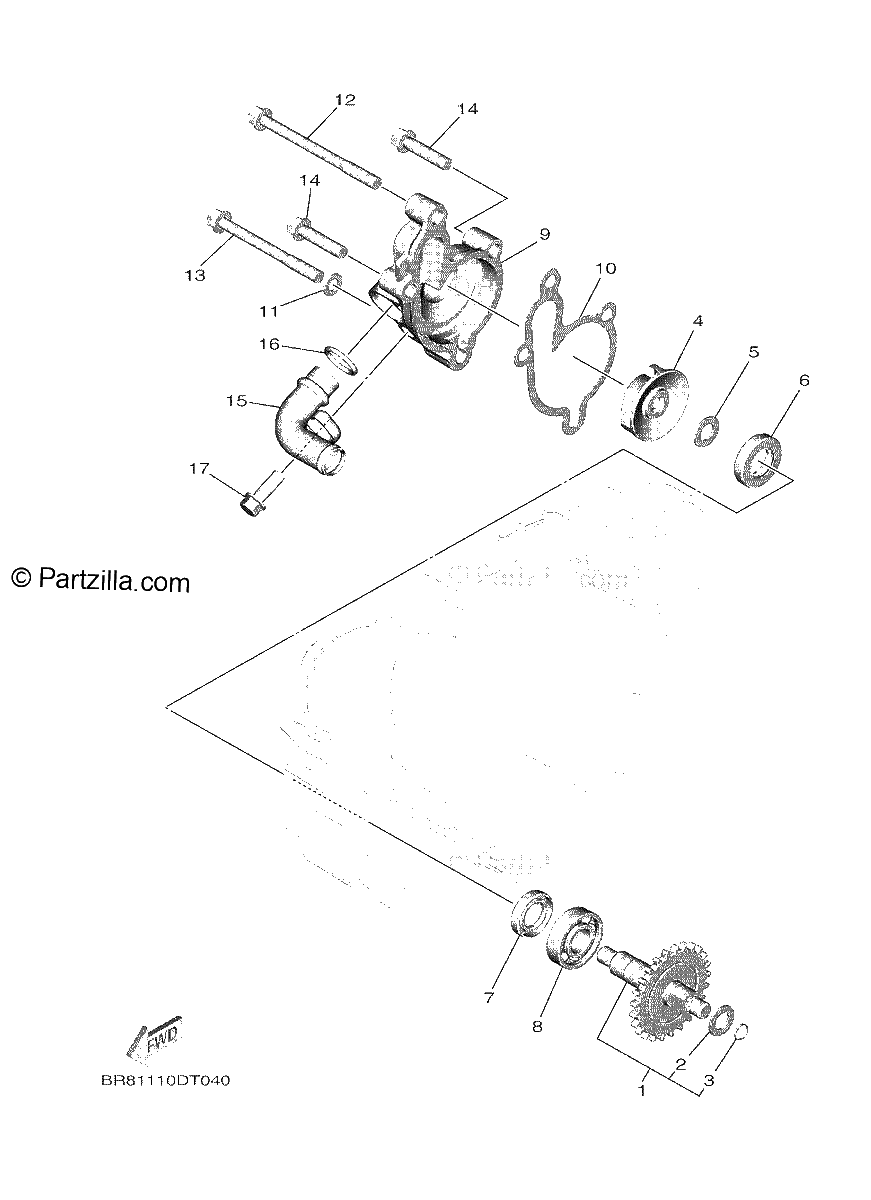

Diagrama de WATER PUMP

Repuestos

#1
5PA-12459-00-00
GEAR, IMPELLER SHAFT
$117.26¢58 631
1
#2
90201-08512-00
WASHER,PLATE
$7.34¢3 669
1
#3
93440-07182-00
CIRCLIP
$3.74¢1 869
1
#4
5PA-12451-00-00
IMPELLER, WATER PUMP
$56.39¢28 194
1
#5
90201-08512-00
WASHER,PLATE
$7.34¢3 669
1
#6
93109-11073-00
OIL SEAL
$11.49¢5 744
1
#7
93102-12106-00
OIL SEAL,SD-TYPE
$12.06¢6 031
1
#8
93306-00105-00
BEARING
$30.26¢15 131
1
#9
BR8-12422-00-00
Cover, Housing
$67.94¢33 969
1
#10
BR8-12428-00-00
GASKET, HOUSING COVER 2
$3.81¢1 906
1
#11
90430-06166-00
GASKET
$4.11¢2 056
1
#12
95E32-06070-00
BOLT, FLANGE DEEP RECESS
$0.94¢469
1
#13
95E32-06060-00
BOLT, FLANGE DEEP RECESS
$0.91¢456
1
#14
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.59¢294
1
#15
BR8-12481-00-00
PIPE 1
$26.99¢13 494
1
#16
93210-13657-00
O-RING
$6.99¢3 494
1
#17
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.81¢406
1
