REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

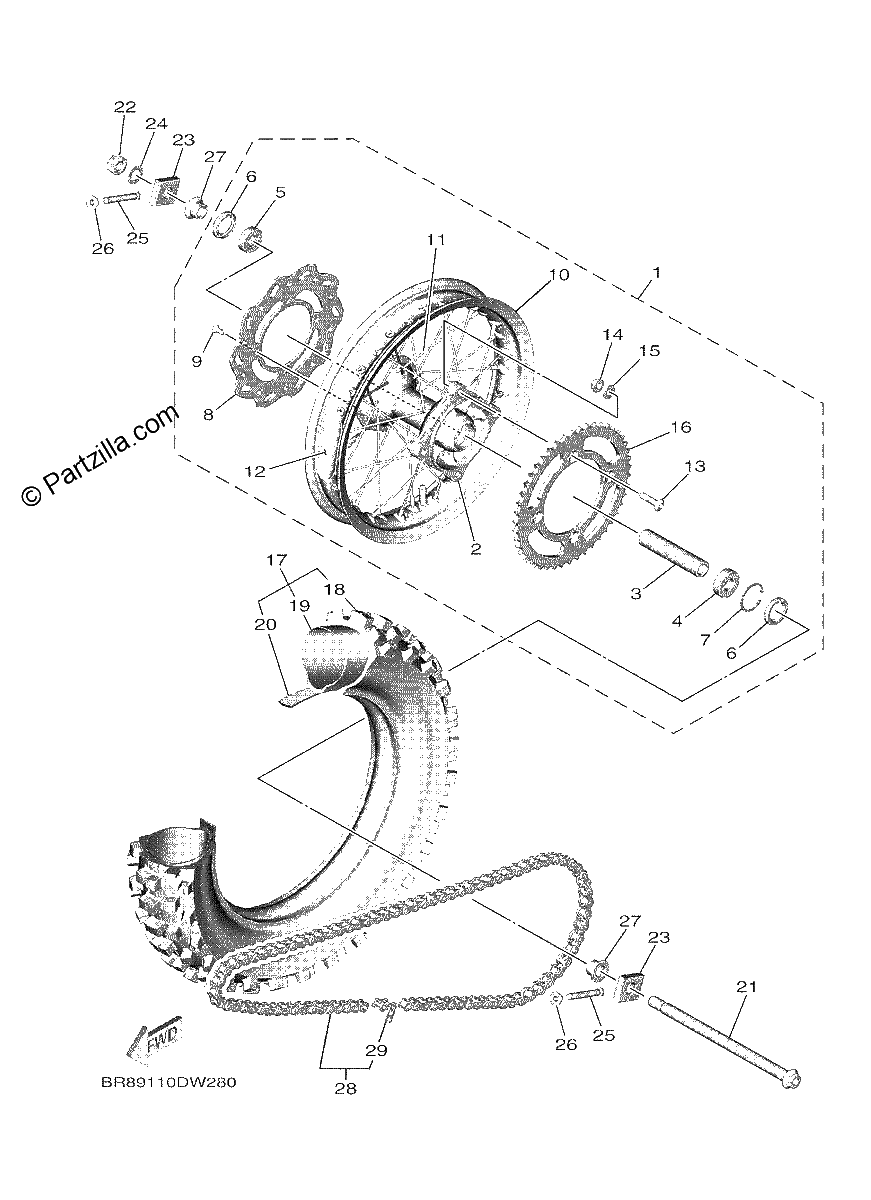

Diagrama de REAR WHEEL

Repuestos

#1
BR8-25302-00-00
REAR WHEEL SUB-ASSY
$512.49¢256 244
1
#2
4ES-25311-00-00
HUB, REAR
$369.16¢184 581
1
#3
BR8-25317-00-00
SPACER, bearing
$70.08¢35 038
1
#4
93306-00201-00
BEARING
$39.77¢19 888
1
#5
93306-20203-00
BEARING
$27.65¢13 825
1
#6
93102-20009-00
OIL SEAL
$10.86¢5 431
1
#7
99009-35500-00
CIRCLIP
$7.34¢3 669
1
#8
BR8-2582W-00-00
DISK, REAR BRAKE 2
$100.59¢50 294
1
#9
90151-06079-00
SCREW, COUNTERSUNK
$3.17¢1 588
1
#10
94416-12005-00
RIM (1.60-12)
$300.29¢150 144
1
#11
BR8-25304-00-00
SPOKE SET, REAR
$52.98¢26 488
1
#12
5X2-25394-00-00
SPACER, BEAD
$52.46¢26 231
1
#13
90152-08001-00
SCREW, COUNTERSUNK
$3.56¢1 781
1
#14
90185-08008-00
NUT, SELF-LOCKING
$7.16¢3 581
1
#15
90201-08043-00
WASHER, plate
$6.88¢3 438
1
#16
BR8-25447-00-00
SPROCKET, DRIVEN (47T)
$97.49¢48 744
1
#16
BR8-25446-00-00
SPROCKET, DRIVEN (46T)
$184.38¢92 188
1
#16
BR8-25448-00-00
SPROCKET, DRIVEN (48T)
$185.56¢92 781
1
#17
BR8-25308-01-00
REAR TIRE SET
$108.74¢54 369
1
#21
BR8-25381-00-00
AXLE, WHEEL
$33.20¢16 600
1
#22
90185-14009-00
NUT, SELF-LOCKING
$9.91¢4 956
1
#23
BR8-25389-00-00
PULLER, CHAIN 2
$23.61¢11 806
1
#24
90201-14411-00
WASHER,PLATE
$6.38¢3 188
1
#25
90101-08006-00
bolt
$8.01¢4 006
1
#26
90179-08029-00
Nut
$15.08¢7 538
1
#27
BR8-25383-00-00
COLLAR, WHEEL
$26.71¢13 356
1
#28
9Y582-48113-00
CHAIN
$63.27¢31 638
1
#29
94682-48001-00
JOINT, CHAIN
$4.92¢2 463
1
