3 MAINTENANCE PARTS KIT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

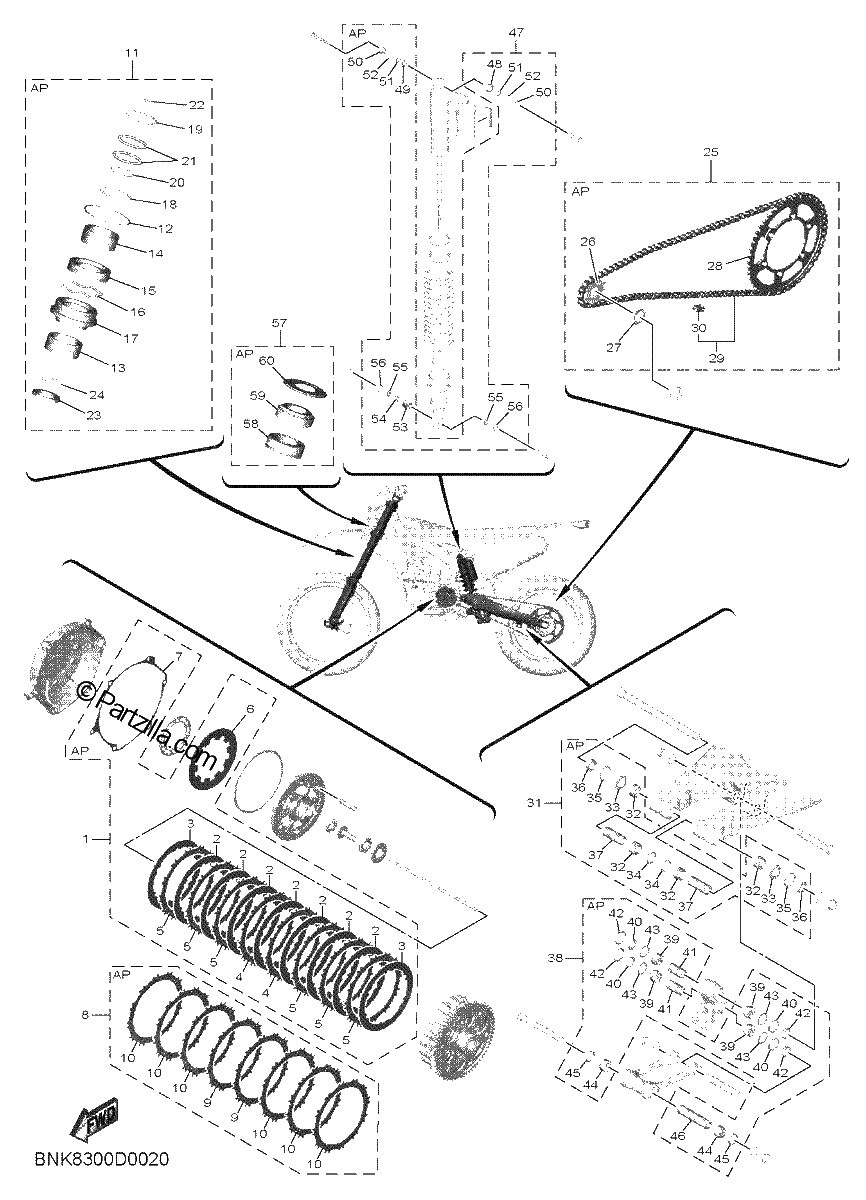

Diagrama de 3 MAINTENANCE PARTS KIT

Repuestos

#1
BNK-W001G-00-00
CLUTCH PLATE KIT
$423.19¢211 594
1
#2
BHR-16324-00-00
PLATE, CLUTCH 1
$9.12¢4 560
1
#3
BHR-16325-00-00
PLATE, CLUTCH 2
$8.97¢4 485
1
#4
BNK-16321-00-00
PLATE, FRICTION
$43.60¢21 798
1
#5
BNK-16330-00-00
PLATE, FRICTION 2
$42.29¢21 143
1
#6
BHR-16334-00-00
SPRING, CLUTCH 2
$75.93¢37 967
1
#7
BHR-15453-00-00
GASKET
$15.29¢7 648
1
#8
BNK-W001M-00-00
FRICTION PLATE KIT
$323.14¢161 569
1
#9
BNK-16321-00-00
PLATE, FRICTION
$43.60¢21 798
1
#10
BNK-16330-00-00
PLATE, FRICTION 2
$42.29¢21 143
1
#11
BHR-W003B-00-00
FORK SEALS KIT
$53.93¢26 967
1
#12
17D-23153-00-00
RING, SNAP
$4.58¢2 289
1
#13
5XE-23171-L0-00
PISTON, FRONT FORK
$22.67¢11 333
1
#14
5XE-23125-L0-00
METAL, SLIDE 1
$23.02¢11 511
1
#15
B29-23145-00-00
Oil Seal
$21.75¢10 873
1
#16
5XE-23153-L0-00
RING, SNAP
$7.04¢3 519
1
#17
BHR-23144-00-00
SEAL, DUST
$21.87¢10 936
1
#18
1C3-23147-L1-00
O-RING
$3.51¢1 754
1
#19
1C3-23188-L2-00
O-RING
$7.61¢3 807
1
#20
1C3-23188-P0-00
O-RING
$6.51¢3 254
1
#21
1AE-23147-01-00
O-RING
$4.80¢2 398
1
#22
1C3-23188-R1-00
O-RING
$3.00¢1 501
1
#23
2HH-23158-L0-00
GASKET
$10.43¢5 215
1
#24
276-23114-02-00
GASKET
$3.68¢1 840
1
#25
BDB-W001A-00-00
CHAIN & SPROCKET KIT
$206.99¢103 494
1
#26
9383E-13233-00
SPROCKET, DRIVE (13T)
$21.75¢10 873
1
#27
90215-21003-00
Washer, Lock
$5.90¢2 950
1
#28
5TJ-25450-80-00
SPROCKET, DRIVEN (50T) | STD
$65.64¢32 821
1
#29
9Y582-50113-00
CHAIN
$245.05¢122 527
1
#30
94682-50021-00
JOINT, CHAIN
$15.72¢7 860
1
#31
BR9-W002C-00-00
SWING ARM PIVOT BEARING KIT
$147.19¢73 594
1
#32
93317-22262-00
BEARING
$37.40¢18 699
1
#33
93342-22217-00
BEARING
$40.01¢20 004
1
#34
93106-22002-00
OIL SEAL
$10.21¢5 106
1
#35
93109-28043-00
OIL SEAL,SDO-TYPE
$10.55¢5 273
1
#36
90387-17019-00
Collar
$10.57¢5 284
1
#37
90387-1714S-00
Collar
$40.74¢20 372
1
#38
33D-W002E-00-00
SHOCK LINKAGE BEARING KIT
$192.25¢96 123
1
#39
93315-32166-00
BEARING
$26.13¢13 064
1
#40
93109-25001-00
O-Ring
$10.87¢5 434
1
#41
90387-16026-00
Collar
$28.27¢14 133
1
#42
90209-16011-00
WASHER
$15.00¢7 498
1
#43
90201-21014-00
WASHER, plate
$6.87¢3 433
1
#44
93315-32166-00
BEARING
$26.13¢13 064
1
#45
93109-21001-00
O-Ring
$10.48¢5 238
1
#46
90387-14016-00
Collar
$30.16¢15 082
1
#47
1SS-W002G-00-00
SHOCK BEARING KIT
$193.72¢96 859
1
#48
4JX-22226-00-00
BUSH,RR SHK ASY
$53.77¢26 887
1
#49
5DH-23183-00-00
Circlip
$5.40¢2 702
1
#50
1C3-22253-50-00
COLLAR, DISTANCE
$48.00¢24 001
1
#51
3JE-22475-00-00
SEAL,DUST LOW.
$11.59¢5 796
1
#52
4EW-22474-00-00
SEAL, RING
$6.51¢3 254
1
#53
5UN-22176-00-00
BEARING
$30.57¢15 283
1
#54
5MV-22184-00-00
Bush
$23.48¢11 742
1
#55
1C3-22253-L1-00
COLLAR, DISTANCE
$49.04¢24 518
1
#56
5NY-22475-00-00
SEAL, dust
$12.21¢6 106
1
#57
BNK-W000B-00-00
STEERING BEARING KIT
$149.94¢74 968
1
#58
93332-00081-00
BEARING
$55.67¢27 836
1
#59
93332-00078-00
BEARING
$68.93¢34 466
1
#60
17D-23416-50-00
COVER, BALL RACE 2
$33.70¢16 848
1
