RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

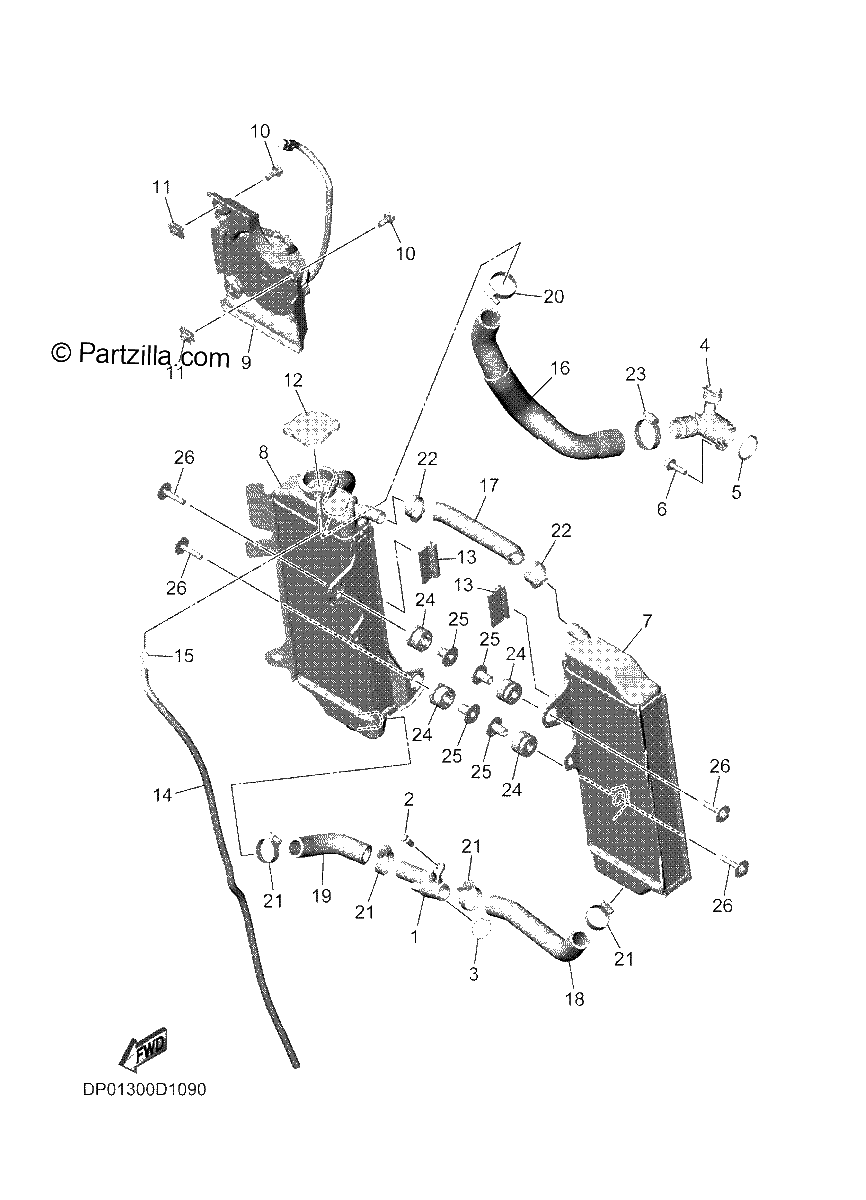

Diagrama de RADIATOR HOSE

Repuestos

#1
BHR-12482-00-00
PIPE 2
$80.99¢40 494
1
#2
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.81¢406
1
#3
93210-20003-00
O-RING
$7.48¢3 738
1
#4
D03-12446-00-00
JOINT
$60.04¢30 019
1
#5
93210-24253-00
O-RING | INCL. IN BOTTOM END GASKET KIT
$5.93¢2 963
1
#6
95E32-06020-00
BOLT, FLANGE DEEP RECESS
$0.96¢481
1
#7
BHR-1240A-00-00
RADIATOR ASSY
$241.15¢120 575
1
#8
BNK-12461-00-00
RADIATOR COMP
$289.27¢144 638
1
#9
BNK-12405-00-00
BLOWER ASSY
$43.49¢21 744
1
#10
2GB-12615-00-00
BOLT
$3.89¢1 944
1
#11
5SL-12671-00-00
NUT 1
$6.19¢3 094
1
#12
5SL-12462-01-00
CAP, RADIATOR
$37.52¢18 763
1
#13
33D-12465-00-00
DAMPER, RADIATOR
$13.14¢6 569
1
#14
BHR-12463-00-00
PIPE, BREATHER
$6.18¢3 088
1
#15
90467-08003-00
CLIP
$7.50¢3 750
1
#16
BNK-12576-00-00
HOSE 1
$34.20¢17 100
1
#17
BR9-12577-00-00
HOSE 2
$6.11¢3 056
1
#18
BHR-12578-00-00
HOSE 3
$12.80¢6 400
1
#19
BHR-12579-00-00
HOSE 4
$9.93¢4 963
1
#20
90450-28001-00
HOSE CLAMP ASSY
$14.94¢7 469
1
#21
90450-22M14-00
HOSE CLAMP ASSY
$16.43¢8 213
1
#22
90450-18M09-00
HOSE CLAMP ASSY
$12.54¢6 269
1
#23
90450-32003-00
HOSE CLAMP ASSY
$16.85¢8 425
1
#24
90480-15012-00
GROMMET
$6.81¢3 406
1
#25
90387-06065-00
COLLAR
$11.39¢5 694
1
#26
90119-06262-00
BOLT, WITH WASHER
$7.48¢3 738
1
