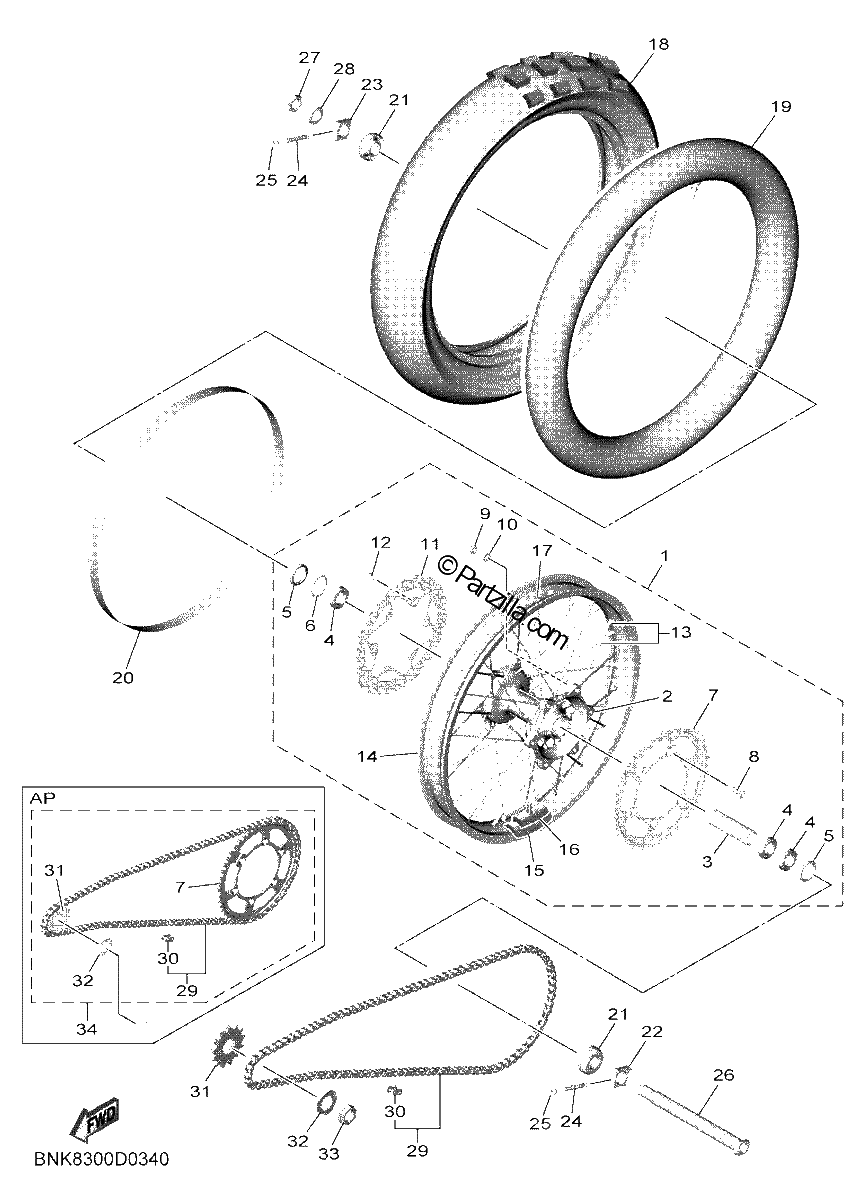

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR WHEEL SUB-ASSY
$677.01¢338 506
#2
HUB, REAR
$265.96¢132 981
#3
SPACER, bearing
$46.33¢23 163
#4
BEARING
$25.53¢12 763
#5
OIL SEAL,SD-TYPE (replaces 93102-32337-00)
$19.44¢9 719
#6
Circlip
$7.43¢3 713
#7
SPROCKET, DRIVEN (48T) | AP
$53.46¢26 731
#7
SPROCKET, DRIVEN (50T) | STD
$71.35¢35 675
#7
SPROCKET, DRIVEN (52T) | AP
$98.20¢49 100
#7
SPROCKET, DRIVEN (51T) | STD
$107.88¢53 938
#8
bolt
$3.39¢1 694
#9
NUT, SELF-LOCKING
$7.16¢3 581
#10
WASHER, plate
$6.88¢3 438
#11
DISK, REAR BRAKE 2
$139.01¢69 506
#12
SCREW, COUNTERSUNK
$3.17¢1 588
#13
SPOKE SET, REAR
$147.84¢73 919
#14
RIM (215-18)
$453.43¢226 713
#15
SPACER,BEAD
$39.71¢19 856
#16
Damper
$7.91¢3 956
#17
GROMMET (replaces 90480-08608-00)
$8.06¢4 031
#18
TIRE (120/90-18 65M MX33)
$224.99¢112 494
#19
TUBE (110-140/80-100-18 M/C) | BRIDGESTONE
$39.67¢19 838
#20
BAND, RIM (2.50-18) | BRIDGESTONE
$19.06¢9 531
#21
COLLAR ASSY
$41.14¢20 569
#22
PULLER, CHAIN 1
$34.84¢17 419
#23
PULLER, CHAIN 2
$32.56¢16 281
#24
bolt
$8.01¢4 006
#25
Nut
$6.23¢3 113
#26
AXLE, WHEEL
$94.56¢47 281
#27
NUT, SELF-LOCKING
$32.30¢16 150
#28
WASHER, plate
$7.03¢3 513
#29
CHAIN
$266.36¢133 181
#30
JOINT, CHAIN
$17.09¢8 544
#31
SPROCKET, DRIVE (13T)
$23.64¢11 819
#32
Washer, Lock
$6.41¢3 206
#33
NUT
$16.98¢8 488
#34
CHAIN & SPROCKET KIT
$224.99¢112 494
