CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

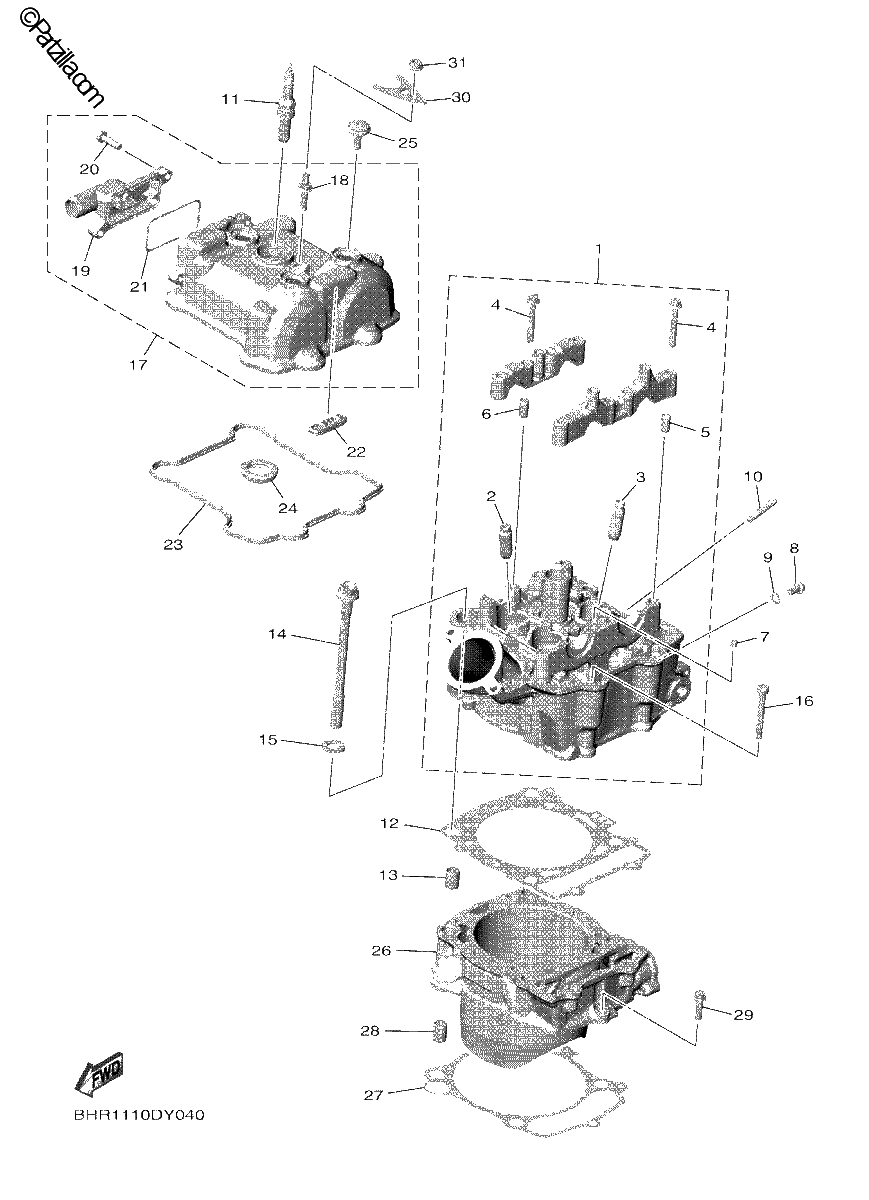

Diagrama de CYLINDER

Repuestos

#1
BHR-11102-00-00
CYLINDER HEAD ASSY
$1365.65¢682 825
1
#2
B2W-11133-10-00
GUIDE, VALVE 1
$96.14¢48 069
1
#3
5PS-11134-10-00
GUIDE, VALVE 2
$80.38¢40 188
1
#4
90105-06027-00
BOLT, FLANGE
$7.67¢3 838
1
#5
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#6
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#7
BHR-15138-00-00
NOZZLE 1
$5.63¢2 813
1
#8
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.91¢456
1
#9
90430-06014-00
GASKET
$8.25¢4 125
1
#10
90116-06037-00
BOLT, stud
$4.03¢2 013
1
#11
LMA-R8G00-00-00
LMAR8 NGK SPLUG 10PK (replaces 94701-00434-00)
$14.72¢7 363
1
#12
BHR-11181-00-00
GASKET, CYLINDER HEAD 1
$29.81¢14 906
1
#13
93612-16254-00
PIN,DOWEL
$5.19¢2 594
1
#14
90105-10494-00
BOLT, FLANGE
$22.29¢11 144
1
#15
90201-10025-00
WASHER, plate
$7.41¢3 706
1
#16
91312-06045-00
BOLT
$4.00¢2 000
1
#17
BHR-11190-00-00
COVER, CYLINDER HEAD 1
$450.26¢225 131
1
#18
90116-06049-00
BOLT, STUD (replaces 90116-06048-00)
$5.51¢2 756
1
#19
BDB-11168-00-00
. COVER, BREATHER
$36.85¢18 425
1
#20
95E32-06020-00
BOLT, FLANGE DEEP RECESS
$0.96¢481
1
#21
B2W-11169-00-00
GASKET, BREATHER COVER
$8.92¢4 462
1
#22
B2W-12241-00-00
GUIDE, STOPPER 2
$10.54¢5 269
1
#23
BHR-11193-00-00
GASKET, HEAD COVER 1
$24.31¢12 156
1
#24
1SM-11194-00-00
GASKET, HEAD COVER 2
$17.01¢8 506
1
#25
5UM-1119E-00-00
BOLT, COVER HEAD
$13.06¢6 531
1
#26
BHR-11311-00-00
CYLINDER 1
$804.99¢402 494
1
#27
BHR-11351-00-00
GASKET, CYLINDER
$18.00¢9 000
1
#28
93612-16254-00
PIN,DOWEL
$5.19¢2 594
1
#29
90110-06439-00
BOLT, HEXAGON SOCKET HEAD
$3.89¢1 944
1
#30
BR9-11395-00-00
HOLDER
$5.07¢2 537
1
#31
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
