TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

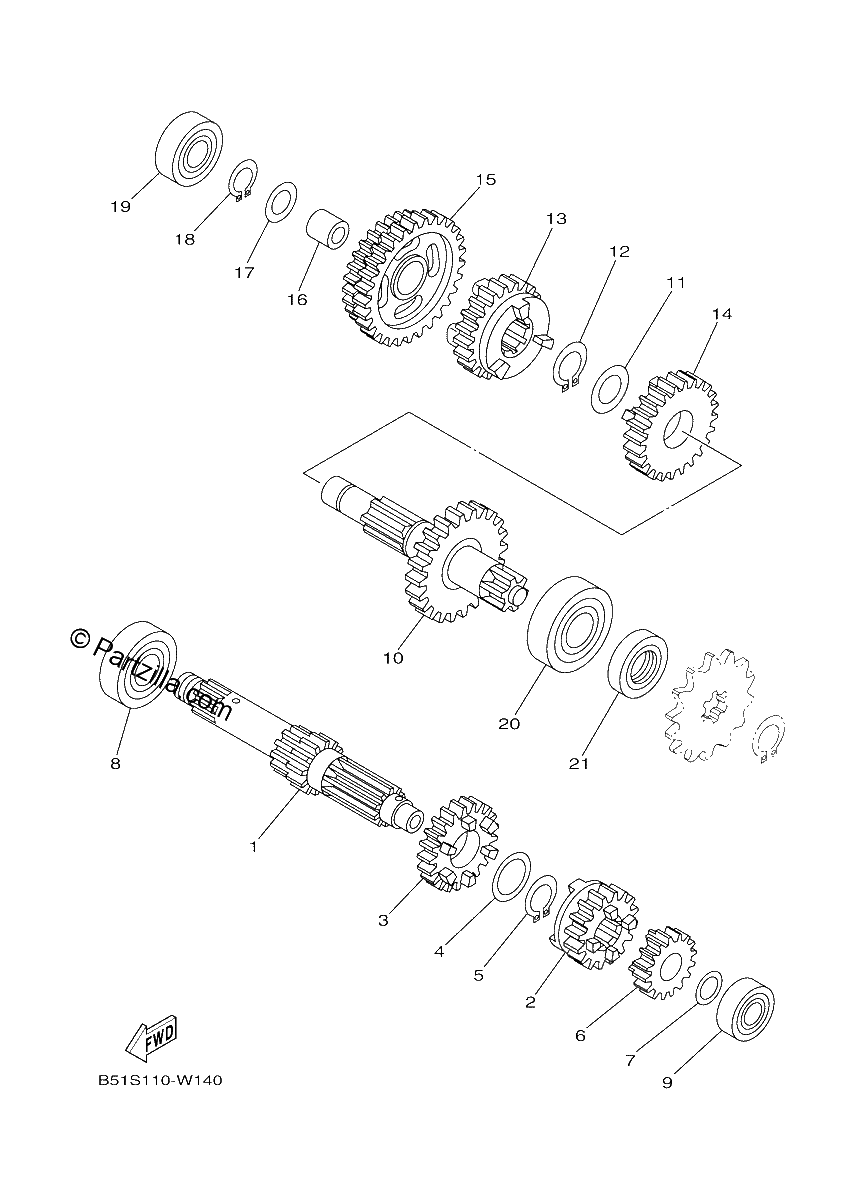

Diagrama de TRANSMISSION

Repuestos

#1
4S9-E7411-00-00
AXLE, MAIN (12T) (replaces 4ST-E7411-00-00)
$35.10¢17 550
1
#2
5TP-E7131-00-00
GEAR, 3RD PINION (JU
$35.40¢17 700
1
#3
5TP-E7141-00-00
GEAR, 4TH PINION (JU
$39.74¢19 869
1
#4
90201-20266-00
WASHER, PLATE (T=1.0)
$9.78¢4 888
1
#5
93410-20038-00
CIRCLIP
$3.11¢1 556
1
#6
5TP-E7121-00-00
GEAR, 2ND PINION (JU
$37.94¢18 969
1
#7
90201-12166-00
WASHER, PLATE (replaces 90201-128C9-00)
$7.48¢3 738
1
#8
93306-203YR-00
BEARING
$43.98¢21 988
1
#9
93306-00105-00
BEARING
$30.26¢15 131
1
#10
5TP-E7402-00-00
DRIVE AXLE ASSY (JUP
$471.24¢235 619
1
#11
90201-20266-00
WASHER, PLATE (T=1.0)
$9.78¢4 888
1
#12
93410-20038-00
CIRCLIP
$3.11¢1 556
1
#13
5TP-E7241-00-00
GEAR, 4TH WHEEL (JUP
$25.25¢12 625
1
#14
5TP-E7231-00-00
GEAR, 3RD WHEEL (JUP
$29.28¢14 638
1
#15
5TP-E7211-00-00
GEAR, 1ST WHEEL (JUP
$75.74¢37 869
1
#16
90387-1503D-00
Collar
$19.35¢9 675
1
#17
90201-154E8-00
WASHER, PLATE (T=1.0)
$7.34¢3 669
1
#18
99009-15400-00
CIRCLIP (55X)
$6.25¢3 125
1
#19
93306-20203-00
BEARING
$27.65¢13 825
1
#20
93306-254Y1-00
BEARING
$13.22¢6 613
1
#21
93102-20892-00
Oil Seal
$1.46¢731
1
