CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

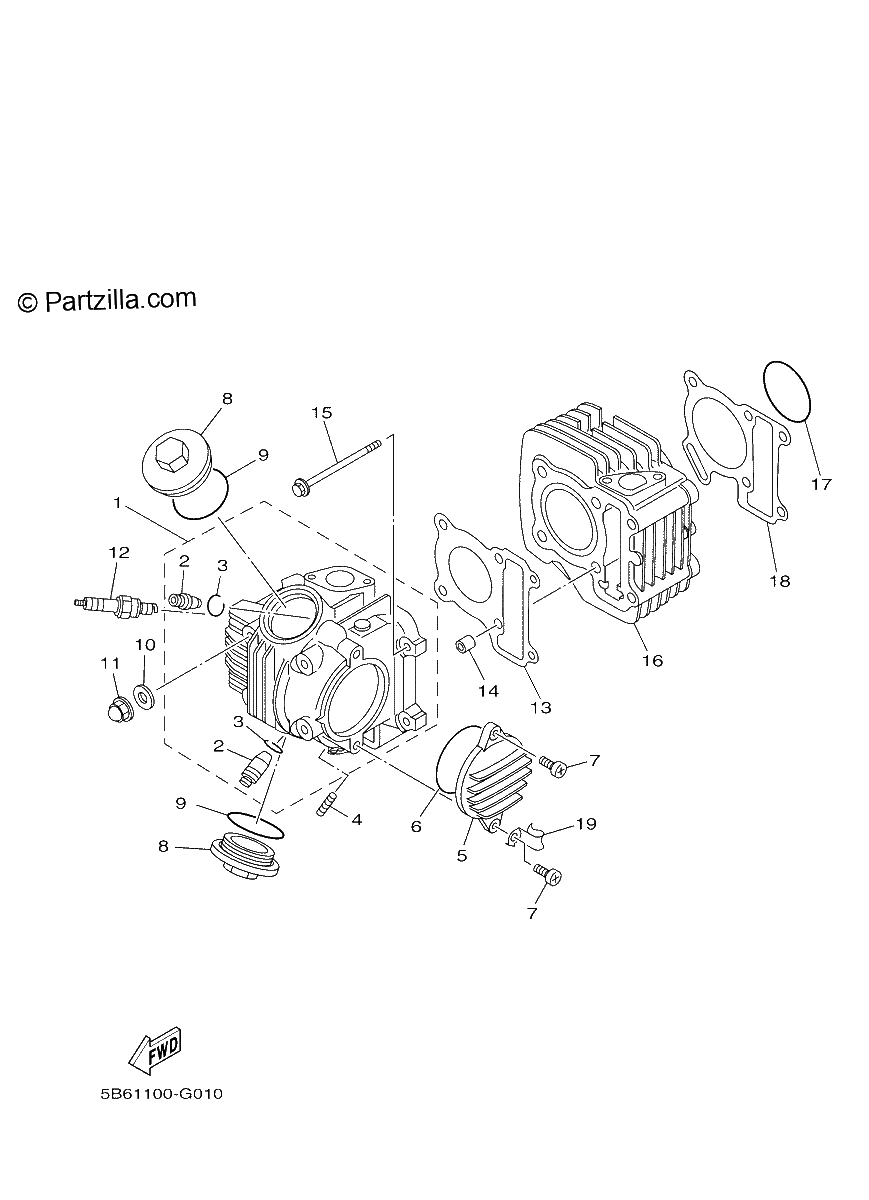

Diagrama de CYLINDER HEAD

Repuestos

#1
5TP-E1111-30-00
HEAD, CYLINDER 1
$253.23¢126 613
1
#2
4ST-11134-11-00
GUIDE, VALVE 2
$82.99¢41 494
1
#3
93440-10153-00
CIRCLIP
$1.99¢994
1
#4
22F-14651-00-00
BOLT, STUD
$7.28¢3 638
1
#5
4ST-E1185-01-00
COVER, CYLINDER HEAD SIDE 1
$6.81¢3 406
1
#6
93210-63556-00
O-RING
$8.11¢4 056
1
#7
98507-06016-00
SCREW, PAN HEAD
$2.90¢1 450
1
#8
4ST-E1186-00-00
COVER, CYLINDER HEAD SIDE 2
$9.28¢4 638
1
#9
93210-44704-00
O-RING
$6.81¢3 406
1
#10
90201-080L7-00
WASHER, PLATE
$4.07¢2 037
1
#11
90176-08026-00
NUT, CROWN
$13.85¢6 925
1
#12
CR6-HSA00-00-00
PLUG SPARK (NGK CR6HSA)
$6.27¢3 137
1
#13
5TN-E1181-00-00
GASKET, CYLINDER HEA
$22.69¢11 344
1
#14
91810-14809-00
PIN, DOWEL
$3.01¢1 506
1
#15
95027-06090-00
BOLT, FLANGE
$2.26¢1 131
1
#16
5TP-E1310-01-00
CYLINDER
$456.02¢228 013
1
#17
93210-56459-00
O-RING
$13.14¢6 569
1
#18
4ST-E1351-02-00
GASKET, CYLINDER
$6.14¢3 069
1
#19
90465-08230-00
CLAMP
$4.60¢2 300
1
