TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

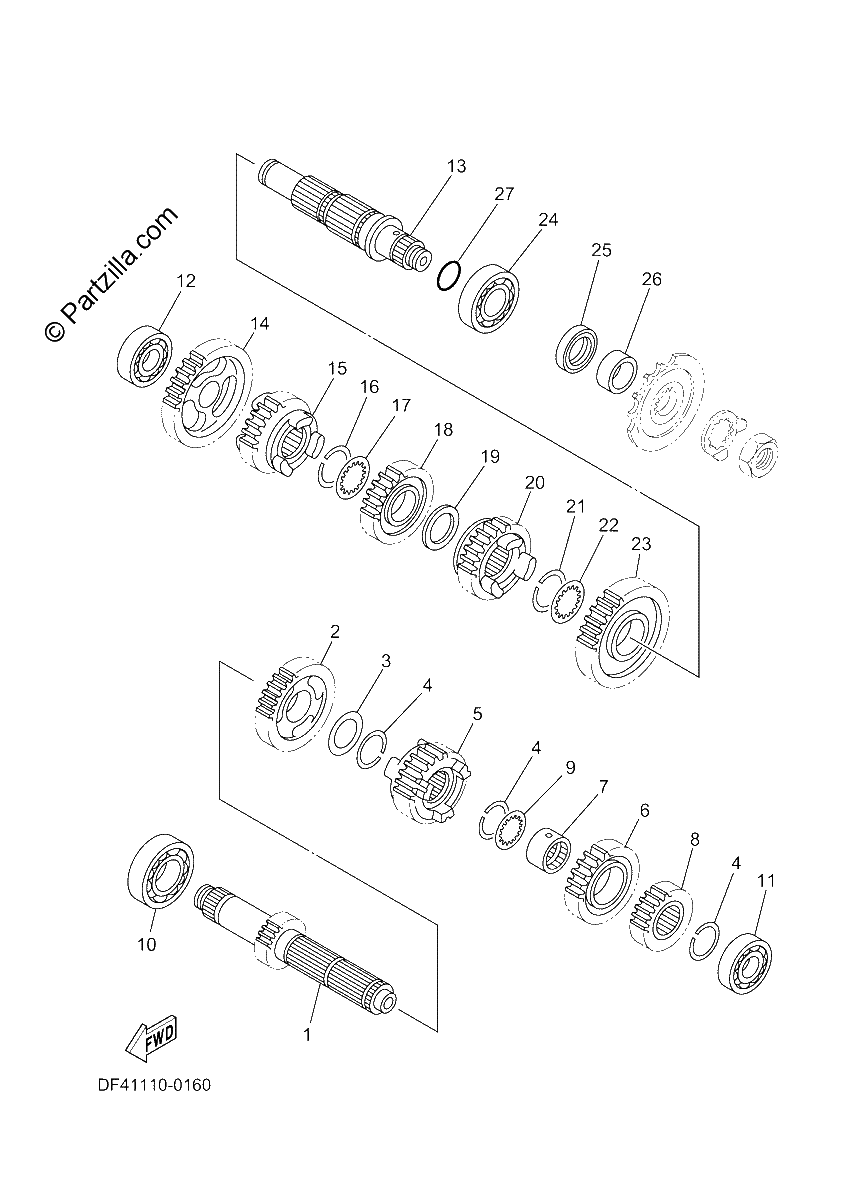

Diagrama de TRANSMISSION

Repuestos

#1
5BE-17411-00-00
AXLE, MAIN (14T)
$145.88¢72 939
1
#2
BF1-17151-00-00
GEAR, 5TH PINION (25T)
$69.21¢34 604
1
#3
90201-253K0-00
WASHER, PLATE (T=1.0)
$6.76¢3 381
1
#4
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#5
5BF-17131-21-00
GEAR, 3RD PINION (16T)
$180.52¢90 258
1
#6
5BF-17141-20-00
GEAR, 4TH PINION(20T)
$182.85¢91 425
1
#7
90387-2113G-00
COLLAR
$39.77¢19 883
1
#8
5JG-17121-10-00
GEAR, 2ND PINION (15T)
$79.73¢39 865
1
#9
90209-21332-00
WASHER
$7.38¢3 691
1
#10
93306-20540-00
BEARING
$54.61¢27 307
1
#11
93306-00442-00
BEARING
$38.54¢19 268
1
#12
93306-00426-00
BEARING
$40.11¢20 056
1
#13
5BE-17402-00-00
DRIVE AXLE ASSY
$157.94¢78 971
1
#14
5BE-17211-00-00
GEAR, 1ST WHEEL (27T)
$124.41¢62 204
1
#15
BF1-17251-00-00
GEAR, 5TH WHEEL (21T)
$76.98¢38 491
1
#16
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#17
90209-21332-00
WASHER
$7.38¢3 691
1
#18
5BF-17231-00-00
GEAR, 3RD WHEEL (21T)
$141.76¢70 880
1
#19
90201-253K0-00
WASHER, PLATE (T=1.0)
$6.76¢3 381
1
#20
BF1-17241-00-00
GEAR, 4TH WHEEL (21T)
$106.86¢53 429
1
#21
93440-28062-00
CIRCLIP,OUTER
$7.30¢3 651
1
#22
90209-26348-00
WASHER
$10.57¢5 284
1
#23
5JG-17221-10-00
GEAR, 2ND WHEEL (23T)
$135.72¢67 861
1
#24
93306-20562-00
BEARING
$46.07¢23 034
1
#25
93102-32M07-00
OIL SEAL,SD-TYPE (replaces 93102-32337-00)
$17.88¢8 941
1
#26
90387-2515B-00
COLLAR
$19.72¢9 861
1
#27
93210-22298-00
O-RING
$7.19¢3 594
1
