FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

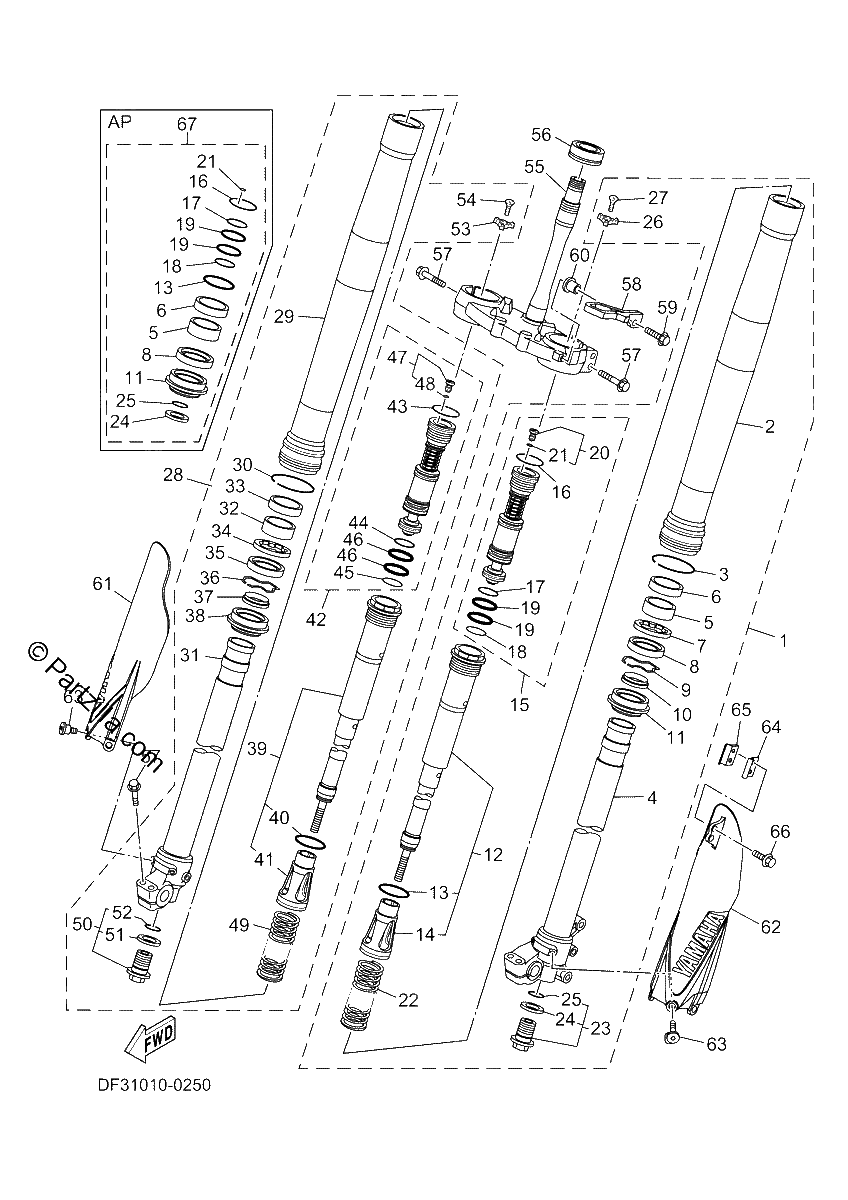

Diagrama de FRONT FORK

Repuestos

#1
DF4-23102-00-00
FRONT FORK ASSY (L.H)
$1641.24¢820 619
1
#2
1SS-23136-00-00
TUBE, OUTER
$800.17¢400 088
1
#3
17D-23153-00-00
RING, SNAP
$4.97¢2 488
1
#4
BCR-23120-00-00
INNER TUBE COMP2
$430.85¢215 425
1
#5
5XE-23171-L0-00
PISTON, FRONT FORK
$24.64¢12 319
1
#6
5XE-23125-L0-00
METAL, SLIDE 1
$25.02¢12 513
1
#7
5XC-23146-10-00
WASHER, OIL SEAL
$12.61¢6 306
1
#8
B29-23145-00-00
Oil Seal
$23.64¢11 819
1
#9
5XE-23153-L0-00
RING, SNAP
$7.65¢3 825
1
#10
B29-4381D-00-00
SCRAPER
$19.71¢9 856
1
#11
5XE-23144-L0-00
SEAL, DUST
$22.95¢11 475
1
#12
BRY-23170-00-00
CYLINDER COMP, FRONT FORK
$430.85¢215 425
1
#13
1C3-23147-L1-00
O-RING
$3.81¢1 906
1
#14
17D-23142-00-00
SEAT, SPRING UPPER
$84.49¢42 244
1
#15
DF4-2316A-00-00
VALVE COMP
$423.94¢211 969
1
#16
1C3-23188-L2-00
O-RING
$8.28¢4 138
1
#17
1C3-23188-N0-00
O-RING
$7.65¢3 825
1
#18
1C3-23188-P0-00
O-RING
$7.08¢3 538
1
#19
1AE-23147-01-00
O-RING
$5.21¢2 606
1
#20
1C3-23190-L1-00
AIR VALVE COMP
$23.89¢11 944
1
#21
1C3-23188-R1-00
O-RING
$3.26¢1 631
1
#22
B3J-23141-30-00
SPRING, FRONT FORK
$129.56¢64 781
1
#23
5XC-23111-01-00
BOLT, CAP
$82.40¢41 200
1
#24
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#25
276-23114-02-00
GASKET
$4.00¢2 000
1
#26
BHR-2319W-00-00
CAP
$10.86¢5 431
1
#27
1MC-23119-10-00
SCREW
$1.59¢794
1
#28
DF4-23103-00-00
FRONT FORK ASSY (R.H)
$1646.24¢823 119
1
#29
1SS-23136-00-00
TUBE, OUTER
$800.17¢400 088
1
#30
17D-23153-00-00
RING, SNAP
$4.97¢2 488
1
#31
BCR-23110-00-00
INNER TUBE COMP1
$430.85¢215 425
1
#32
5XE-23171-L0-00
PISTON, FRONT FORK
$24.64¢12 319
1
#33
5XE-23125-L0-00
METAL, SLIDE 1
$25.02¢12 513
1
#34
5XC-23146-10-00
WASHER, OIL SEAL
$12.61¢6 306
1
#35
B29-23145-00-00
Oil Seal
$23.64¢11 819
1
#36
5XE-23153-L0-00
RING, SNAP
$7.65¢3 825
1
#37
B29-4381D-00-00
SCRAPER
$19.71¢9 856
1
#38
5XE-23144-L0-00
SEAL, DUST
$22.95¢11 475
1
#39
BRY-23170-00-00
CYLINDER COMP, FRONT FORK
$430.85¢215 425
1
#40
1C3-23147-L1-00
O-RING
$3.81¢1 906
1
#41
17D-23142-00-00
SEAT, SPRING UPPER
$84.49¢42 244
1
#42
DF4-2316A-00-00
VALVE COMP
$423.94¢211 969
1
#43
1C3-23188-L2-00
O-RING
$8.28¢4 138
1
#44
1C3-23188-N0-00
O-RING
$7.65¢3 825
1
#45
1C3-23188-P0-00
O-RING
$7.08¢3 538
1
#46
1AE-23147-01-00
O-RING
$5.21¢2 606
1
#47
1C3-23190-L1-00
AIR VALVE COMP
$23.89¢11 944
1
#48
1C3-23188-R1-00
O-RING
$3.26¢1 631
1
#49
B3J-23141-30-00
SPRING, FRONT FORK
$129.56¢64 781
1
#50
5XC-23111-01-00
BOLT, CAP
$82.40¢41 200
1
#51
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#52
276-23114-02-00
GASKET
$4.00¢2 000
1
#53
BHR-2319W-00-00
CAP
$10.86¢5 431
1
#54
1MC-23119-10-00
SCREW
$1.59¢794
1
#55
1SS-23340-10-00
UNDER BRACKET COMP.
$766.24¢383 119
1
#56
93332-00081-00
BEARING
$60.51¢30 256
1
#57
95E34-08035-00
BOLT, FLANGE DEEP RECESS
$2.94¢1 469
1
#58
BF1-23389-00-00
GUIDE, CABLE
$7.94¢3 969
1
#59
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.81¢406
1
#60
90387-06104-00
Collar
$1.57¢788
1
#61
17D-2315J-K0-00
PROTECTOR 2
$19.55¢9 775
1
#62
17D-2315H-K0-00
PROTECTOR 1
$25.95¢12 975
1
#63
90109-06232-00
BOLT
$3.93¢1 963
1
#64
17D-23466-00-00
CLAMP
$19.71¢9 856
1
#65
17D-23467-00-00
CLAMP
$26.99¢13 494
1
#66
90105-06170-00
BOLT, FLANGE
$5.05¢2 525
1
#67
BCR-W003B-00-00
FORK SEALS KIT
$93.74¢46 869
1
