FRAME

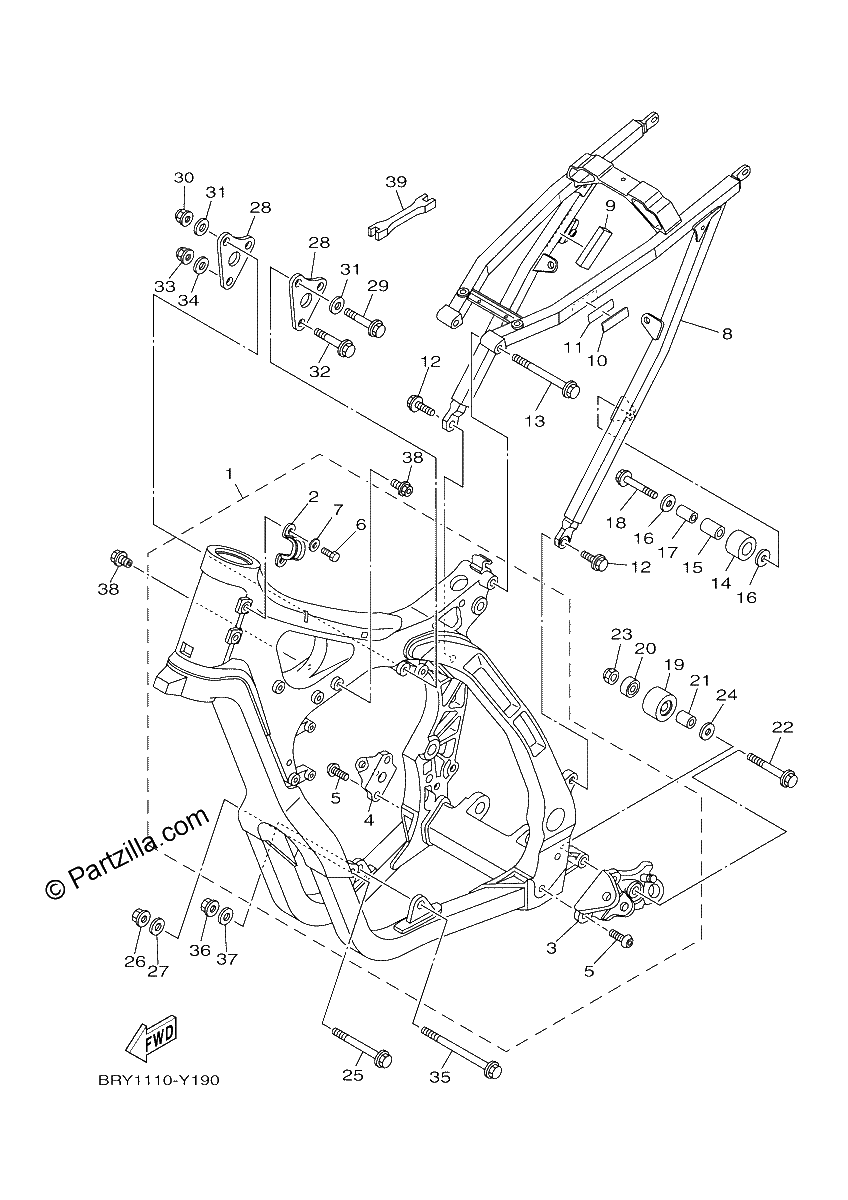

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FRAME COMP.
$3383.74¢1 691 869
#2
CLAMP, WIRE HARNESS 2
$10.49¢5 244
#3
BRACKET, FOOTREST
$354.65¢177 325
#4
BRACKET, FOOTREST
$38.63¢19 313
#5
SCREW
$6.49¢3 244
#6
BOLT
$7.34¢3 669
#7
WASHER, PLATE
$0.66¢331
#8
REAR FRAME COMP
$473.81¢236 906
#9
SEAL
$2.46¢1 231
#10
PROTECTOR
$2.39¢1 194
#11
TAPE, 1
$6.85¢3 425
#12
BOLT, FLANGE
$6.03¢3 013
#13
BOLT, FLANGE
$4.59¢2 294
#14
TENSIONER
$37.55¢18 775
#15
BUSH
$4.24¢2 119
#16
WASHER, PLATE
$5.66¢2 831
#17
COLLAR
$8.03¢4 013
#18
BOLT, FLANGE DEEP RECESS
$0.93¢463
#19
TENSIONER
$46.22¢23 112
#20
BEARING
$13.31¢6 656
#21
COLLAR
$9.91¢4 956
#22
BOLT, FLANGE DEEP RECESS
$2.56¢1 281
#23
NUT, U
$8.09¢4 044
#24
WASHER, plate
$6.88¢3 438
#25
BOLT, FLANGE
$10.30¢5 150
#26
NUT,SPEC'L SHAPE
$9.22¢4 613
#27
WASHER (replaces 92902-10200-00)
$3.41¢1 706
#28
BRACKET, REAR UPPER 1
$24.05¢12 025
#29
BOLT, FLANGE
$4.94¢2 469
#30
NUT(4KM)
$6.78¢3 388
#31
WASHER, PLATE
$7.35¢3 675
#32
BOLT, FLANGE
$6.15¢3 075
#33
NUT,SPEC'L SHAPE
$9.22¢4 613
#34
WASHER (replaces 92902-10200-00)
$3.41¢1 706
#35
BOLT, FLANGE
$11.10¢5 550
#36
NUT,SPEC'L SHAPE
$9.22¢4 613
#37
WASHER (replaces 92902-10200-00)
$3.41¢1 706
#38
NUT
$17.46¢8 731
#39
WRENCH, HEXAGON
$34.86¢17 431
