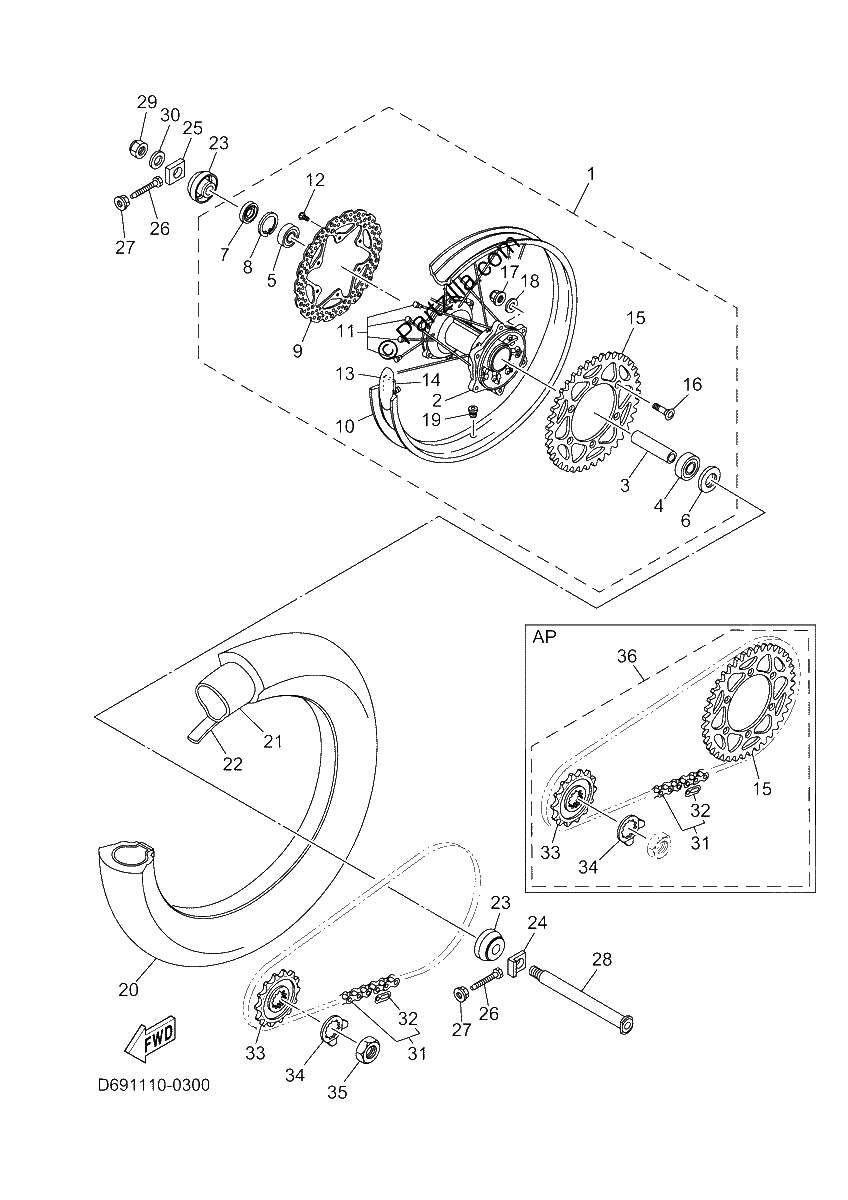

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR WHEEL SUB-ASSY
$649.99¢324 994
#2
HUB, REAR
$318.70¢159 350
#3
SPACER, BEARING
$51.06¢25 531
#4
BEARING
$78.49¢39 244
#5
BEARING
$40.19¢20 094
#6
OIL SEAL
$11.92¢5 962
#7
OIL SEAL
$9.45¢4 725
#8
CIRCLIP
$2.97¢1 487
#9
DISK, REAR BRAKE 2
$139.01¢69 506
#10
RIM (2.15-18)
$521.15¢260 575
#11
SPOKE SET, REAR
$210.21¢105 106
#12
SCREW, COUNTERSUNK
$3.17¢1 588
#13
SPACER,BEAD
$39.71¢19 856
#14
Damper
$7.91¢3 956
#15
SPROCKET, DRIVEN (47T)
$85.10¢42 550
#15
SPROCKET, DRIVEN (49T)
$101.24¢50 619
#15
SPROCKET, DRIVEN (50T)
$55.67¢27 838
#15
SPROCKET, DRIVEN (48T)
$108.60¢54 300
#15
SPROCKET, DRIVEN (51T)
$98.74¢49 369
#15
SPROCKET, DRIVEN (52T)
$112.49¢56 244
#16
bolt
$3.39¢1 694
#17
NUT, SELF-LOCKING
$7.16¢3 581
#18
WASHER, plate
$6.88¢3 438
#19
GROMMET (replaces 90480-08608-00)
$8.06¢4 031
#20
TIRE (110/100-18 64M MX33)
$212.49¢106 244
#21
TUBE (110-140/80-100-18 M/C) | BRIDGESTONE
$39.67¢19 838
#22
BAND, RIM (2.50-18) | BRIDGESTONE
$19.06¢9 531
#23
COLLAR ASSY
$34.76¢17 381
#24
PULLER, CHAIN 1
$24.16¢12 081
#25
PULLER, CHAIN 2
$29.69¢14 844
#26
bolt
$8.01¢4 006
#27
Nut
$6.23¢3 113
#28
AXLE, WHEEL
$97.96¢48 981
#29
NUT, SELF-LOCKING
$27.00¢13 500
#30
WASHER, PLATE
$9.14¢4 569
#31
CHAIN
$266.36¢133 181
#32
JOINT, CHAIN
$17.09¢8 544
#33
SPROCKET, DRIVE (13T) | AP
$23.69¢11 844
#33
SPROCKET, DRIVE (14T) | STD
$25.01¢12 506
#34
WASHER, LOCK
$13.25¢6 625
#35
NUT
$11.20¢5 600
#36
CHAIN & SPROCKET KIT
$205.66¢102 831
