TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

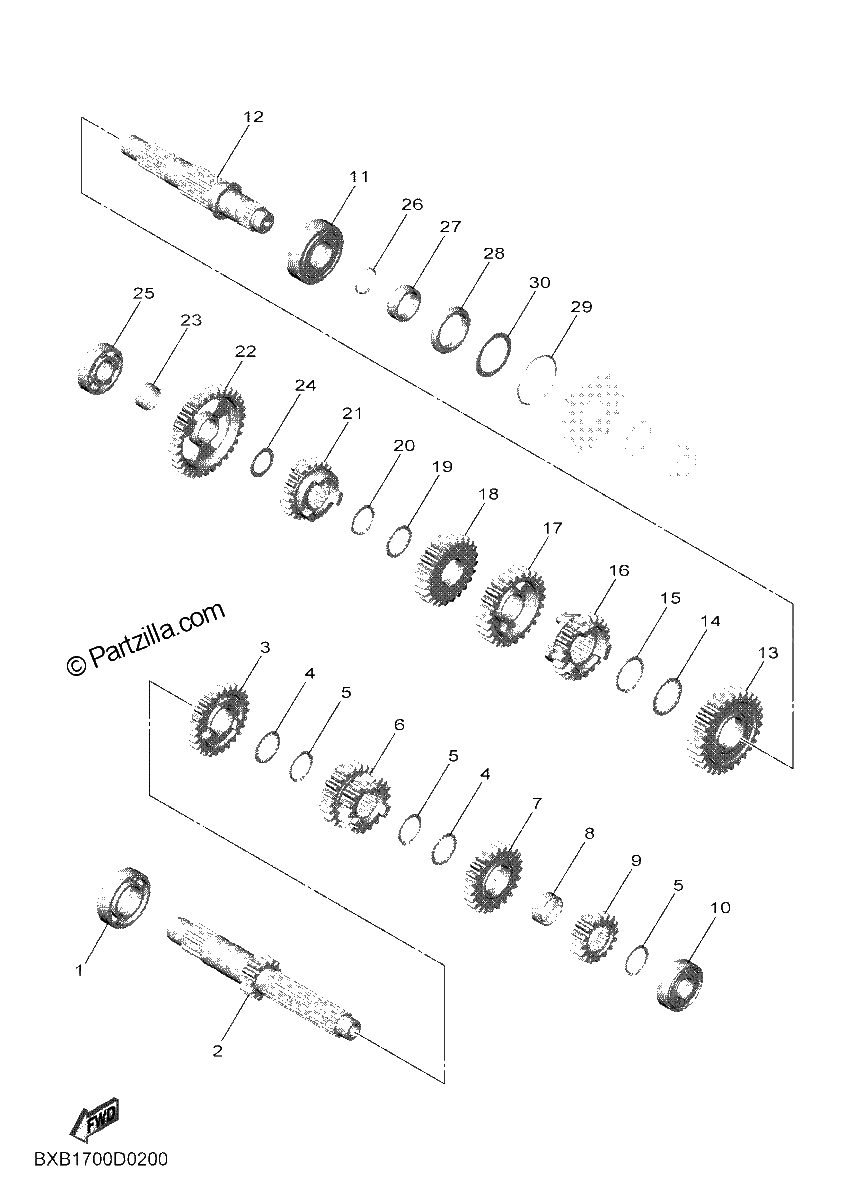

Diagrama de TRANSMISSION

Repuestos

#1
93306-00525-00
BEARING
$22.83¢11 414
1
#2
BAJ-17411-00-00
Axle, Main
$139.21¢69 604
1
#3
BAJ-17161-10-00
GEAR, 6TH PINION (27T)
$101.07¢50 537
1
#4
90209-20008-00
WASHER
$9.40¢4 698
1
#5
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#6
BAJ-17131-10-00
GEAR, 3RD PINION (18T/21T)
$225.54¢112 769
1
#7
BAJ-17151-10-00
GEAR, 5TH PINION (23T)
$89.94¢44 971
1
#8
90387-20006-00
Collar
$29.12¢14 559
1
#9
BAJ-17121-00-00
GEAR, 2ND PINION
$110.85¢55 424
1
#10
93306-20336-00
BEARING
$29.81¢14 904
1
#11
93306-27209-00
BEARING
$75.60¢37 800
1
#12
BAJ-1742A-00-00
DRIVE AXLE ASSY.,2
$195.06¢97 532
1
#13
BAJ-17221-00-00
GEAR, 2ND WHEEL
$130.39¢65 193
1
#14
90209-23012-00
WASHER
$5.51¢2 754
1
#15
93410-26067-00
CIRCLIP,S-TYPE
$8.13¢4 065
1
#16
BAJ-17251-10-00
GEAR, 5TH WHEEL (22T)
$150.82¢75 411
1
#17
BAJ-17231-00-00
GEAR, 3RD WHEEL
$99.44¢49 720
1
#18
BAJ-17241-00-00
GEAR, 4TH WHEEL
$95.17¢47 587
1
#19
90209-20008-00
WASHER
$9.40¢4 698
1
#20
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#21
BAJ-17261-10-00
GEAR, 6TH WHEEL (22T)
$141.66¢70 829
1
#22
BAJ-17211-00-00
GEAR, 1ST WHEEL
$96.47¢48 237
1
#23
90387-17012-00
COLLAR
$15.16¢7 578
1
#24
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#25
93306-20351-00
BEARING
$37.40¢18 699
1
#26
93210-196A4-00
O-RING
$2.14¢1 070
1
#27
90387-22036-00
Collar
$20.33¢10 166
1
#28
93102-28012-00
Oil Seal
$16.08¢8 038
1
#29
93450-40N50-00
Circlip
$1.36¢678
1
#30
90201-29M00-00
WASHER,PLATE
$5.96¢2 978
1
