CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

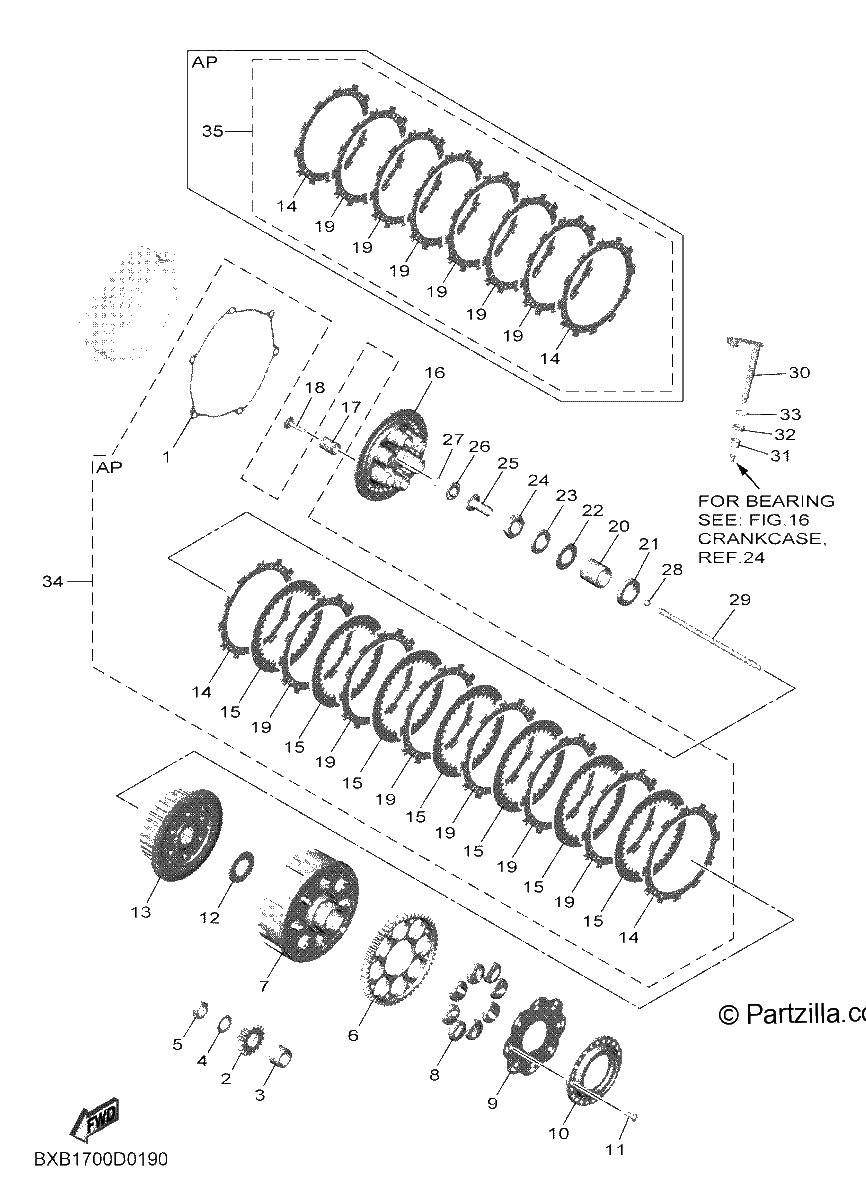

Diagrama de CLUTCH

Repuestos

#1
B7B-15453-00-00
Gasket
$15.39¢7 694
1
#2
B7B-16111-00-00
GEAR, PRIMARY DRIVE
$66.29¢33 144
1
#3
90387-19010-00
Collar
$41.06¢20 531
1
#4
90208-16019-00
WASHER, CONICAL SPRING
$7.34¢3 669
1
#5
90170-16010-00
NUT (replaces 90170-16009-00)
$13.60¢6 800
1
#6
B7B-16151-00-00
Gear, Primary Driven
$247.82¢123 913
1
#7
B7B-16310-10-00
CLUTCH HOUSING ASSY
$244.11¢122 056
1
#8
5XC-16165-00-00
ABSORBER
$9.55¢4 775
1
#9
B7B-16158-00-00
Plate, Side
$18.20¢9 100
1
#10
B7B-15570-10-00
STARTER CLUTCH ASSY
$296.90¢148 450
1
#11
90149-06161-00
SCREW
$7.76¢3 881
1
#12
5XD-16154-00-00
PLATE, THRUST 1
$15.59¢7 794
1
#13
B7B-16371-00-00
BOSS, CLUTCH
$152.47¢76 238
1
#14
B7B-16321-00-00
Plate, Friction
$21.74¢10 869
1
#15
BAJ-16325-00-00
PLATE, CLUTCH 2
$7.20¢3 600
1
#16
B7B-16351-00-00
PLATE, PRESSURE 1
$81.27¢40 637
1
#17
90501-230A9-00
SPRING, COMPRESSION
$4.81¢2 406
1
#18
90159-06061-00
SCREW, WITH WASHER
$2.76¢1 381
1
#19
2CR-16321-00-00
PLATE, FRICTION
$27.07¢13 538
1
#20
B7B-16181-00-00
SPACER 1
$35.17¢17 588
1
#21
90387-25038-00
Collar
$18.73¢9 363
1
#22
90201-20030-00
WASHER, PLATE
$7.31¢3 656
1
#23
90208-20001-00
WASHER, CONICAL SPRING
$17.49¢8 744
1
#24
90179-20022-00
NUT
$15.14¢7 569
1
#25
BR9-16356-00-00
ROD, PUSH 1
$85.34¢42 669
1
#26
93340-21209-00
BEARING, TRUST
$17.41¢8 706
1
#27
93440-10085-00
CIRCLIP
$7.34¢3 669
1
#28
93511-32027-00
BALL
$7.34¢3 669
1
#29
B7B-16357-00-00
ROD, PUSH 2
$36.34¢18 169
1
#30
B7B-16381-00-00
PUSH LEVER COMP.
$77.24¢38 619
1
#31
93317-11096-00
BEARING
$23.80¢11 900
1
#32
93102-10008-00
Oil Seal
$5.54¢2 769
1
#33
99009-18500-00
Circlip
$0.69¢344
1
#34
BAJ-W001G-10-00
CLUTCH PLATE KIT
$198.74¢99 369
1
#35
BAJ-W001M-00-00
FRICTION PLATE KIT
$162.24¢81 119
1
