CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

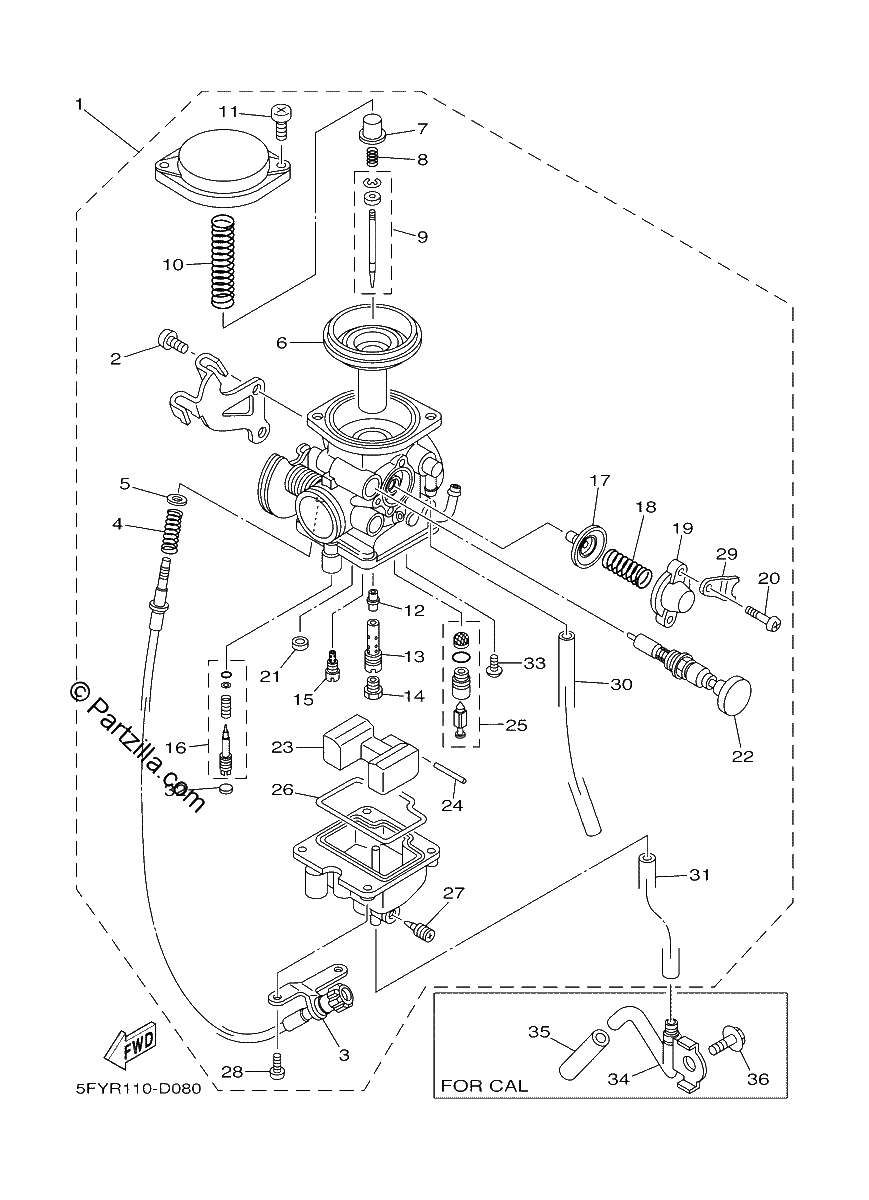

Diagrama de CARBURETOR

Repuestos

#1
5FY-14301-10-00
CARBURETOR ASSY 1 | FOR U49
$592.02¢296 013
1
#2
97885-05010-00
SCREW, PAN HEAD
$3.57¢1 787
1
#3
5LB-14321-00-00
SCREW, THROTTLE
$120.11¢60 056
1
#4
2JX-14333-00-00
SPRING, THROTTLE STOP
$7.91¢3 956
1
#5
5LB-14357-00-00
WASHER, PLAIN
$4.41¢2 206
1
#6
5LB-1434A-00-00
SUCTION PISTON ASSY
$104.30¢52 150
1
#7
5LB-14936-00-00
SEAT, SPRING
$23.34¢11 669
1
#8
5LB-14275-00-00
SPRING
$4.91¢2 456
1
#9
5FY-14336-00-00
NEEDLE
$31.43¢15 713
1
#10
5LB-14286-00-00
SPRING
$11.03¢5 513
1
#11
5LB-14216-00-00
SCREW
$5.88¢2 938
1
#12
5LB-14341-00-00
NOZZLE, MAIN
$46.74¢23 369
1
#13
5LB-14341-10-00
BLEED, MAIN NOZZLE
$51.95¢25 975
1
#14
5FY-14343-63-00
JET, MAIN (#126)
$26.29¢13 144
1
#15
5LB-14342-65-00
JET, PILOT (#31)
$23.42¢11 712
1
#16
5LB-14105-00-00
PILOT SCREW SET
$18.90¢9 450
1
#17
5LB-14368-00-00
DIAPHRAGM ASSY 1
$57.84¢28 919
1
#18
5LB-14589-00-00
SPRING
$4.81¢2 406
1
#19
5LB-14293-00-00
COVER 1
$18.34¢9 169
1
#20
214-24535-00-00
SCREW, LEVER FITTING
$7.82¢3 912
1
#21
50M-14355-01-00
PLUG
$3.96¢1 981
1
#22
5FY-14371-00-00
PLUNGER, STARTER
$99.31¢49 656
1
#23
5LB-14385-00-00
FLOAT
$58.63¢29 313
1
#24
5LB-14386-00-00
PIN, FLOAT
$7.91¢3 956
1
#25
5LB-14390-00-00
NEEDLE VALVE ASSY
$43.49¢21 744
1
#26
5LB-14384-00-00
GASKET, FLOAT CHAMBER
$17.01¢8 506
1
#27
4JP-14104-00-00
AIR SCREW SET
$10.69¢5 344
1
#28
5LB-14592-00-00
SCREW
$4.91¢2 456
1
#29
5LB-14292-00-00
BRACKET 2
$5.02¢2 512
1
#30
5LB-14197-00-00
PIPE
$9.04¢4 519
1
#31
5FY-14196-00-00
PIPE, OVER FLOW 1
$9.60¢4 800
1
#32
4KN-1432A-00-00
PLUG
$3.89¢1 944
1
#33
98980-04006-00
SCREW,BIND
$5.86¢2 931
1
