INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

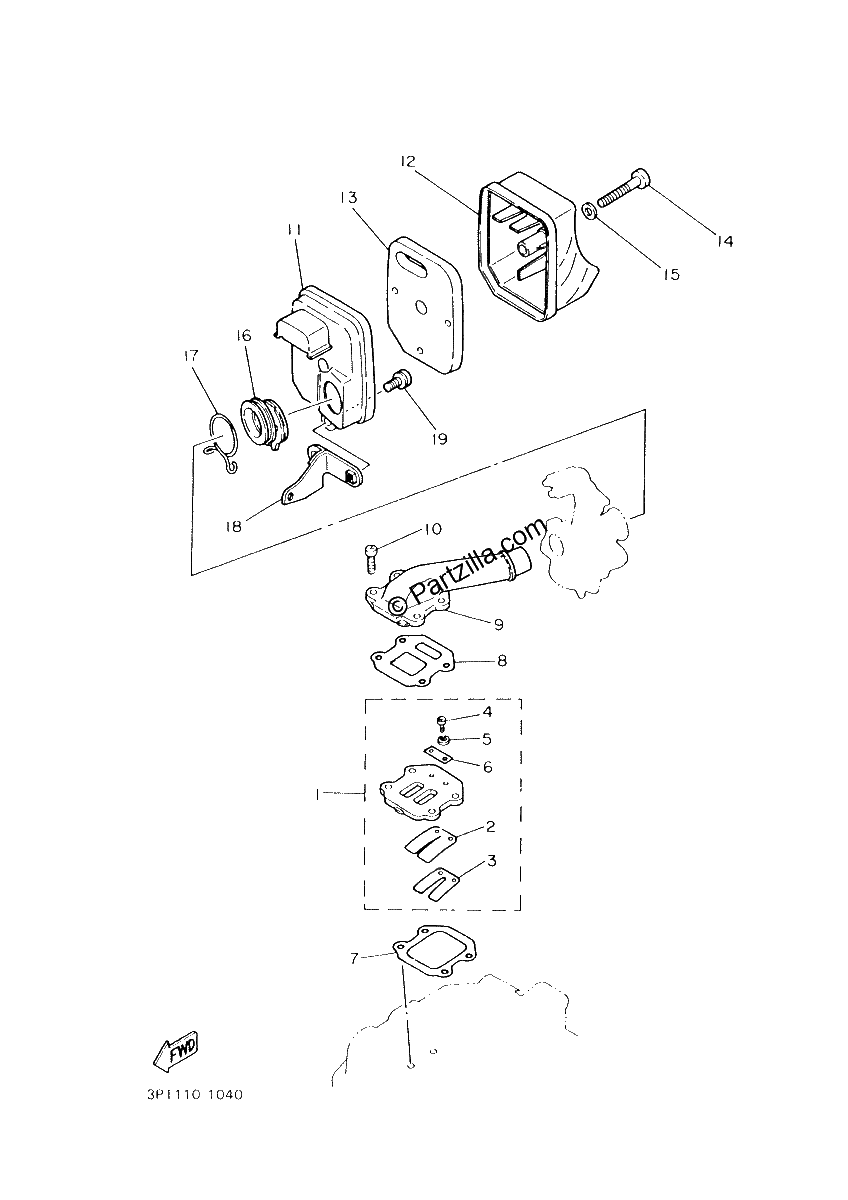

Diagrama de INTAKE

Repuestos

#1
3L5-13610-00-00
REED VALVE ASSY
$84.16¢42 081
1
#2
3L5-13613-00-00
REED, VALVE
$46.19¢23 094
1
#3
3L5-13616-00-00
STOPPER, REED VALVE
$10.81¢5 406
1
#4
98507-03010-00
SCREW, PAN HEAD
$3.21¢1 606
1
#5
92990-03100-00
WASHER, SPRING
$7.34¢3 669
1
#6
3L5-13624-00-00
PLATE, REED VALVE
$7.86¢3 931
1
#7
3HK-13621-00-00
GASKET, VALVE SEAT
$20.88¢10 438
1
#8
3L5-13622-10-00
GASKET, VALVE SEAT
$29.59¢14 794
1
#9
3L5-13555-00-00
MANIFOLD, INTAKE
$69.08¢34 538
1
#10
98517-06020-00
SCREW, PAN HEAD
$2.24¢1 119
1
#11
4X4-14411-00-00
CASE, AIR CLEANER 1
$32.86¢16 431
1
#12
4X4-14412-00-00
CAP, CLEANER CASE 1
$26.43¢13 213
1
#13
4X4-14451-00-00
ELEMENT, AIR CLEANER
$8.50¢4 250
1
#14
98507-06045-00
SCREW, PAN HEAD
$3.14¢1 569
1
#15
92907-06600-00
WASHER, PLATE (6TA)
$0.96¢481
1
#16
4X4-14453-00-00
JOINT, AIR CLEANER 1
$24.55¢12 275
1
#17
90467-20023-00
CLIP
$4.24¢2 119
1
#18
4X4-14493-01-00
STAY 1
$22.60¢11 300
1
#19
90159-06013-00
SCREW, WITH WASHER
$7.48¢3 738
1
