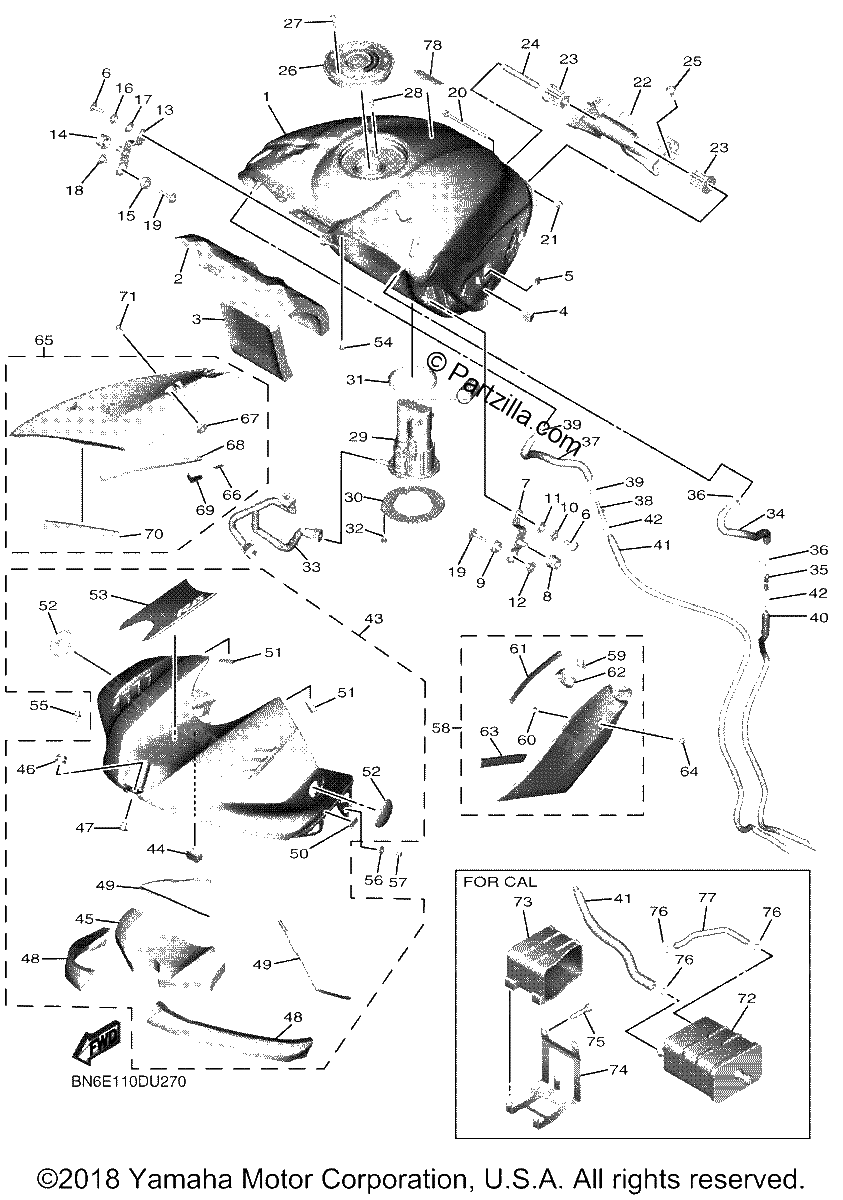

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP.
$1461.24¢730 619
#1
FUEL TANK COMP.
$1278.74¢639 369
#1
FUEL TANK COMP.
$2227.49¢1 113 744
#2
DAMPER, PLATE 2
$11.74¢5 869
#3
DAMPER, PLATE
$2.82¢1 412
#4
DAMPER, LOCATING 2
$7.08¢3 538
#5
DAMPER, SIDE COVER
$7.65¢3 825
#6
BOLT,HEX. SOCKET BUTTON
$5.69¢2 844
#7
BRACKET, FUEL TANK 1
$28.54¢14 269
#8
DAMPER, LOCATING 1
$7.65¢3 825
#9
Grommet
$3.11¢1 556
#10
COLLAR
$7.46¢3 731
#11
DAMPER, LOCATING 3
$10.46¢5 231
#12
COLLAR
$8.31¢4 156
#13
BRACKET, FUEL TANK 1
$28.54¢14 269
#14
DAMPER, LOCATING 1
$7.65¢3 825
#15
Grommet
$3.11¢1 556
#16
COLLAR
$7.46¢3 731
#17
DAMPER, LOCATING 3
$10.46¢5 231
#18
COLLAR
$8.31¢4 156
#19
BOLT, WITH WASHER
$7.48¢3 738
#20
BOLT, FLANGE
$3.40¢1 700
#21
NUT, FLANGE
$2.44¢1 219
#22
BRACKET, TANK FITTING
$67.14¢33 569
#23
DAMPER, LOCATING 3
$7.65¢3 825
#24
COLLAR
$5.19¢2 594
#25
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
#26
CAP ASSY
$270.61¢135 306
#27
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#28
BOLT
$5.86¢2 931
#29
FUEL PUMP COMP.
$417.95¢208 975
#30
BRACKET, FUEL PUMP
$24.55¢12 275
#31
O-RING
$29.22¢14 612
#32
BOLT, WITH WASHER (replaces 90119-05016-00)
$7.34¢3 669
#33
PIPE, FUEL 1
$409.79¢204 894
#34
PIPE 3
$14.64¢7 319
#35
JOINT
$7.08¢3 538
#36
Clip
$2.97¢1 487
#37
PIPE 3
$17.43¢8 713
#38
JOINT
$7.08¢3 538
#39
Clip
$2.97¢1 487
#40
PIPE 4
$14.64¢7 319
#41
PIPE 7
$16.63¢8 313
#41
PIPE 7
$5.89¢2 944
#42
Clip
$2.97¢1 487
#43
COVER, TOP (FUEL TANK)
$208.35¢104 175
#43
COVER, TOP (FUEL TANK)
$208.35¢104 175
#43
COVER, TOP (FUEL TANK)
$254.19¢127 094
#44
DAMPER, PLATE
$1.57¢788
#45
Damper
$6.14¢3 069
#46
GROMMET
$7.43¢3 713
#47
COLLAR
$8.30¢4 150
#48
DAMPER, PLATE 4
$7.60¢3 800
#49
DAMPER, PLATE 1
$7.60¢3 800
#50
SEAL
$7.08¢3 538
#51
DAMPER, PLATE
$1.65¢825
#52
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
#53
. . GRAPHIC, FUEL TANK 1
$22.01¢11 006
#54
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#55
BOLT, HEXAGON SOCKET HEAD
$7.43¢3 713
#56
COLLAR
$6.32¢3 162
#57
bolt
$0.69¢344
#58
TANK SIDE COVER ASSY 1
$54.84¢27 419
#59
SEAL
$7.08¢3 538
#60
COLLAR
$5.99¢2 994
#61
SEAL 3
$1.80¢900
#62
MOLE
$1.39¢694
#63
DAMPER, PLATE
$1.07¢538
#64
BOLT, HEX. SOCKET BUTTON
$1.25¢625
#65
TANK SIDE COVER ASSY 2
$54.84¢27 419
#66
SEAL
$7.08¢3 538
#67
COLLAR
$5.99¢2 994
#68
SEAL 3
$1.80¢900
#69
MOLE
$1.39¢694
#70
DAMPER, PLATE
$1.07¢538
#71
BOLT, HEX. SOCKET BUTTON
$1.25¢625
#72
CANISTER ASSY | FOR CALIFORNIA
$377.02¢188 513
#73
DAMPER, LOCATING 2 | FOR CALIFORNIA
$35.29¢17 644
#74
BRACKET, CANISTOR
$28.06¢14 031
#75
BOLT
$7.34¢3 669
#76
Clip
$2.97¢1 487
#77
HOSE
$6.10¢3 050
#78
LABEL, WARNING GENERAL INFO.
$3.70¢1 850
