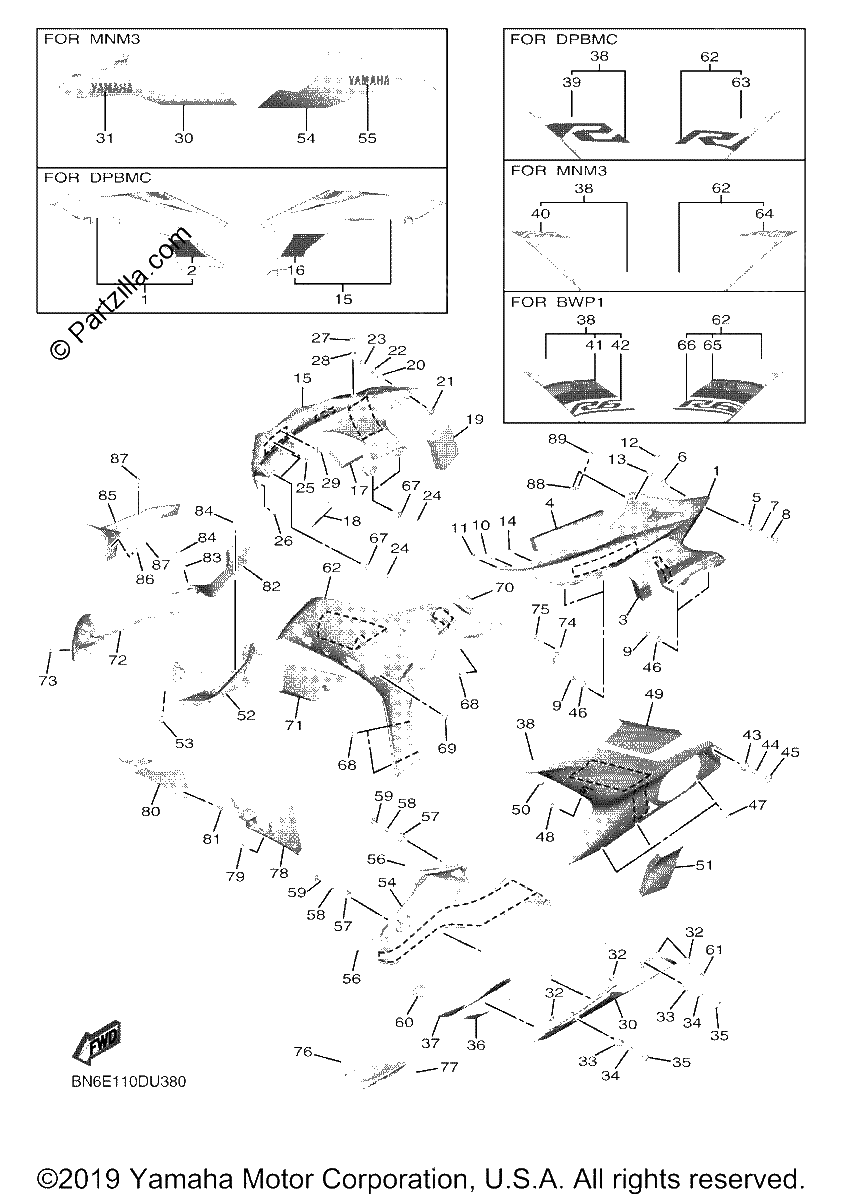

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER 7
$376.11¢188 056
#1
COVER ASSY 7
$385.25¢192 625
#1
COVER 7
$376.11¢188 056
#2
. . GRAPHIC 5
$18.38¢9 188
#3
DAMPER, PLATE
$1.93¢963
#4
SEAL 12
$2.91¢1 456
#5
Grommet
$23.96¢11 981
#6
COLLAR
$6.19¢3 094
#7
WASHER, PLATE
$8.45¢4 225
#8
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#9
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#10
NUT, SPRING
$4.97¢2 488
#11
Clamp
$0.72¢363
#12
SCREW,SPEC'L SHAPE
$5.07¢2 537
#13
WASHER, PLATE
$4.05¢2 025
#14
Clip
$1.07¢538
#15
COVER 8
$376.11¢188 056
#15
COVER ASSY 8
$385.25¢192 625
#15
COVER 8
$376.11¢188 056
#16
. . GRAPHIC 6
$21.23¢10 613
#17
DAMPER, PLATE
$1.93¢963
#18
DAMPER, PLATE
$1.82¢913
#19
SEAL 26
$2.91¢1 456
#20
Grommet
$23.96¢11 981
#21
COLLAR
$6.19¢3 094
#22
WASHER, PLATE
$8.45¢4 225
#23
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#24
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#25
NUT, SPRING
$4.97¢2 488
#26
Clamp
$0.72¢363
#27
SCREW,SPEC'L SHAPE
$5.07¢2 537
#28
WASHER, PLATE
$4.05¢2 025
#29
Clip
$1.07¢538
#30
COVER, UNDER
$120.17¢60 088
#30
COVER, UNDER
$148.45¢74 225
#30
COVER, UNDER
$168.81¢84 406
#31
EMBLEM, YAMAHA
$21.95¢10 975
#32
NUT, SPRING
$2.82¢1 412
#33
GROMMET
$7.43¢3 713
#34
COLLAR
$7.43¢3 713
#35
bolt
$4.00¢2 000
#36
SEAT 1
$35.19¢17 594
#37
DAMPER, locating 1
$6.64¢3 319
#38
PANEL ASSY 1
$325.32¢162 663
#38
PANEL ASSY 1
$348.19¢174 094
#38
PANEL ASSY 1
$267.64¢133 819
#39
. . GRAPHIC 1
$39.83¢19 913
#40
GRAPHIC 1
$20.56¢10 281
#41
. . GRAPHIC 1
$31.95¢15 975
#42
. . EMBLEM, 1
$27.20¢13 600
#43
GROMMET
$7.43¢3 713
#44
COLLAR
$7.43¢3 713
#45
bolt
$4.00¢2 000
#46
NUT, SPRING
$2.82¢1 412
#47
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#48
RIVET
$6.45¢3 225
#49
DAMPER 2
$7.13¢3 563
#50
DAMPER
$7.60¢3 800
#51
DAMPER, PLATE
$4.34¢2 169
#52
COVER 1
$34.98¢17 488
#53
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#54
COVER, UNDER 2
$123.20¢61 600
#54
COVER, UNDER 2
$140.00¢70 000
#54
COVER, UNDER 2
$150.59¢75 294
#55
EMBLEM, YAMAHA
$21.95¢10 975
#56
NUT, SPRING
$2.82¢1 412
#57
GROMMET
$7.43¢3 713
#58
COLLAR
$7.43¢3 713
#59
bolt
$4.00¢2 000
#60
SEAT 2
$30.47¢15 237
#61
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#62
PANEL ASSY 2
$325.77¢162 888
#62
PANEL ASSY 2
$325.95¢162 975
#62
PANEL ASSY 2
$270.48¢135 238
#63
. . GRAPHIC 2
$33.41¢16 706
#64
GRAPHIC 2
$20.56¢10 281
#65
. . GRAPHIC 2
$31.95¢15 975
#66
. . EMBLEM 2
$27.20¢13 600
#67
NUT, SPRING
$2.82¢1 412
#68
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#69
RIVET
$6.45¢3 225
#70
DAMPER, PLATE
$1.34¢669
#71
DAMPER 4
$7.65¢3 825
#72
COVER 2
$34.98¢17 488
#73
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#74
BRACKET 4
$5.58¢2 788
#75
BOLT, FLANGE
$2.65¢1 325
#76
PANEL, INNER 1
$93.61¢46 806
#77
NUT, SPRING
$2.82¢1 412
#78
PANEL, INNER 2
$60.51¢30 256
#79
RIVET
$8.80¢4 400
#80
PANEL, INNER 3
$70.92¢35 463
#81
RIVET
$8.80¢4 400
#82
PANEL, console 1
$19.26¢9 631
#83
DAMPER
$6.45¢3 225
#84
RIVET
$8.80¢4 400
#85
PANEL, CONSOLE 2
$19.30¢9 650
#86
DAMPER
$6.45¢3 225
#87
RIVET
$8.80¢4 400
#88
STAY 2
$8.60¢4 300
#89
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
