FRONT MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

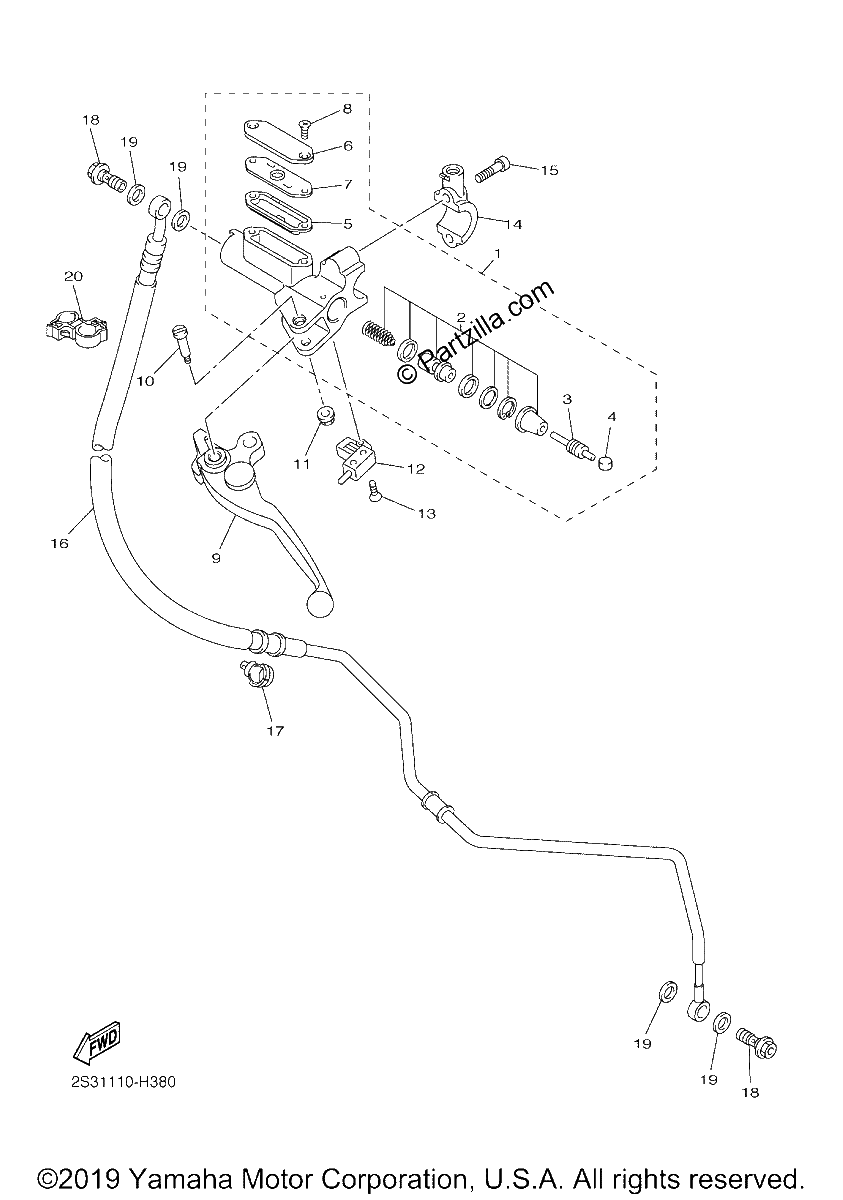

Diagrama de FRONT MASTER CYLINDER 2

Repuestos

#1
2S3-W2645-00-00
MASTER CYLINDER SUB ASSY
$295.40¢147 700
1
#2
5JW-W0099-00-00
CYLINDER KIT, MASTER (CLUTCH
$54.42¢27 213
1
#3
3GM-26464-00-00
ROD, PUSH
$18.90¢9 450
1
#4
3GM-26455-00-00
BUSH
$22.45¢11 225
1
#5
5YU-25854-50-00
DIAPHRAGM, RESERVOIR
$12.04¢6 019
1
#6
5YU-25852-50-00
CAP, RESERVOIR
$35.88¢17 938
1
#7
5YU-25855-50-00
BUSH, DIAPHRAGM
$10.45¢5 225
1
#8
98707-04012-00
SCREW, FLAT HEAD
$1.71¢856
1
#9
5YU-83912-20-00
LEVER 1
$143.28¢71 638
1
#10
3FV-2589F-00-00
BOLT, LEVER
$15.15¢7 575
1
#11
95707-06500-00
NUT, FLANGE
$0.94¢469
1
#12
3GM-83980-00-00
SWITCH
$55.26¢27 631
1
#13
98707-04016-00
SCREW, FLAT HEAD
$7.35¢3 675
1
#14
2S3-26393-00-00
HOLDER
$40.98¢20 488
1
#15
5VS-26332-00-00
BOLT
$4.68¢2 338
1
#16
2S3-26470-00-00
HOSE, CLUTCH
$154.66¢77 331
1
#17
90464-18002-00
CLAMP
$8.25¢4 125
1
#18
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#19
90430-10005-00
GASKET
$8.39¢4 194
1
#20
90464-16015-00
CLAMP
$5.02¢2 512
1
