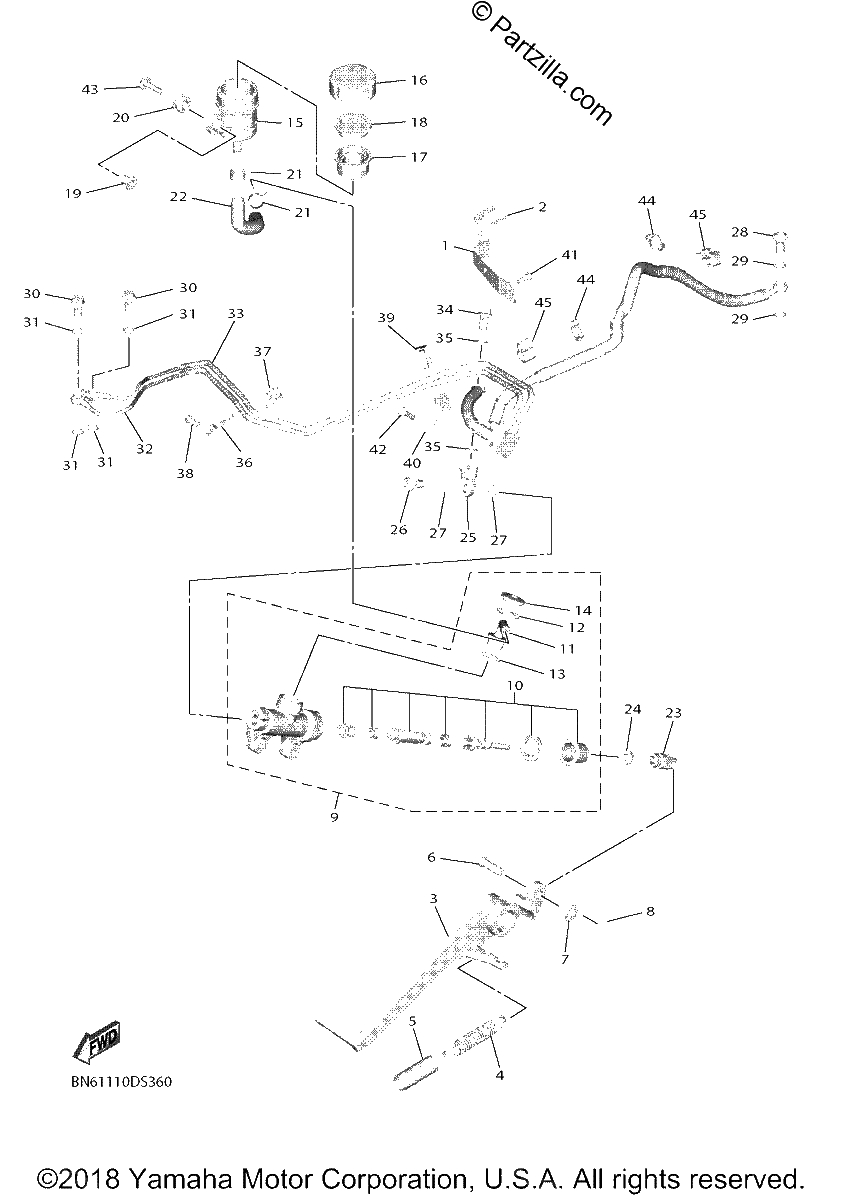

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BRACKET, RESERVE TANK
$27.73¢13 863
#2
DAMPER 5
$3.43¢1 713
#3
PEDAL, BRAKE
$136.15¢68 074
#4
SPRING, TENSION
$13.21¢6 607
#5
HOSE
$6.36¢3 180
#6
PIN,CLEVIS (replaces 91702-06018-00)
$4.91¢2 455
#7
WASHER
$6.76¢3 381
#8
PIN, COTTER
$6.74¢3 370
#9
RR. MASTER CYLINDER ASSY.
$180.95¢90 476
#10
CYLINDER KIT, MASTER
$103.40¢51 698
#11
JOINT
$13.39¢6 693
#12
CIRCLIP
$6.51¢3 254
#13
O-RING
$6.32¢3 162
#14
COVER, DUST
$19.34¢9 672
#15
TANK, RESERVOIR
$26.79¢13 397
#16
CAP, RESERVOIR
$6.29¢3 145
#17
DIAPHRAGM, RESERVOIR
$21.50¢10 753
#18
BUSH,DIAPHRAGM
$10.43¢5 215
#19
COLLAR
$6.39¢3 197
#20
GROMMET
$5.91¢2 956
#21
CLIP
$7.99¢3 996
#22
Hose, Reservoir
$13.47¢6 733
#23
JOINT
$42.70¢21 350
#24
NUT
$7.72¢3 858
#25
JOINT
$62.17¢31 085
#26
BOLT, UNION
$4.06¢2 030
#27
GASKET
$7.72¢3 858
#28
BOLT, UNION
$4.06¢2 030
#29
GASKET
$7.72¢3 858
#30
BOLT, union
$12.45¢6 227
#31
GASKET
$7.72¢3 858
#32
HOSE, BRAKE
$147.61¢73 807
#33
HOSE, BRAKE
$173.89¢86 946
#34
BOLT, union
$2.94¢1 472
#35
GASKET
$7.72¢3 858
#36
BRACKET 1
$3.52¢1 759
#37
CLAMP
$2.53¢1 265
#38
BOLT, BUTTON HEAD
$3.06¢1 529
#39
CLAMP
$2.53¢1 265
#40
BRACKET 3
$5.89¢2 944
#41
BOLT, BUTTON HEAD
$6.76¢3 381
#42
BOLT, BUTTON HEAD
$3.16¢1 581
#43
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
#44
CLAMP
$36.77¢18 383
#45
CLAMP
$6.96¢3 479
