FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

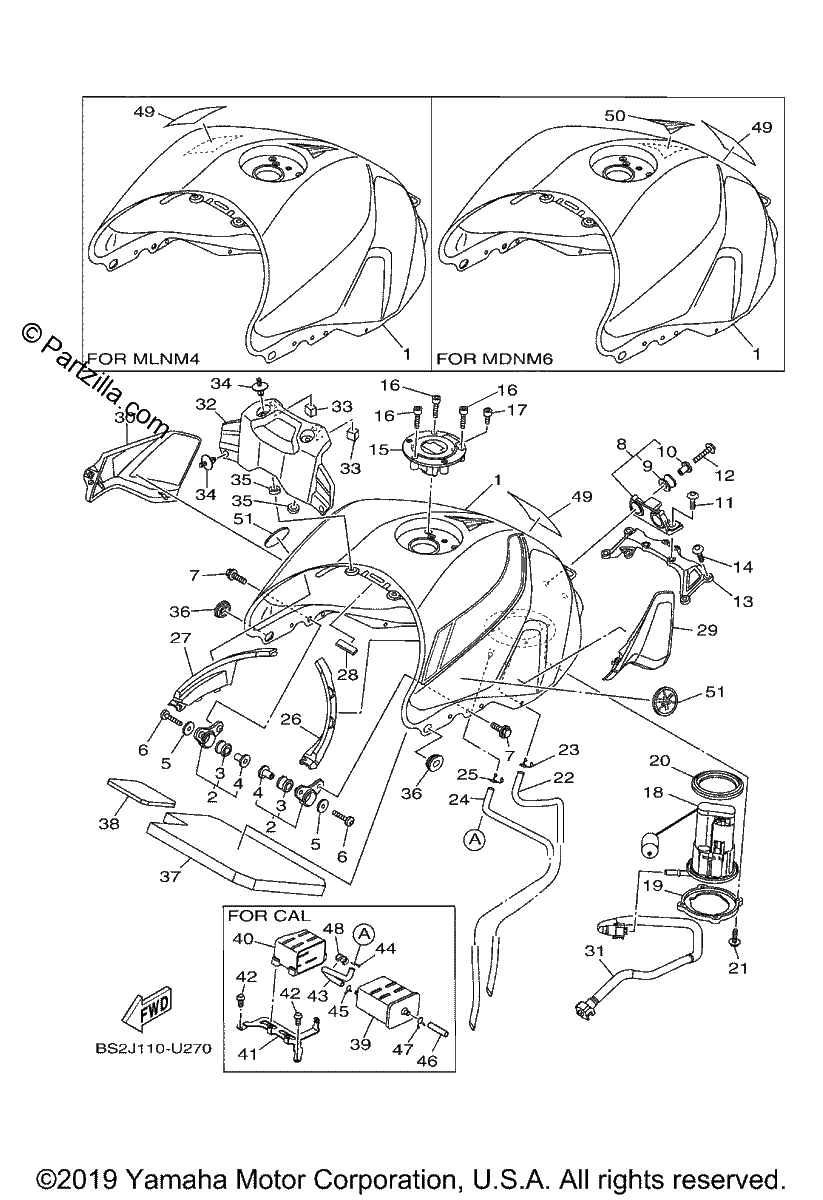

Diagrama de FUEL TANK

Repuestos

#1
1RC-YG241-00-04
FUEL TANK COMP.
$1064.99¢532 494
1
#1
1RC-24110-00-PB
FUEL TANK COMP.
$1126.70¢563 350
1
#1
1RC-Y2410-00-X4
FUEL TANK COMP.
$994.99¢497 494
1
#2
23P-24104-00-00
TANK BRACKET ASSY (replaces 23P-24104-01-00)
$60.76¢30 381
1
#3
90480-18008-00
GROMMET
$3.79¢1 894
1
#4
90387-06266-00
COLLAR
$4.68¢2 338
1
#5
90201-06072-00
WASHER, PLATE
$7.63¢3 813
1
#6
92012-06035-00
BOLT, BUTTON HEAD
$2.05¢1 025
1
#7
90119-06051-00
BOLT, WITH WASHER
$7.49¢3 744
1
#8
1RC-24104-00-00
TANK BRACKET ASSY
$51.61¢25 806
1
#9
3D7-24339-00-00
GROMMET
$3.93¢1 963
1
#10
90387-06136-00
COLLAR
$6.76¢3 381
1
#11
90111-06136-00
BOLT, HEX. SOCKET BUTTON
$5.61¢2 806
1
#12
95D32-06025-00
BLOT, FLANGE DEEP RECESS
$1.01¢506
1
#13
1RC-2413Y-00-00
BRACKET, TANK FITTING
$49.16¢24 581
1
#14
92017-06020-00
BOLT, BUTTON HEAD
$3.04¢1 519
1
#15
39P-24602-10-00
CAP ASSY
$312.61¢156 306
1
#16
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
1
#17
91312-05010-00
BOLT
$5.86¢2 931
1
#18
1RC-13907-00-00
FUEL PUMP COMP.
$463.40¢231 700
1
#19
1RC-24491-00-00
BRACKET, FUEL PUMP
$29.35¢14 675
1
#20
1RC-24486-00-00
O-RING
$29.22¢14 612
1
#21
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#22
1RC-24315-00-00
PIPE 5
$15.65¢7 825
1
#23
90467-090A2-00
Clip
$2.97¢1 487
1
#24
1RC-24316-00-00
PIPE 6 | FOR U49
$14.16¢7 081
1
#25
90467-090A2-00
Clip
$2.97¢1 487
1
#26
1RC-2418B-01-00
MOLE, FUEL TANK 1
$36.88¢18 438
1
#27
1RC-2419B-01-00
MOLE, FUEL TANK 2
$36.88¢18 438
1
#28
2S3-28347-00-00
MOLE 3
$7.91¢3 956
1
#29
1RC-24106-01-00
TANK SIDE COVER ASSY (replaces 1RC-24106-00-00)
$44.33¢22 163
1
#30
1RC-24108-01-00
TANK SIDE COVER ASSY (replaces 1RC-24108-00-00)
$46.88¢23 438
1
#31
1RC-13971-11-00
PIPE, FUEL 1 (replaces 1RC-13971-00-00)
$77.58¢38 788
1
#32
1RC-241B1-00-00
COVER, TANK
$30.41¢15 206
1
#33
90520-15012-00
DAMPER, PLATE
$1.11¢556
1
#34
90269-07077-00
RIVET
$8.25¢4 125
1
#35
5SL-84753-00-00
DAMPER
$6.45¢3 225
1
#36
90480-01558-00
Grommet
$4.69¢2 344
1
#37
2PP-2414J-00-00
DAMPER, PLATE 2
$12.48¢6 238
1
#38
BS2-24141-00-00
PROTECTOR, FUEL TANK
$17.60¢8 800
1
#39
2CR-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$377.02¢188 513
1
#40
B90-24183-00-00
DAMPER, LOCATING 3 | FOR CAL
$26.91¢13 456
1
#41
B90-2419F-00-00
BRACKET, CANISTOR | FOR CAL
$15.18¢7 588
1
#42
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#43
B90-24313-10-00
PIPE 3 | FOR CAL
$29.53¢14 763
1
#44
90467-090A2-00
Clip
$2.97¢1 487
1
#45
90467-09026-00
CLIP,SCISSOR
$3.25¢1 625
1
#46
BS2-24321-00-00
PIPE 10
$0.96¢481
1
#47
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#48
90464-09M31-00
CLAMP
$7.36¢3 681
1
#49
29P-2816R-00-00
LABEL, WARNING GENERAL INFO.
$3.70¢1 850
1
#50
B87-24161-00-00
EMBLEM 1
$13.86¢6 931
1
#51
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
1
