CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

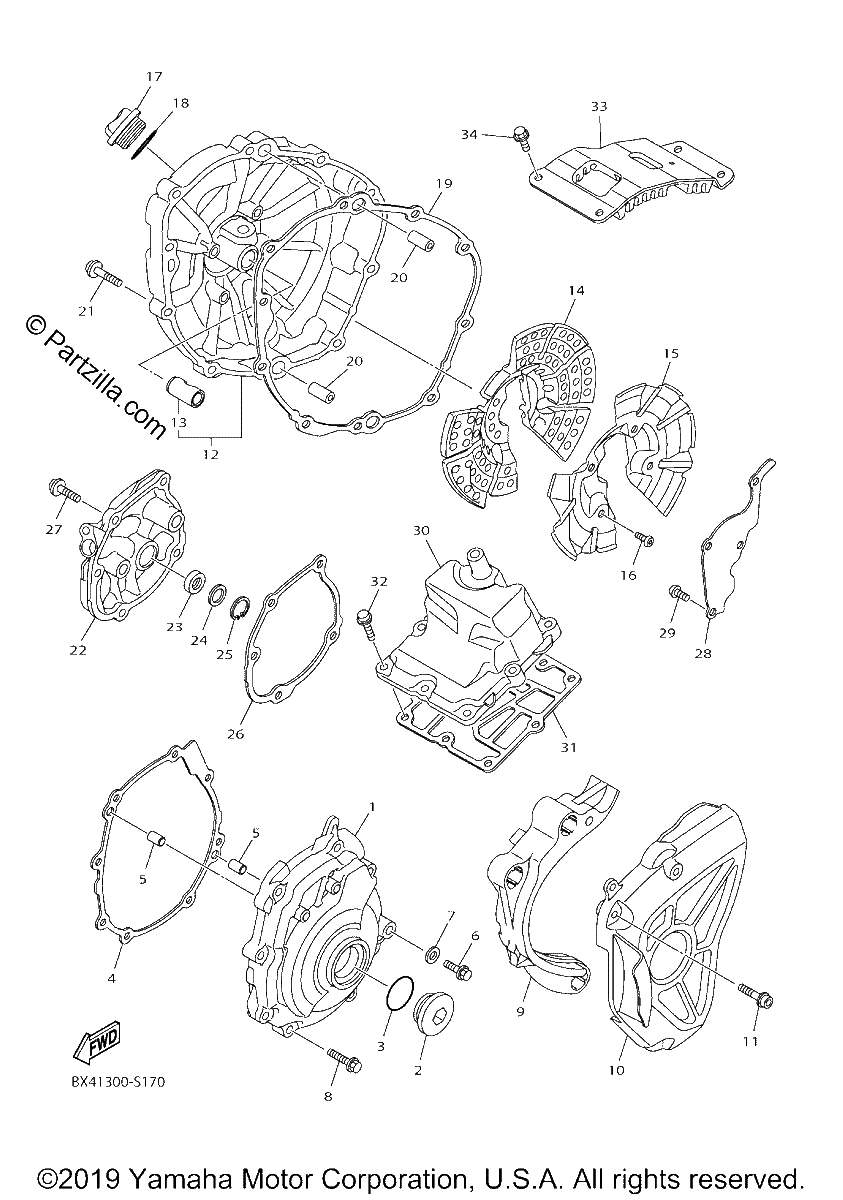

Diagrama de CRANKCASE COVER 1

Repuestos

#1
BX4-15411-00-00
COVER, CRANKCASE 1
$301.95¢150 975
1
#2
90340-27007-00
PLUG, STRAIGHT SCREW
$35.48¢17 738
1
#3
93210-27778-00
O-RING
$8.21¢4 106
1
#4
2CR-15451-00-00
GASKET, CRANKCASE COVER 1
$16.07¢8 038
1
#5
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#6
90109-08239-00
BOLT
$10.86¢5 431
1
#7
90430-08143-00
GASKET
$3.67¢1 838
1
#8
90109-06300-00
BOLT
$17.49¢8 744
1
#9
2CR-15377-10-00
GUIDE, INLET
$49.07¢24 537
1
#10
2CR-15418-00-00
COVER, CHAIN CASE
$26.39¢13 194
1
#11
90110-06387-00
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.95¢1 475
1
#12
BX4-15421-00-00
COVER, CRANKCASE 2
$326.70¢163 350
1
#13
5VY-15541-00-00
COLLAR
$12.48¢6 238
1
#14
2CR-15316-00-00
DAMPER 1
$31.84¢15 919
1
#15
2CR-15492-00-00
COVER
$28.96¢14 481
1
#16
90149-06156-00
SCREW
$7.56¢3 781
1
#17
2CR-15363-01-00
PLUG, OIL
$12.52¢6 262
1
#18
93210-29574-00
O-RING
$7.63¢3 813
1
#19
2CR-15461-00-00
GASKET, CRANKCASE COVER 2
$23.52¢11 763
1
#20
91810-20002-00
PIN, DOWEL
$5.95¢2 975
1
#21
90109-06301-00
BOLT
$17.49¢8 744
1
#22
BX4-15416-01-00
COVER, OIL PUMP (replaces BX4-15416-00-00)
$89.36¢44 681
1
#23
93101-10004-00
OIL SEAL
$9.14¢4 569
1
#24
90201-12166-00
WASHER, PLATE (replaces 90201-128C9-00)
$7.48¢3 738
1
#25
99009-19500-00
CIRCLIP
$1.06¢531
1
#26
2CR-15456-00-00
GASKET, OIL PUMP COVER 1
$11.90¢5 950
1
#27
90109-06299-00
BOLT
$22.69¢11 344
1
#28
2CR-11165-00-00
PLATE, BREATHER
$3.75¢1 875
1
#29
90149-06156-00
SCREW
$7.56¢3 781
1
#30
2CR-15413-00-00
COVER
$126.14¢63 069
1
#31
2CR-15462-00-00
GASKET, CRANKCASE COVER 3
$11.06¢5 531
1
#32
90109-06300-00
BOLT
$17.49¢8 744
1
#33
2CR-15113-00-00
PLATE
$58.34¢29 169
1
#34
90110-06107-00
BOLT, HEXAGON SOCKET HEAD
$3.09¢1 544
1
