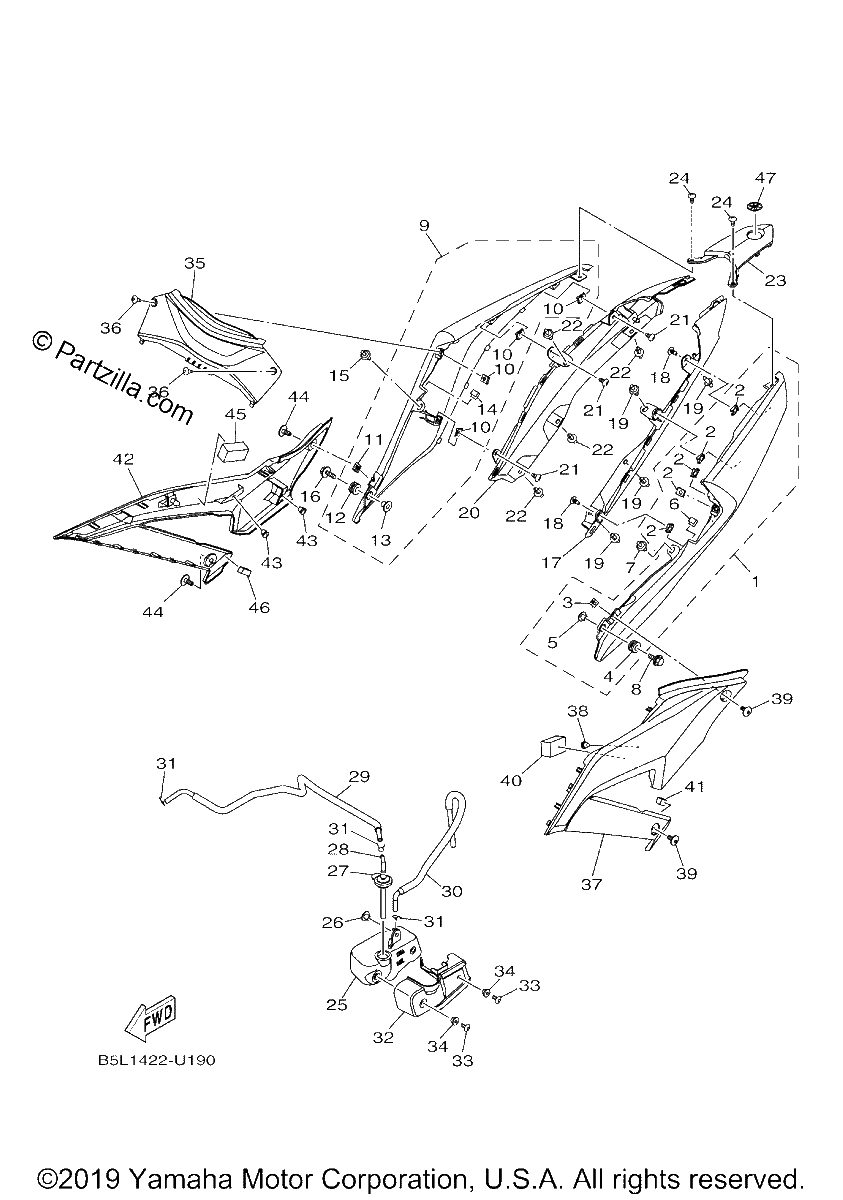

SIDE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, SIDE 1
$60.40¢30 200
#1
COVER, SIDE 1
$128.03¢64 013
#2
NUT, SPRING
$1.25¢625
#3
NUT, SPRING
$3.11¢1 556
#4
GROMMET
$2.95¢1 475
#5
COLLAR
$2.94¢1 469
#6
SEAL
$2.65¢1 325
#7
RIVET
$1.71¢856
#8
BOLT,WITH WASHER
$3.67¢1 838
#9
COVER, SIDE 2
$60.40¢30 200
#9
COVER, SIDE 2
$40.48¢20 238
#10
NUT, SPRING
$1.25¢625
#11
NUT, SPRING
$3.11¢1 556
#12
GROMMET
$2.95¢1 475
#13
COLLAR
$2.94¢1 469
#14
SEAL
$2.65¢1 325
#15
RIVET
$1.71¢856
#16
BOLT,WITH WASHER
$3.67¢1 838
#17
MOLE, SIDE COVER 1
$4.68¢2 338
#18
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#19
RIVET
$1.71¢856
#20
MOLE, SIDE COVER 2
$17.49¢8 744
#21
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#22
RIVET
$1.71¢856
#23
MOLE, SIDE COVER 3
$12.75¢6 375
#24
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#25
TANK, RECOVERY (replaces 1WD-F1871-00-00)
$25.01¢12 506
#26
COLLAR
$1.29¢644
#27
CAP
$3.59¢1 794
#28
ELBOW
$26.14¢13 069
#29
PIPE 1
$12.49¢6 244
#30
PIPE 2
$7.91¢3 956
#31
CLIP
$7.50¢3 750
#32
Cover
$20.11¢10 056
#33
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
#34
SPACER
$7.94¢3 969
#35
COVER, SIDE 3
$16.54¢8 269
#36
SCREW, ROUND TAPPING
$1.89¢944
#37
COVER, SIDE 5
$30.25¢15 125
#38
PLUG
$6.76¢3 381
#39
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
#40
DAMPER, PLATE
$2.69¢1 344
#41
DAMPER, PLATE
$1.31¢656
#42
COVER, SIDE 6
$9.91¢4 956
#43
PLUG
$6.76¢3 381
#44
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
#45
DAMPER, PLATE
$2.69¢1 344
#46
DAMPER, PLATE
$1.31¢656
#47
TUNING FORK MARK
$34.40¢17 200
