OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

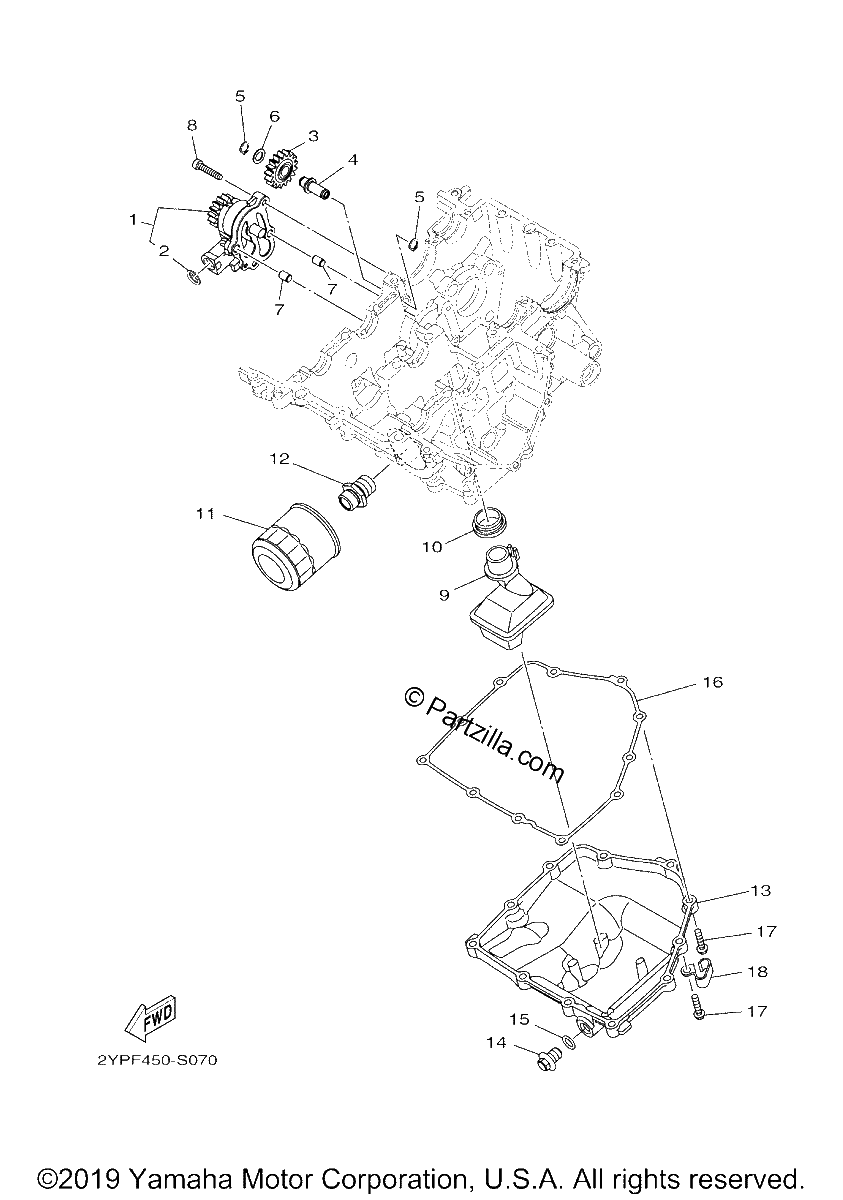

Diagrama de OIL PUMP

Repuestos

#1
1WD-E3300-01-00
Oil Pump AssY
$63.69¢31 844
1
#2
99009-15500-00
CIRCLIP
$10.37¢5 187
1
#3
1WD-E3341-00-00
GEAR, OIL PUMP IDLE
$20.13¢10 063
1
#4
1WD-E3342-00-00
SHAFT, IDLE GEAR
$27.09¢13 547
1
#5
99009-10400-00
CIRCLIP
$4.28¢2 139
1
#6
90201-10119-00
WASHER, PLATE
$0.89¢443
1
#7
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#8
91332-06030-00
bolt
$0.34¢173
1
#9
1WD-E3410-00-00
STRAINER HOUSING ASSY
$70.13¢35 064
1
#10
1WD-E3415-00-00
SEAL, OIL STRAINER
$3.29¢1 644
1
#11
5GH-13440-61-00
ELEMENT ASSY, OIL CL (replaces 5GH-13440-50-00)
$15.49¢7 745
1
#12
90401-20008-00
BOLT, UNION
$21.02¢10 511
1
#13
1WD-E3417-00-00
COVER, STRAINER
$41.17¢20 585
1
#14
90340-12808-00
PLUG, STRAIGHT SCREW
$0.94¢471
1
#15
4YS-E1198-00-00
GASKET
$7.08¢3 542
1
#16
1WD-E3414-00-00
GASKET, STRAINER COVER
$9.12¢4 560
1
#17
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#18
90462-08810-00
CLAMP
$3.71¢1 857
1
