FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

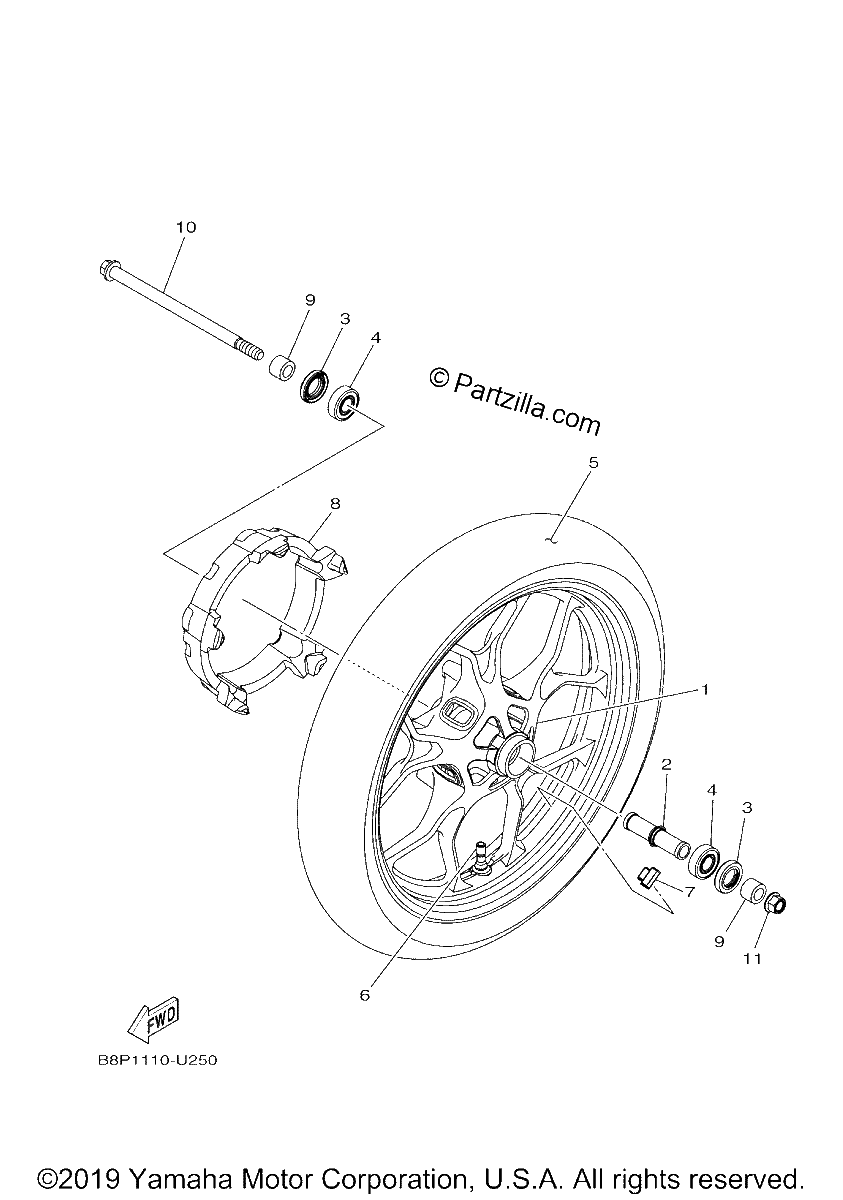

Diagrama de FRONT WHEEL

Repuestos

#1
1WD-F5168-02-98
CAST WHEEL, FRONT
$380.35¢190 176
1
#1
1WD-F5168-03-P0
CAST WHEEL, FRONT (replaces 1WD-F5168-01-P0)
$576.21¢288 104
1
#2
1WD-F510C-01-00
COLLAR ASSY. (replaces 1WD-F510C-00-00)
$14.00¢6 998
1
#3
93106-26005-00
OIL SEAL
$7.35¢3 674
1
#4
93306-302X4-00
BEARING
$40.88¢20 441
1
#5
94111-17812-00
TIRE (110/70R17 M/C 54H) | DUNLOP
$261.99¢130 997
1
#6
93900-00828-00
VALVE, RIM
$4.30¢2 151
1
#7
5MT-25398-00-00
BALANCER, WHEEL (10G) | UN
$17.03¢8 516
1
#7
5MT-25398-10-00
BALANCER, WHEEL (20G) | UN
$16.85¢8 424
1
#7
5MT-25398-20-00
BALANCER, WHEEL (30G) | UN
$43.29¢21 643
1
#8
B5L-F514A-00-00
RING, WHEEL 1
$25.97¢12 983
1
#9
1PA-F5386-00-00
COLLAR, SPROCKET AXLE
$21.75¢10 873
1
#10
1WD-25181-00-00
AXLE, WHEEL
$41.76¢20 878
1
#11
95602-14200-00
NUT,SELF-LOCKING
$10.87¢5 434
1
