HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

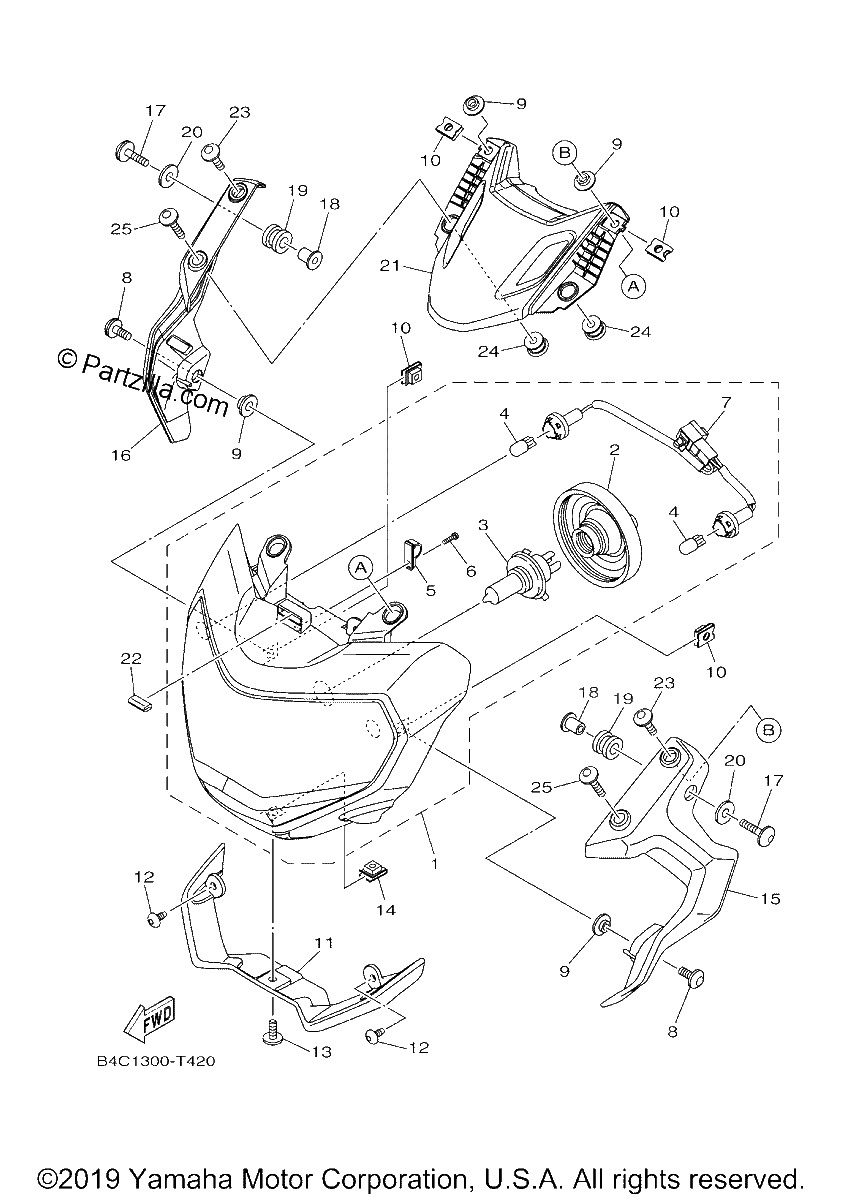

Diagrama de HEADLIGHT

Repuestos

#1
B4C-84300-00-00
HEADLIGHT ASSY
$247.78¢123 888
1
#2
1RC-84397-00-00
COVER, SOCKET
$14.66¢7 331
1
#3
1RC-84314-00-00
BULB, HEADLIGHT (12V-60/55W)
$34.80¢17 400
1
#4
1RC-84347-00-00
BULB (12V-5W)
$8.03¢4 013
1
#5
1RC-84746-00-00
PLATE, SEAT BASE
$4.40¢2 200
1
#6
1RC-84724-00-00
SCREW, LENS FITTING
$3.02¢1 513
1
#7
B4C-84359-00-00
CORD, HEADLIGHT
$27.83¢13 913
1
#8
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#9
90387-06170-00
COLLAR
$7.43¢3 713
1
#10
90183-061A7-00
NUT, SPRING
$6.99¢3 494
1
#11
B4C-28361-00-P4
PLATE, FRONT
$79.34¢39 669
1
#11
B4C-28361-00-P2
PLATE, FRONT
$78.19¢39 094
1
#11
B4C-28361-00-P5
PLATE, FRONT
$79.81¢39 906
1
#12
90167-05079-00
SCREW, TAPPING
$3.63¢1 813
1
#13
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#14
90183-061A7-00
NUT, SPRING
$6.99¢3 494
1
#15
B4C-84118-00-00
STAY, HEADLIGHT 1
$10.86¢5 431
1
#16
B4C-84119-00-00
STAY, HEADLIGHT 2
$10.86¢5 431
1
#17
90111-06172-00
BOLT, HEX. SOCKET BUTTON
$2.97¢1 487
1
#18
90387-06301-00
COLLAR
$4.45¢2 225
1
#19
90480-12015-00
GROMMET
$1.89¢944
1
#20
90201-06029-00
WASHER, PLATE
$5.54¢2 769
1
#21
B4C-84396-00-00
COVER
$15.88¢7 938
1
#22
1WS-28376-00-00
TRIM
$3.49¢1 744
1
#23
90149-06302-00
SCREW
$5.11¢2 556
1
#24
90179-06072-00
NUT
$6.14¢3 069
1
#25
90149-06328-00
SCREW
$5.11¢2 556
1
