FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

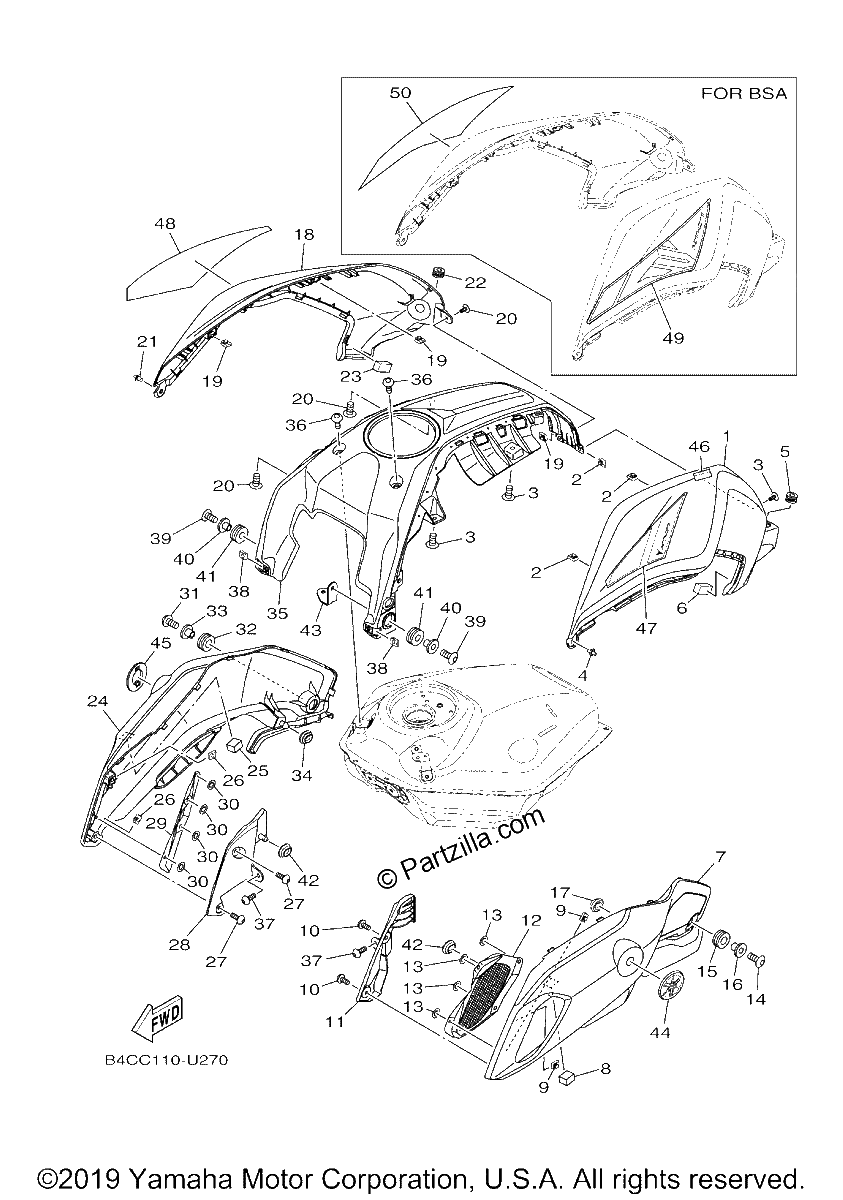

Diagrama de FUEL TANK 2

Repuestos

#1
B4C-24129-00-P5
COVER, SIDE 1
$100.15¢50 077
1
#1
B4C-24129-00-P2
COVER, SIDE 1 | UR FOR MDNM6
$87.00¢43 499
1
#1
B4C-24129-00-P4
COVER, SIDE 1 | UR FOR MLNM4
$98.80¢49 398
1
#2
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#3
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#4
90269-06008-00
RIVET
$8.10¢4 048
1
#5
90480-12497-00
GROMMET
$3.10¢1 553
1
#6
2C0-2414R-00-00
DAMPER, PLATE 6
$7.28¢3 640
1
#7
B4C-2137W-01-00
SCOOP, AIR 1 (replaces B4C-2137W-00-00)
$55.11¢27 554
1
#8
B4C-24181-00-00
DAMPER, LOCATING 1
$2.21¢1 104
1
#9
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#10
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#11
B4C-2836K-00-00
PANEL, INNER 1
$7.38¢3 691
1
#12
B4C-2837N-00-00
GRILL, AIR INTAKE 1
$42.62¢21 310
1
#13
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#14
90109-06317-00
bolt
$3.10¢1 553
1
#15
90480-17007-00
GROMMET
$6.92¢3 461
1
#16
90387-10107-00
COLLAR
$4.98¢2 490
1
#17
90480-01558-00
Grommet
$4.31¢2 156
1
#18
B4C-24139-00-P4
COVER, SIDE 2 | UR FOR MLNM4
$100.15¢50 077
1
#18
B4C-24139-00-P5
COVER, SIDE 2
$87.87¢43 936
1
#18
B4C-24139-00-P2
COVER, SIDE 2 | UR FOR MDNM6
$88.73¢44 367
1
#19
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#20
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#21
90269-06008-00
RIVET
$8.10¢4 048
1
#22
90480-12497-00
GROMMET
$3.10¢1 553
1
#23
2C0-2414R-00-00
DAMPER, PLATE 6
$7.28¢3 640
1
#24
B4C-2137X-01-00
SCOOP, AIR 2 (replaces B4C-2137X-00-00)
$55.11¢27 554
1
#25
B4C-24182-00-00
DAMPER, LOCATING 2
$2.21¢1 104
1
#26
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#27
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#28
B4C-2836L-00-00
PANEL, INNER 2
$7.38¢3 691
1
#29
B4C-2837R-00-00
GRILL, AIR INTAKE 2
$47.79¢23 897
1
#30
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#31
90109-06317-00
bolt
$3.10¢1 553
1
#32
90480-17007-00
GROMMET
$6.92¢3 461
1
#33
90387-10107-00
COLLAR
$4.98¢2 490
1
#34
90480-01558-00
Grommet
$4.31¢2 156
1
#35
B4C-2464E-00-00
COVER, CAP
$144.35¢72 174
1
#36
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
#37
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#38
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#39
90111-06084-00
BOLT, HEX. SOCKET BUTTON
$5.39¢2 697
1
#40
90387-07042-00
COLLAR
$4.54¢2 271
1
#41
90480-14452-00
GROMMET
$7.30¢3 651
1
#42
90480-01559-00
Grommet
$5.27¢2 633
1
#43
1WS-2463E-00-00
BRACKET, CAP
$4.70¢2 352
1
#44
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#45
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#46
1TP-2118K-A1-00
LABEL, CAUTION
$6.59¢3 295
1
#47
B4C-217F1-40-00
GRAPHIC, 1 | UR FOR MLNM4
$29.08¢14 542
1
#47
B4C-217F1-20-00
GRAPHIC, 1 | UR FOR MDNM6
$43.39¢21 695
1
#48
B4C-217F2-40-00
GRAPHIC, 2 | UR FOR MLNM4
$43.19¢21 597
1
#48
B4C-217F2-20-00
GRAPHIC, 2 | UR FOR MDNM6
$43.39¢21 695
1
#49
B4C-21788-00-00
GRAPHIC
$27.22¢13 610
1
#50
B4C-21789-00-00
GRAPHIC
$29.39¢14 697
1
