FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

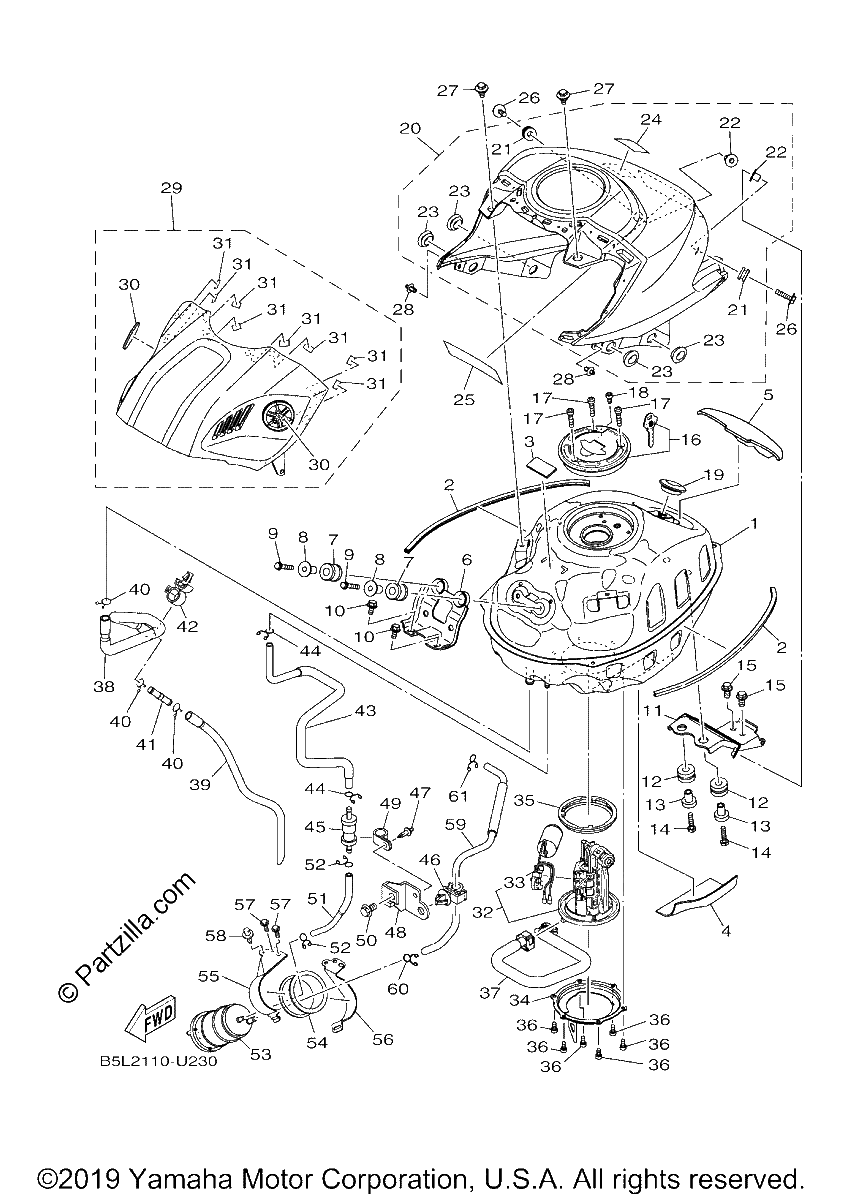

Diagrama de FUEL TANK

Repuestos

#1
BS7-F4110-00-00
FUEL TANK COMP.
$319.99¢159 994
1
#2
BS7-F4188-00-00
MOLD, FUEL TANK
$17.27¢8 638
1
#3
5D9-H2126-00-00
PAD, BATTERY (5D91)
$0.74¢369
1
#4
90520-02843-00
DAMPER, PLATE
$2.09¢1 044
1
#5
BS7-F414E-00-00
SEAL 2
$10.36¢5 181
1
#6
BS7-F412Y-00-00
BRACKET, TANK FITTING
$43.15¢21 575
1
#7
90480-18813-00
Grommet
$1.29¢644
1
#8
90387-068M3-00
Collar
$3.67¢1 838
1
#9
97022-06030-00
BOLT, HEXAGON
$3.57¢1 787
1
#10
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#11
BS7-F4191-10-00
BRACKET, FUEL TANK 1
$20.18¢10 088
1
#12
90480-15807-00
GROMMET
$1.36¢681
1
#13
90387-068S8-00
Collar
$1.36¢681
1
#14
97022-06030-00
BOLT, HEXAGON
$3.57¢1 787
1
#15
95022-08014-00
BOLT, FLANGE
$7.43¢3 713
1
#16
BS7-WF461-00-00
CAP ASSY
$118.90¢59 450
1
#17
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
1
#18
91312-05010-00
BOLT
$5.86¢2 931
1
#19
90480-01806-00
Grommet
$1.98¢988
1
#20
BS7-XF41D-00-P3
TANK SIDE COVER 1
$107.86¢53 931
1
#20
BS7-XF41D-10-P1
TANK SIDE COVER 1
$113.89¢56 944
1
#21
90480-12808-00
GROMMET
$2.95¢1 475
1
#22
90387-06899-00
COLLAR
$2.94¢1 469
1
#23
90480-01559-00
Grommet
$5.72¢2 863
1
#24
1TP-2118K-A1-00
LABEL, CAUTION
$7.16¢3 581
1
#25
90520-03841-00
DAMPER, PLATE
$2.36¢1 181
1
#26
90119-06M49-00
BOLT,WITH WASHER (replaces 90119-06M17-00)
$5.04¢2 519
1
#27
90109-068B2-00
BOLT (B9B1)
$0.49¢244
1
#28
90269-06816-00
RIVET
$1.71¢856
1
#29
BS7-XF17D-00-P1
COVER, TOP
$83.41¢41 706
1
#29
BS7-XF17D-00-P3
COVER, TOP
$83.41¢41 706
1
#30
1WD-F413B-00-00
EMBLEM
$10.56¢5 281
1
#31
31B-F8307-00-00
SEAL
$2.65¢1 325
1
#32
BS7-E3907-00-00
FUEL PUMP COMP.
$232.79¢116 394
1
#33
BS7-H5752-00-00
SENDER UNIT ASSY, FUEL METER
$129.45¢64 725
1
#34
BS7-F4491-00-00
Bracket, Fuel Pump
$11.14¢5 569
1
#35
3C1-F4486-00-00
O-RING
$44.56¢22 281
1
#36
91312-05010-00
BOLT
$5.86¢2 931
1
#37
1WD-E3971-01-00
PIPE, FUEL 1 (replaces 1WD-E3971-00-00)
$73.64¢36 819
1
#38
1WD-F4312-00-00
PIPE 2
$14.19¢7 094
1
#39
1WD-F4314-00-00
PIPE 4
$16.00¢8 000
1
#40
90467-15012-00
CLIP,SCISSOR
$5.61¢2 806
1
#41
1WD-F4376-00-00
PIPE, JOINT 1
$16.65¢8 325
1
#42
90464-16012-00
Clamp
$6.45¢3 225
1
#43
2MS-F4314-01-00
PIPE 4
$32.24¢16 119
1
#44
90467-090A2-00
Clip
$2.97¢1 487
1
#45
1DW-F4180-02-00
ROLL OVER VALVE ASSY
$89.56¢44 781
1
#46
90464-10008-00
CLAMP
$3.15¢1 575
1
#47
90269-05008-00
RIVET
$3.02¢1 513
1
#48
2MS-F419F-00-00
BRACKET, CANISTOR
No Disponible
1
#49
90464-15014-00
Clamp
$2.35¢1 175
1
#50
95027-08012-00
BOLT, SMALL FLANGE (replaces 9502M-08012-00)
$8.21¢4 106
1
#51
2MS-F4315-00-00
PIPE 5
$9.59¢4 794
1
#52
90467-090A2-00
Clip
$2.97¢1 487
1
#53
2MS-F4170-00-00
CANISTER ASSY
$155.65¢77 825
1
#54
2MS-F483H-00-00
BAND
$3.71¢1 856
1
#55
2MS-F115R-00-00
BRACKET, CANISTER
$14.59¢7 294
1
#56
2MS-F134X-00-00
BRACKET, CANISTER
$13.67¢6 837
1
#57
90105-06696-00
BOLT, FLANGE
$7.48¢3 738
1
#58
90269-06816-00
RIVET
$1.71¢856
1
#59
2MS-F4316-00-00
PIPE 6
$26.66¢13 331
1
#60
90467-11009-00
CLIP
$9.00¢4 500
1
#61
90467-090A2-00
Clip
$2.97¢1 487
1
