INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

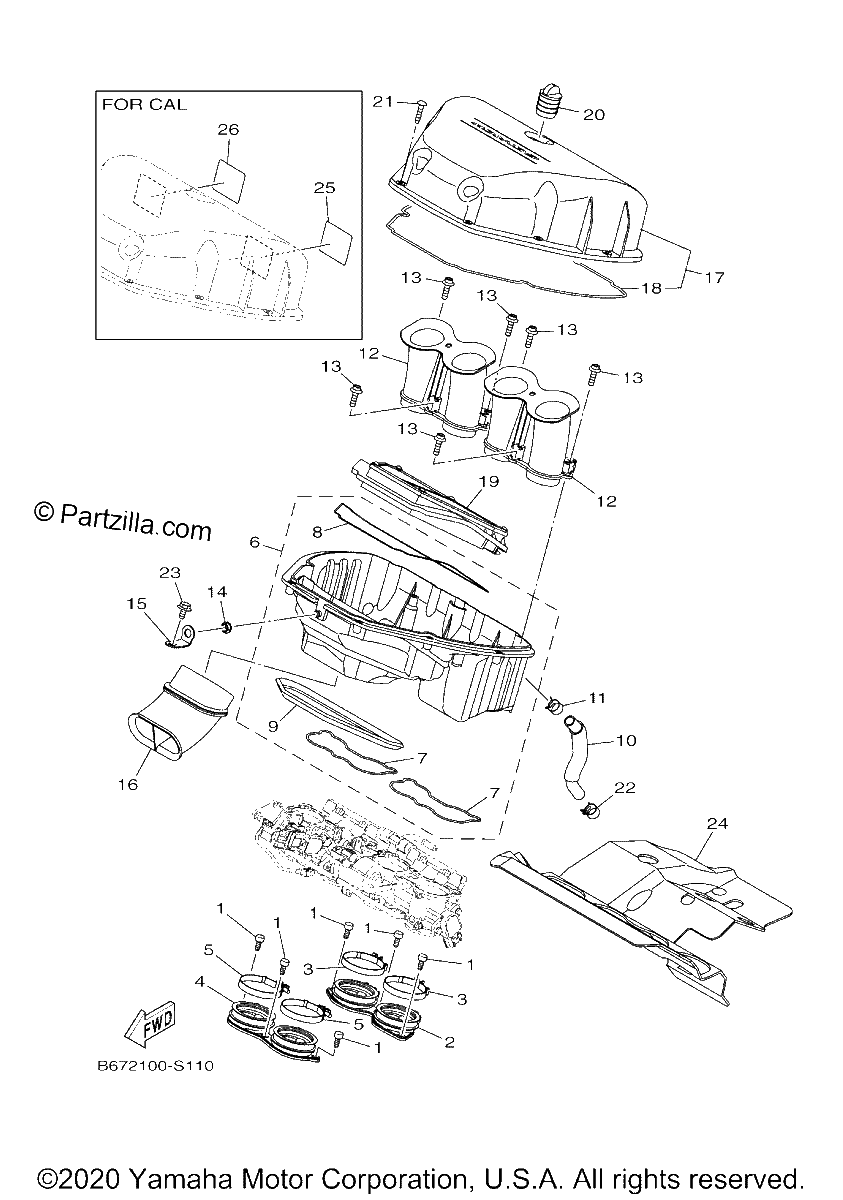

Diagrama de INTAKE

Repuestos

#1
91312-06014-00
bolt
$5.65¢2 825
1
#2
2CR-13635-00-00
JOINT, INTAKE 1
$62.73¢31 363
1
#3
90450-60004-00
HOSE CLAMP ASSY
$17.49¢8 744
1
#4
2CR-13636-00-00
JOINT, INTAKE 2
$62.73¢31 363
1
#5
90450-60004-00
HOSE CLAMP ASSY
$17.49¢8 744
1
#6
B67-14411-00-00
CASE, AIR CLEANER 1
$151.55¢75 775
1
#7
2CR-14457-00-00
SEAL
$7.34¢3 669
1
#8
2CR-14462-00-00
SEAL
$12.98¢6 488
1
#9
2CR-14425-00-00
DAMPER 1
$4.86¢2 431
1
#10
2CR-15393-00-00
PIPE, BREATHER 2
$16.06¢8 031
1
#11
90467-15001-00
CLIP
$7.05¢3 525
1
#12
B67-14469-00-00
FUNNEL, AIR
$55.77¢27 888
1
#13
90110-06163-00
BOLT, HEXAGON SOCKET
$9.13¢4 563
1
#14
90480-12010-00
GROMMET
$6.42¢3 213
1
#15
B67-14498-00-00
STAY 1
$7.21¢3 606
1
#16
B67-14437-00-00
DUCT
$56.76¢28 381
1
#17
B67-14421-00-00
CASE, AIR CLEANER 2
$128.16¢64 081
1
#18
2CR-14452-00-00
SEAL
$21.39¢10 694
1
#19
2CR-14451-00-00
ELEMENT, AIR CLEANER
$41.60¢20 800
1
#20
5VY-14862-00-00
PLUG
$10.81¢5 406
1
#21
90160-05013-00
SCREW, ROUND TAPPING
$7.34¢3 669
1
#22
90467-160A6-00
CLIP
$3.57¢1 787
1
#23
90119-06051-00
BOLT, WITH WASHER
$7.49¢3 744
1
#24
2CR-12682-10-00
PROTECTOR, HEAT
$78.26¢39 131
1
#25
14B-21684-00-00
PLATE, ROUTING | FOR CALIFORNIA
$4.70¢2 350
1
#26
2CR-21686-00-00
PLATE, ROUTING 2 | FOR CALIFORNIA
$8.75¢4 375
1
