FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

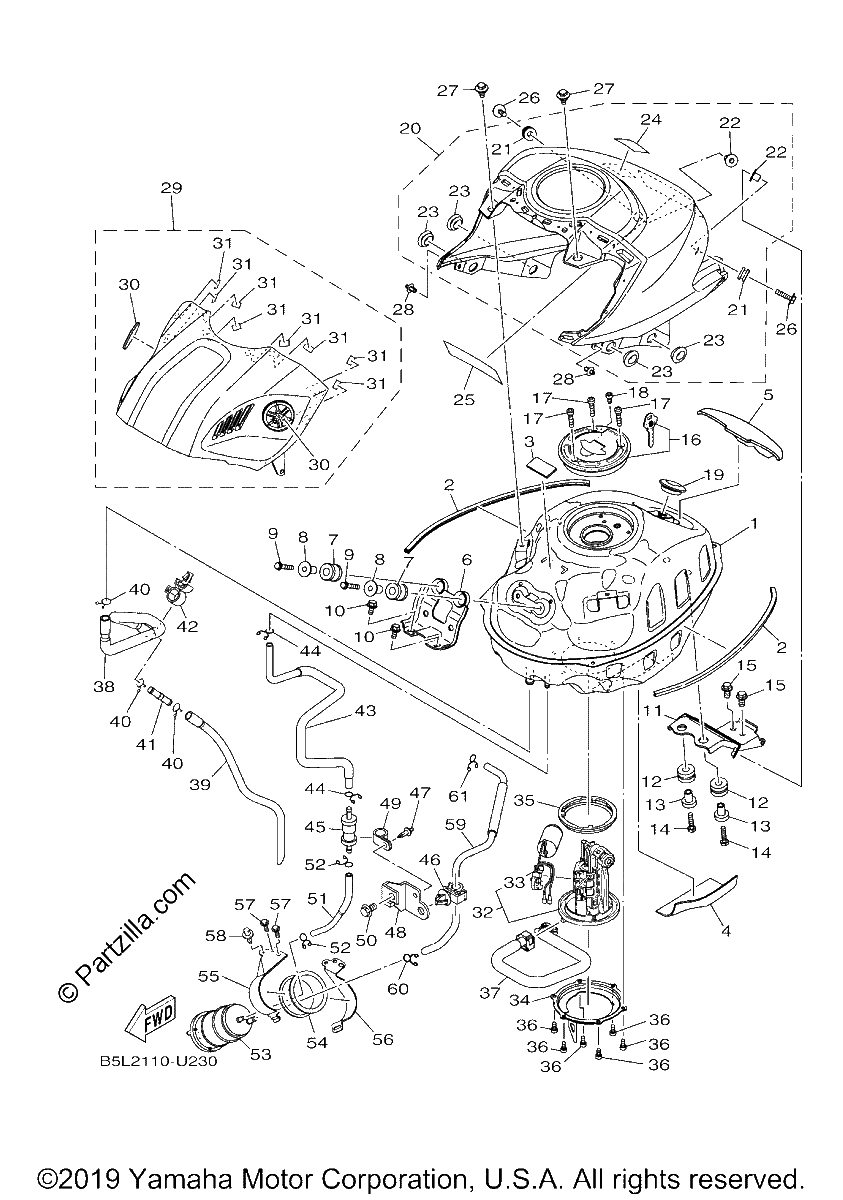

Diagrama de FUEL TANK

Repuestos

#1
BS7-F4110-00-00
FUEL TANK COMP.
$294.39¢147 194
1
#2
BS7-F4188-00-00
MOLD, FUEL TANK
$15.89¢7 946
1
#3
5D9-H2126-00-00
PAD, BATTERY (5D91)
$0.68¢339
1
#4
90520-02843-00
DAMPER, PLATE
$1.92¢960
1
#5
BS7-F414E-00-00
SEAL 2
$9.53¢4 767
1
#6
BS7-F412Y-00-00
BRACKET, TANK FITTING
$39.70¢19 849
1
#7
90480-18813-00
Grommet
$1.18¢592
1
#8
90387-068M3-00
Collar
$3.38¢1 691
1
#9
97022-06030-00
BOLT, HEXAGON
$3.29¢1 644
1
#10
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#11
BS7-F4191-10-00
BRACKET, FUEL TANK 1
$18.56¢9 281
1
#12
90480-15807-00
GROMMET
$1.25¢627
1
#13
90387-068S8-00
Collar
$1.25¢627
1
#14
97022-06030-00
BOLT, HEXAGON
$3.29¢1 644
1
#15
95022-08014-00
BOLT, FLANGE
$6.83¢3 415
1
#16
BS7-WF461-00-00
CAP ASSY
$109.39¢54 694
1
#17
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#18
91312-05010-00
BOLT
$5.39¢2 697
1
#19
90480-01806-00
Grommet
$1.82¢909
1
#20
BS7-XF41D-00-P3
TANK SIDE COVER 1
$99.23¢49 617
1
#20
BS7-XF41D-10-P1
TANK SIDE COVER 1
$104.78¢52 388
1
#21
90480-12808-00
GROMMET
$2.71¢1 357
1
#22
90387-06899-00
COLLAR
$2.70¢1 351
1
#23
90480-01559-00
Grommet
$5.27¢2 633
1
#24
1TP-2118K-A1-00
LABEL, CAUTION
$6.59¢3 295
1
#25
90520-03841-00
DAMPER, PLATE
$2.17¢1 087
1
#26
90119-06M49-00
BOLT,WITH WASHER (replaces 90119-06M17-00)
$4.63¢2 317
1
#27
90109-068B2-00
BOLT (B9B1)
$0.45¢224
1
#28
90269-06816-00
RIVET
$1.58¢788
1
#29
BS7-XF17D-00-P1
COVER, TOP
$76.74¢38 370
1
#29
BS7-XF17D-00-P3
COVER, TOP
$76.74¢38 370
1
#30
1WD-F413B-00-00
EMBLEM
$9.72¢4 859
1
#31
31B-F8307-00-00
SEAL
$2.44¢1 219
1
#32
BS7-E3907-00-00
FUEL PUMP COMP.
$214.16¢107 082
1
#33
BS7-H5752-00-00
SENDER UNIT ASSY, FUEL METER
$119.09¢59 547
1
#34
BS7-F4491-00-00
Bracket, Fuel Pump
$10.25¢5 123
1
#35
3C1-F4486-00-00
O-RING
$41.00¢20 499
1
#36
91312-05010-00
BOLT
$5.39¢2 697
1
#37
1WD-E3971-01-00
PIPE, FUEL 1 (replaces 1WD-E3971-00-00)
$67.75¢33 873
1
#38
1WD-F4312-00-00
PIPE 2
$13.05¢6 526
1
#39
1WD-F4314-00-00
PIPE 4
$14.72¢7 360
1
#40
90467-15012-00
CLIP,SCISSOR
$5.16¢2 582
1
#41
1WD-F4376-00-00
PIPE, JOINT 1
$15.32¢7 659
1
#42
90464-16012-00
Clamp
$5.93¢2 967
1
#43
2MS-F4314-01-00
PIPE 4
$29.66¢14 829
1
#44
90467-090A2-00
Clip
$2.74¢1 368
1
#45
1DW-F4180-02-00
ROLL OVER VALVE ASSY
$82.40¢41 199
1
#46
90464-10008-00
CLAMP
$2.90¢1 449
1
#47
90269-05008-00
RIVET
$2.78¢1 392
1
#48
2MS-F419F-00-00
BRACKET, CANISTOR
No Disponible
1
#49
90464-15014-00
Clamp
$2.16¢1 081
1
#50
95027-08012-00
BOLT, SMALL FLANGE (replaces 9502M-08012-00)
$7.56¢3 778
1
#51
2MS-F4315-00-00
PIPE 5
$8.82¢4 410
1
#52
90467-090A2-00
Clip
$2.74¢1 368
1
#53
2MS-F4170-00-00
CANISTER ASSY
$143.20¢71 599
1
#54
2MS-F483H-00-00
BAND
$3.42¢1 708
1
#55
2MS-F115R-00-00
BRACKET, CANISTER
$13.42¢6 710
1
#56
2MS-F134X-00-00
BRACKET, CANISTER
$12.58¢6 290
1
#57
90105-06696-00
BOLT, FLANGE
$6.88¢3 439
1
#58
90269-06816-00
RIVET
$1.58¢788
1
#59
2MS-F4316-00-00
PIPE 6
$24.53¢12 265
1
#60
90467-11009-00
CLIP
$8.28¢4 140
1
#61
90467-090A2-00
Clip
$2.74¢1 368
1
