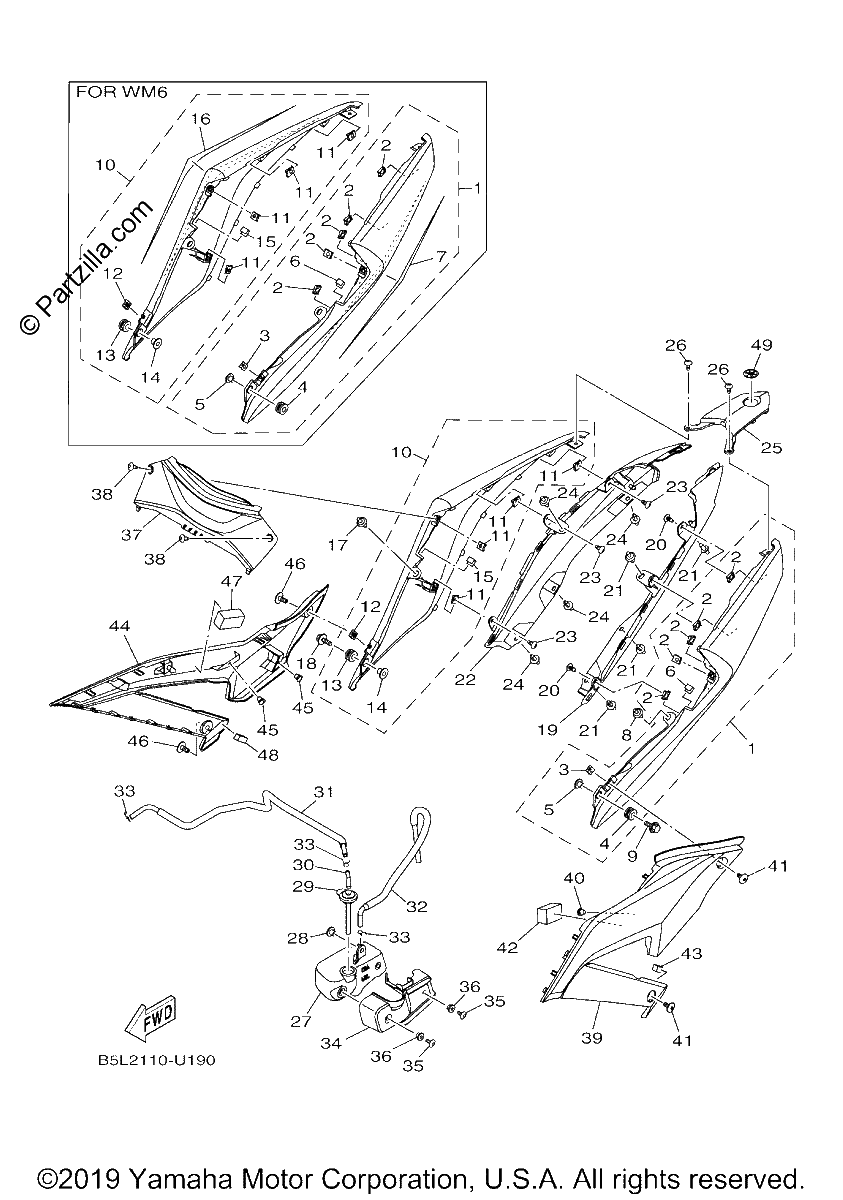

SIDE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, SIDE 1
$55.57¢27 784
#1
COVER, SIDE 1
$42.03¢21 016
#2
NUT, SPRING
$1.15¢575
#3
NUT, SPRING
$2.86¢1 432
#4
GROMMET
$2.71¢1 357
#5
COLLAR
$2.70¢1 351
#6
SEAL
$2.44¢1 219
#7
. . GRAPHIC, 1
$7.28¢3 640
#8
RIVET
$1.58¢788
#9
BOLT,WITH WASHER
$3.38¢1 691
#10
COVER, SIDE 2
$55.57¢27 784
#10
COVER, SIDE 2
$41.68¢20 838
#11
NUT, SPRING
$1.15¢575
#12
NUT, SPRING
$2.86¢1 432
#13
GROMMET
$2.71¢1 357
#14
COLLAR
$2.70¢1 351
#15
SEAL
$2.44¢1 219
#16
. . GRAPHIC, 2
$4.39¢2 197
#17
RIVET
$1.58¢788
#18
BOLT,WITH WASHER
$3.38¢1 691
#19
MOLE, SIDE COVER 1
$4.30¢2 151
#20
SCREW, TRUSS HEAD TAPPING
$1.58¢788
#21
RIVET
$1.58¢788
#22
MOLE, SIDE COVER 2
$16.09¢8 044
#23
SCREW, TRUSS HEAD TAPPING
$1.58¢788
#24
RIVET
$1.58¢788
#25
MOLE, SIDE COVER 3
$11.73¢5 865
#26
SCREW, TRUSS HEAD TAPPING
$1.58¢788
#27
TANK, RECOVERY (replaces 1WD-F1871-00-00)
$23.01¢11 506
#28
COLLAR
$1.18¢592
#29
CAP
$3.30¢1 650
#30
ELBOW
$24.05¢12 023
#31
PIPE 1
$11.49¢5 744
#32
PIPE 2
$7.28¢3 640
#33
CLIP
$6.90¢3 450
#34
Cover
$18.50¢9 252
#35
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
#36
SPACER
$7.30¢3 651
#37
COVER, SIDE 3
$15.21¢7 607
#37
COVER, SIDE 3 | Use for Color Black Metallic X ( SMX / 0903 )
$40.01¢20 004
#38
SCREW, ROUND TAPPING
$1.74¢868
#39
COVER, SIDE 5
$27.83¢13 915
#40
PLUG
$6.22¢3 111
#41
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
#42
DAMPER, PLATE
$2.47¢1 236
#43
DAMPER, PLATE
$1.21¢604
#44
COVER, SIDE 6
$9.12¢4 560
#45
PLUG
$6.22¢3 111
#46
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
#47
DAMPER, PLATE
$2.47¢1 236
#48
DAMPER, PLATE
$1.21¢604
#49
TUNING FORK MARK
$31.65¢15 824
