FENDER

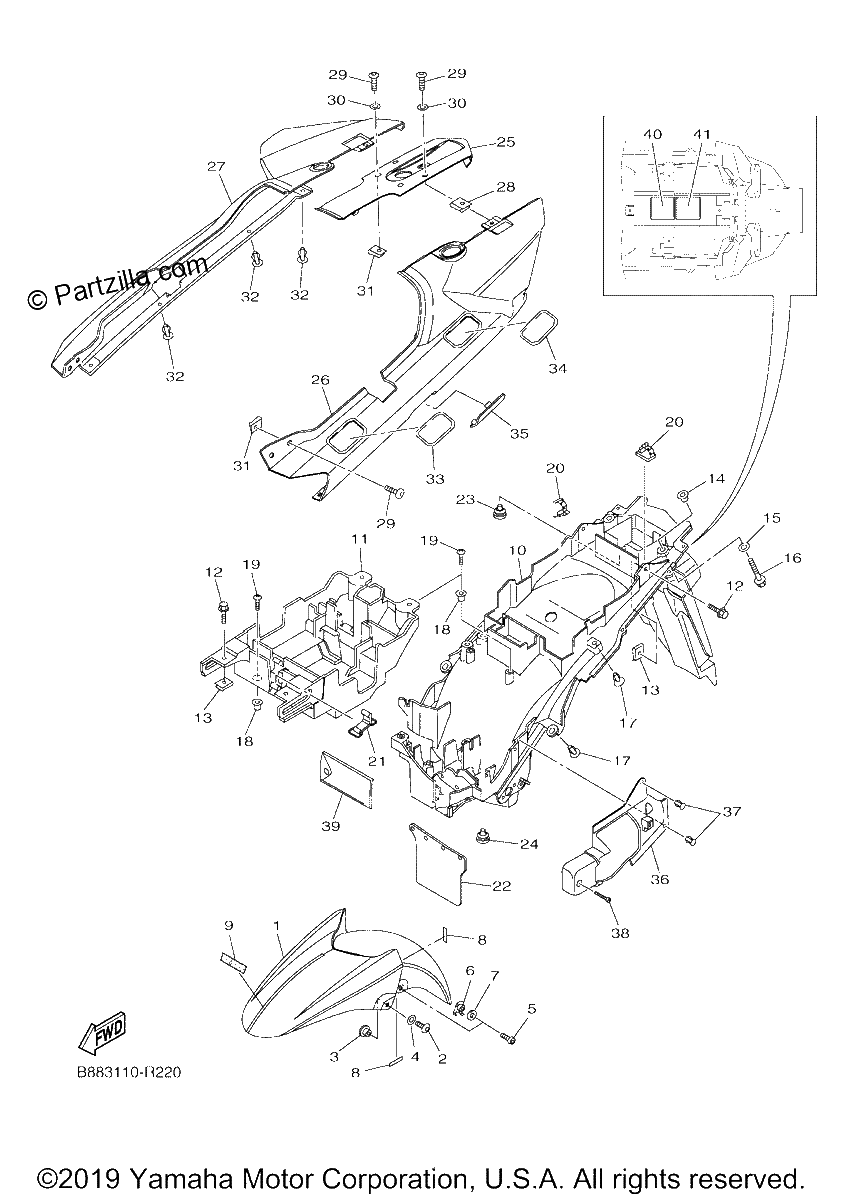

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FENDER, FRONT
$132.32¢66 163
#2
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#3
COLLAR
$7.72¢3 863
#4
WASHER, PLATE
$2.20¢1 100
#5
BOLT, BUTTON HEAD
$7.48¢3 738
#6
NUT 1
$23.98¢11 988
#7
DAMPER 1
$7.08¢3 538
#8
DAMPER
$6.45¢3 225
#9
EMBLEM, YAMAHA
$5.34¢2 669
#10
FENDER, REAR
$182.39¢91 194
#11
BOX
$157.44¢78 719
#12
BOLT, WITH WASHER
$7.48¢3 738
#13
NUT, SPRING
$7.72¢3 863
#14
COLLAR
$5.40¢2 700
#15
WASHER, PLATE
$8.45¢4 225
#16
Bolt, Flange
$5.41¢2 706
#17
RIVET
$6.78¢3 388
#18
PLUG
$1.94¢969
#19
SCREW, TAPPING
$0.41¢206
#20
CLAMP
$4.59¢2 294
#21
BAND
$9.00¢4 500
#22
FLAP
$24.11¢12 056
#23
GROMMET
No Disponible
#24
GROMMET
No Disponible
#25
COVER, REAR FENDER
$223.61¢111 806
#26
COVER, TAIL 1
$179.05¢89 525
#27
COVER, TAIL 2
$260.88¢130 438
#28
NUT, SPRING
$3.17¢1 588
#29
BOLT, HEX. SOCKET BUTTON
$7.72¢3 863
#30
WASHER, PLATE
$7.66¢3 831
#31
NUT, SPRING
$5.30¢2 650
#32
RIVET
$6.78¢3 388
#33
COVER, REAR FENDER
$39.26¢19 631
#34
COVER, REAR FENDER
$39.26¢19 631
#35
COVER, REAR FENDER
$39.01¢19 506
#36
COVER, REAR FENDER 1
$15.81¢7 906
#37
RIVET
$6.78¢3 388
#38
SCREW, TAPPING
$2.42¢1 213
#39
TOOL KIT
$18.49¢9 244
#40
PLATE, ROUTING | FOR CALIFORNIA
$10.19¢5 094
#41
PLATE, ROUTING 2 | FOR CALIFORNIA
$10.77¢5 387
