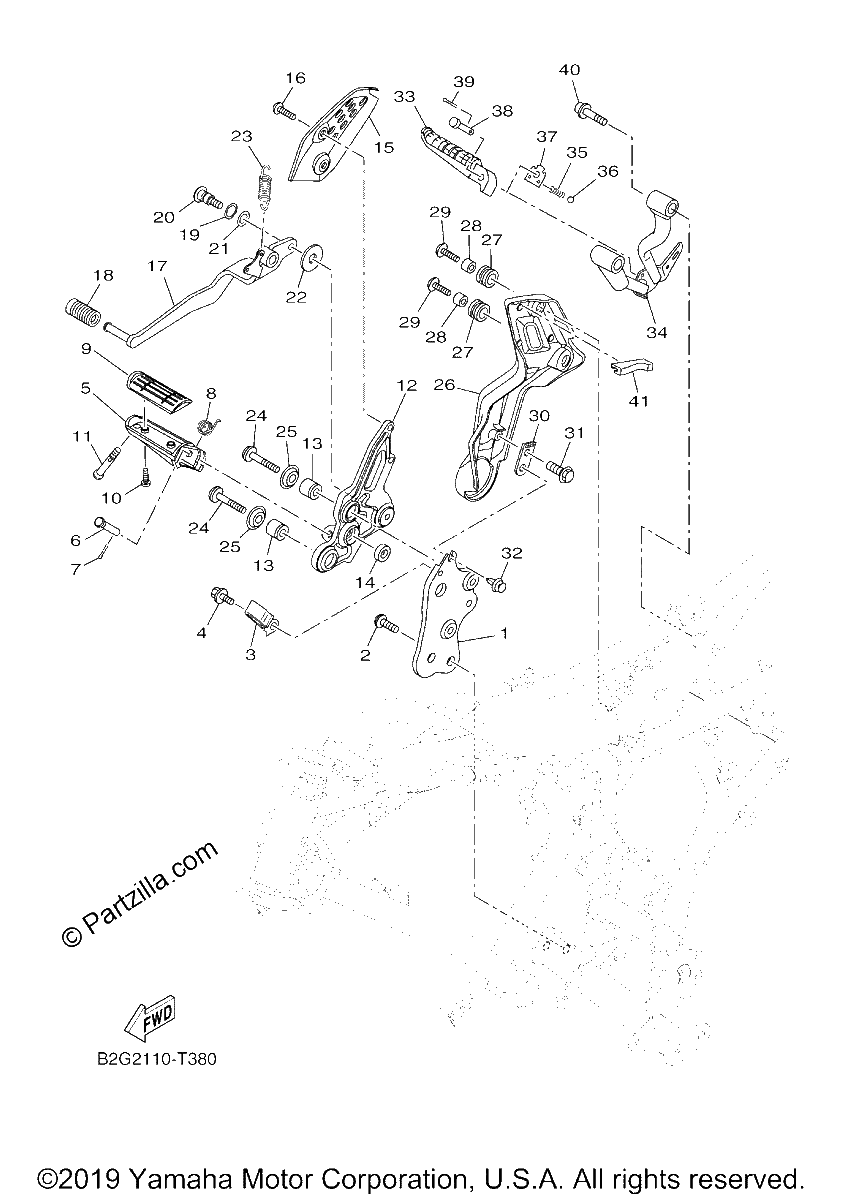

STAND FOOTREST 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BRACKET, ADAPTER 2
$87.40¢43 700
#2
BOLT, HEX. SOCKET BUTTON
$5.50¢2 750
#3
CLAMP
$13.86¢6 931
#4
BOLT, FLANGE
$6.49¢3 244
#5
FOOTREST
$37.71¢18 856
#6
PIN, CLEVIS
$4.84¢2 419
#7
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#8
SPRING, TORSION
$1.57¢788
#9
COVER, FOOTREST
$30.05¢15 025
#10
SCREW, PAN HEAD
$8.74¢4 369
#11
BOLT
$6.14¢3 069
#12
BRACKET 3 | UR FOR BNS4
$100.69¢50 344
#13
DAMPER, FOOTREST
$25.92¢12 962
#14
STOPPER, MAIN STAND
$7.86¢3 931
#15
PLATE 2 | UR FOR BNS4
$47.40¢23 700
#16
BOLT, BUTTON HEAD
$6.99¢3 494
#17
PEDAL, BRAKE
$75.66¢37 831
#18
COVER, SHIFT PEDAL
$5.34¢2 669
#19
WASHER,WAVE
$8.31¢4 156
#20
BOLT
$3.04¢1 519
#21
WASHER, PLATE
$7.48¢3 738
#22
WASHER, PLATE
$6.94¢3 469
#23
SPRING, TENSION
$7.03¢3 513
#24
BOLT, HEXAGON SOCKET HEAD
$8.34¢4 169
#25
WASHER
$7.94¢3 969
#26
COVER 2
$111.31¢55 656
#27
GROMMET
$7.43¢3 713
#28
Collar
$5.14¢2 569
#29
BOLT,HEX. SOCKET BUTTON
$3.74¢1 869
#30
BRACKET, FOOTREST 2
$6.99¢3 494
#31
BOLT,FLANGE (replaces 95802-06010-00)
$3.39¢1 694
#32
RIVET
$1.93¢963
#33
FOOTREST, REAR 2
$29.66¢14 831
#34
BRACKET 5
$221.28¢110 638
#35
SPRING, COMPRESSION
$3.81¢1 906
#36
BALL
$7.46¢3 731
#37
WASHER, SPECIAL
$7.99¢3 994
#38
PIN,CLEVIS
$8.92¢4 462
#39
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#40
Bolt, Flange
$9.91¢4 956
#41
Damper
$17.68¢8 838
