ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

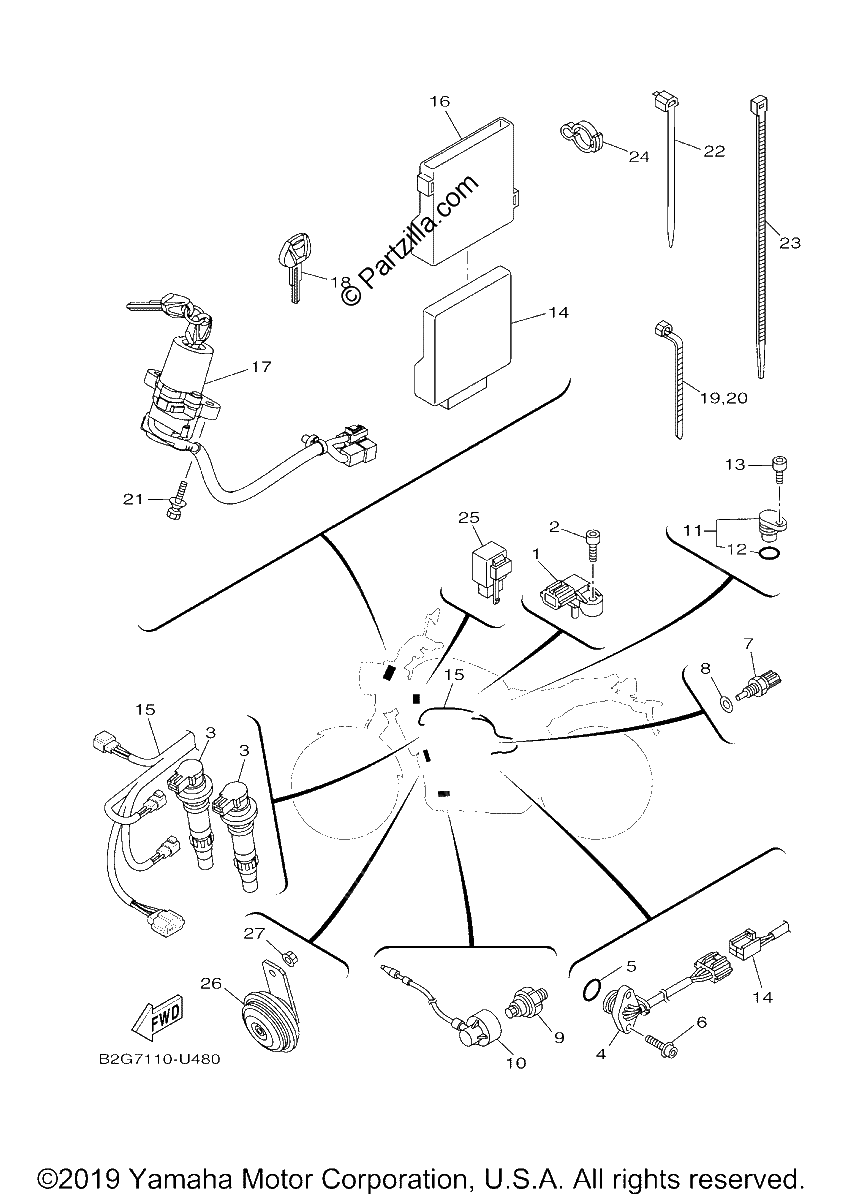

Diagrama de ELECTRICAL 2

Repuestos

#1
1WS-82380-00-00
Sensor, Pressure
$203.69¢101 844
1
#2
91317-05020-00
bolt
$2.95¢1 475
1
#3
1WS-82310-00-00
IGNITION COIL ASSY
$113.47¢56 738
1
#4
1WS-82540-00-00
NEUTRAL SWITCH ASS
$76.59¢38 294
1
#5
93210-21001-00
O-RING
$5.69¢2 844
1
#6
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#7
54P-H3591-00-00
THERMO UNIT (replaces 4P9-83591-00-00)
$34.40¢17 200
1
#8
90430-10004-00
GASKET
$7.08¢3 538
1
#9
1WS-82504-00-00
OIL PRESSURE SWITC
$72.81¢36 406
1
#10
1WS-81315-00-00
LEAD WIRE ASSY
$19.82¢9 913
1
#11
3P6-15399-00-00
PLUG, BLIND
$21.85¢10 925
1
#12
93210-15566-00
O-RING
$6.88¢3 438
1
#13
91312-06016-00
BOLT
$5.84¢2 919
1
#14
2RC-8591A-20-00
ENGINE CONTROL UNIT
$781.21¢390 606
1
#15
B2G-82309-00-00
WIRE, SUB LEAD
$141.19¢70 594
1
#16
B34-H5546-00-00
BAND
$49.34¢24 669
1
#17
B2G-82501-00-00
MAIN SWITCH STEERING LOCK
$227.53¢113 763
1
#18
4BH-82511-09-00
BLANK KEY | AP
$29.11¢14 556
1
#19
90464-25004-00
Clamp
$2.81¢1 406
1
#20
90464-25004-00
Clamp
$2.81¢1 406
1
#21
90109-08196-00
BOLT
$7.35¢3 675
1
#22
437-83936-11-00
BAND, SWITCH CORD
$4.26¢2 131
1
#23
90464-65001-00
CLAMP
$5.99¢2 994
1
#24
90464-10233-00
CLAMP
$7.56¢3 781
1
#25
5C4-83350-01-00
FLASHER RELAY ASSY (replaces 5C4-83350-00-00)
$73.35¢36 675
1
#26
1WS-83371-00-00
HORN
$64.67¢32 338
1
#27
95707-06500-00
NUT, FLANGE
$0.94¢469
1
