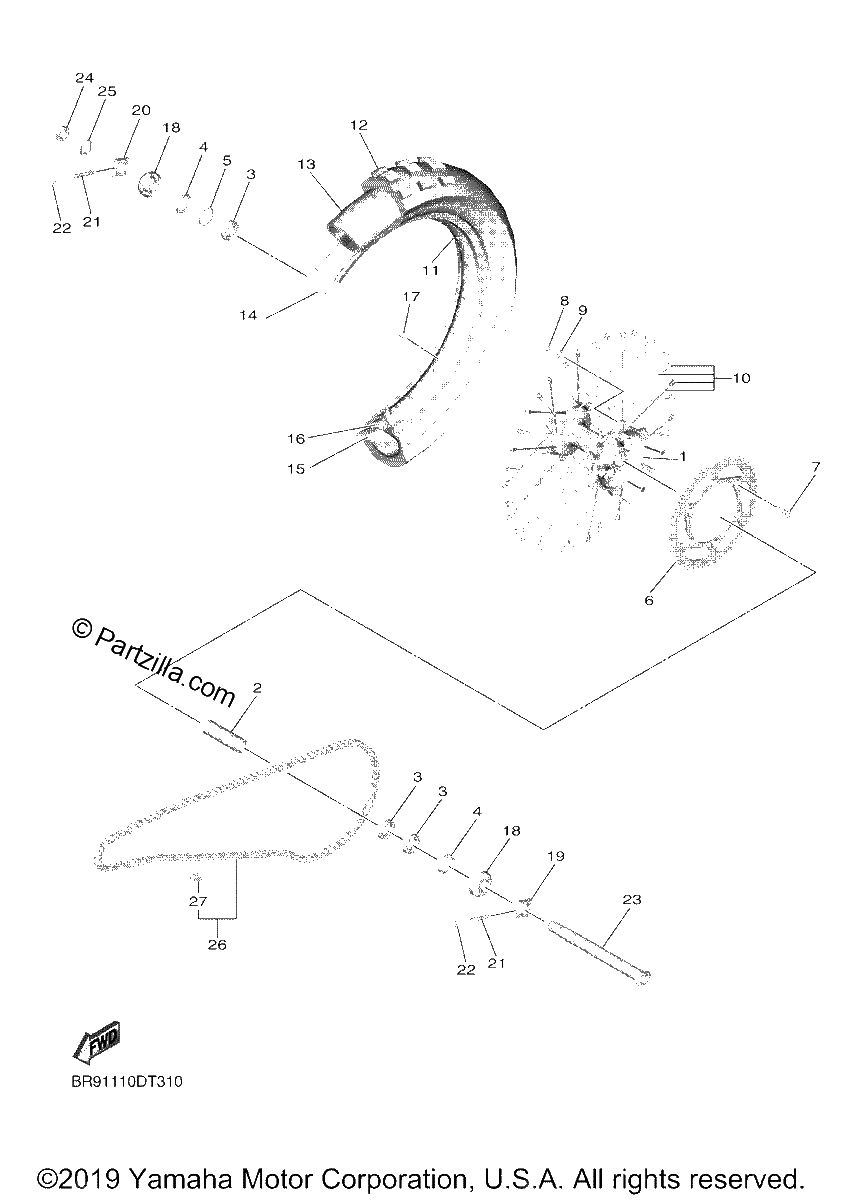

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
Hub, Rear
$351.10¢175 550
#2
SPACER, bearing
$46.33¢23 163
#3
BEARING
$47.27¢23 638
#4
OIL SEAL,SD-TYPE (replaces 93102-32337-00)
$19.44¢9 719
#5
Circlip
$7.43¢3 713
#6
SPROCKET, DRIVEN (48T)
$108.60¢54 300
#6
SPROCKET, DRIVEN (50T)
$95.88¢47 938
#6
SPROCKET, DRIVEN (51T)
$112.49¢56 244
#6
SPROCKET, DRIVEN (52T)
$112.49¢56 244
#6
SPROCKET, DRIVEN (47T)
$85.10¢42 550
#6
SPROCKET, DRIVEN (49T)
$85.10¢42 550
#7
bolt
$3.39¢1 694
#8
NUT, SELF-LOCKING
$7.16¢3 581
#9
WASHER, plate
$6.88¢3 438
#10
SPOKE SET, REAR
$215.81¢107 906
#11
RIM (2.15-19)
$397.67¢198 837
#11
RIM (2.15-19)
$397.67¢198 837
#12
TIRE (120/80-19 63M MX3S)
No Disponible
#13
TUBE 110/90-19
$61.46¢30 731
#14
BAND,RIM 110/90-19
$17.49¢8 744
#15
SPACER,BEAD
$39.71¢19 856
#16
Damper
$7.91¢3 956
#17
GROMMET (replaces 90480-08608-00)
$8.06¢4 031
#18
COLLAR ASSY
$41.14¢20 569
#19
PULLER, CHAIN 1
$34.84¢17 419
#20
PULLER, CHAIN 2
$31.69¢15 844
#21
bolt
$8.01¢4 006
#22
Nut
$6.23¢3 113
#23
AXLE, WHEEL
$94.56¢47 281
#24
NUT, SELF-LOCKING
$32.30¢16 150
#25
WASHER, plate
$7.03¢3 513
#26
CHAIN(DID 520DMA4 (replaces 9Y582-28113-00) This item has been discontinued and may not be available. Contact us for more information.
$171.00¢85 500
#27
JOINT, CHAIN
$7.65¢3 825
