CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

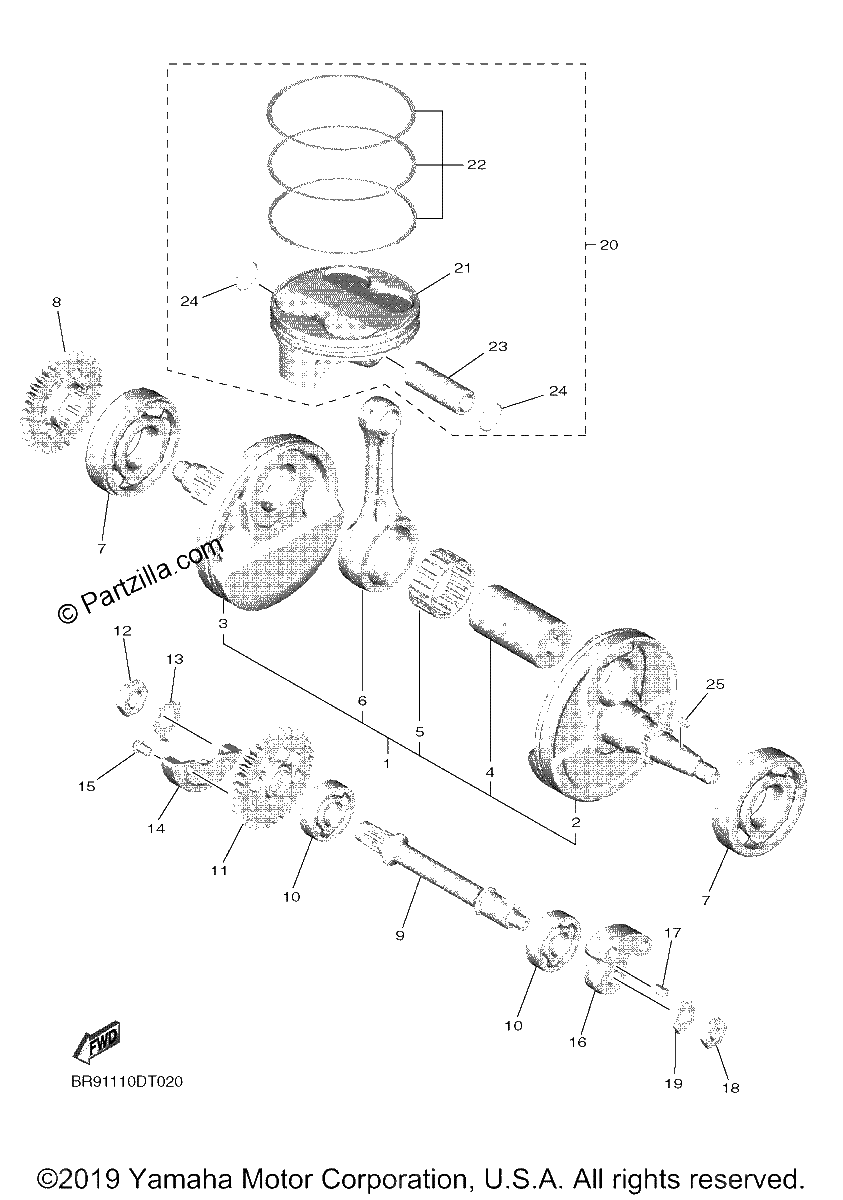

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
BR9-11400-00-00
Crankshaft Assy
$786.59¢393 294
1
#2
BR9-11412-00-00
CRANK 1
$306.53¢153 266
1
#3
BR9-11422-00-00
CRANK 2
$337.40¢168 699
1
#4
5TG-11681-01-00
PIN, CRANK 1
$82.21¢41 107
1
#5
93310-63458-00
BEARING
$118.47¢59 236
1
#6
33D-11651-03-00
ROD, CONNECTING
$125.82¢62 911
1
#7
93306-30633-00
BEARING
$96.57¢48 283
1
#8
2S2-11536-00-00
GEAR, DRIVE
$92.16¢46 080
1
#9
BR9-11455-00-00
SHAFT 1
$169.66¢84 830
1
#10
93306-20335-00
BEARING
$33.48¢16 738
1
#11
2S2-11531-10-00
GEAR, BALANCE WEIGHT
$184.02¢92 012
1
#12
90170-14171-00
NUT
$7.95¢3 973
1
#13
90215-14287-00
WASHER, LOCK
$4.84¢2 421
1
#14
33D-11454-00-00
WEIGHT 1
$82.17¢41 084
1
#15
90149-06084-00
SCREW | FOR CALIFORNIA
$7.04¢3 519
1
#16
33D-11464-00-00
WEIGHT 2
$83.51¢41 757
1
#17
90282-05034-00
KEY, STRAIGHT
$9.12¢4 560
1
#18
90170-10013-00
Nut
$10.96¢5 480
1
#19
90215-10009-00
WASHER, LOCK
$12.67¢6 336
1
#20
BR9-116A0-00-00
Piston Assy
$187.93¢93 966
1
#21
BR9-11631-00-00
PISTON (Std)
$160.48¢80 241
1
#22
33D-11603-00-00
PISTON RING SET (STD)
$60.89¢30 446
1
#23
BR9-11633-00-00
Pin, Piston
$64.88¢32 441
1
#24
93450-19052-00
CIRCLIP
$5.58¢2 789
1
#25
90280-03006-00
KEY, WOODRUFF
$7.44¢3 720
1
