CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

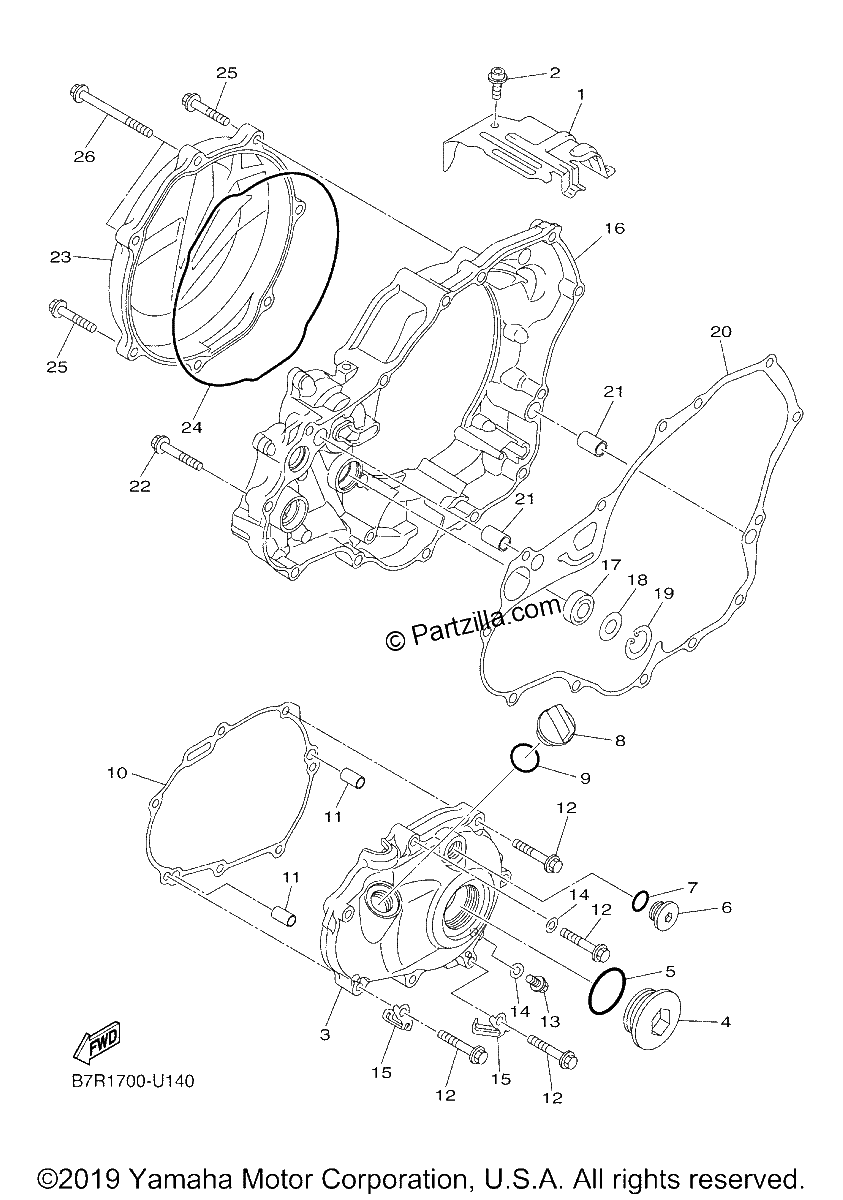

Diagrama de CRANKCASE COVER 1

Repuestos

#1
B3J-15436-00-00
COVER, STARTING MOTOR
$41.17¢20 585
1
#2
90110-06427-00
BOLT, HEXAGON SOCKET HEAD
$1.75¢874
1
#3
BR9-15411-00-00
COVER, CRANKCASE 1
$151.64¢75 820
1
#4
90340-36007-00
PLUG, STRAIGHT SCREW
$23.98¢11 989
1
#5
93210-357A3-00
O-RING
$0.54¢270
1
#6
90340-14021-00
PLUG, STRAIGHT SCREW (replaces 90340-14020-00)
$29.39¢14 697
1
#7
93210-14369-00
O-Ring
$6.36¢3 180
1
#8
3Y1-15363-10-00
PLUG, OIL
$18.72¢9 361
1
#9
93210-19123-00
O-Ring
$7.58¢3 789
1
#10
BR9-15451-00-00
GASKET, CRANKCASE COVER 1
$11.73¢5 865
1
#11
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#12
95022-06030-00
BOLT, FLANGE
$1.54¢771
1
#13
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#14
90430-06014-00
GASKET
$7.59¢3 795
1
#15
90465-08062-00
CLAMP
$4.05¢2 024
1
#16
BR9-15431-00-00
COVER, CRANKCASE 3
$192.21¢96 105
1
#17
93101-14164-00
OIL SEAL
$10.63¢5 313
1
#18
90201-15701-00
WASHER, PLATE (T=1.0)
$6.75¢3 375
1
#19
99009-22500-00
CIRCLIP
$6.76¢3 381
1
#20
BR9-15462-00-00
GASKET, CRANKCASE COVER 3
$28.04¢14 018
1
#21
99530-12016-00
PIN, DOWEL
$4.52¢2 260
1
#22
95022-06030-00
BOLT, FLANGE
$1.54¢771
1
#23
33D-15415-20-00
COVER, 1
$134.08¢67 039
1
#24
33D-15453-00-00
GASKET | INCL. IN BOTTOM END GASKET KIT
$27.01¢13 507
1
#25
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#26
95022-06070-00
BOLT, FLANGE
$2.21¢1 104
1
