FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

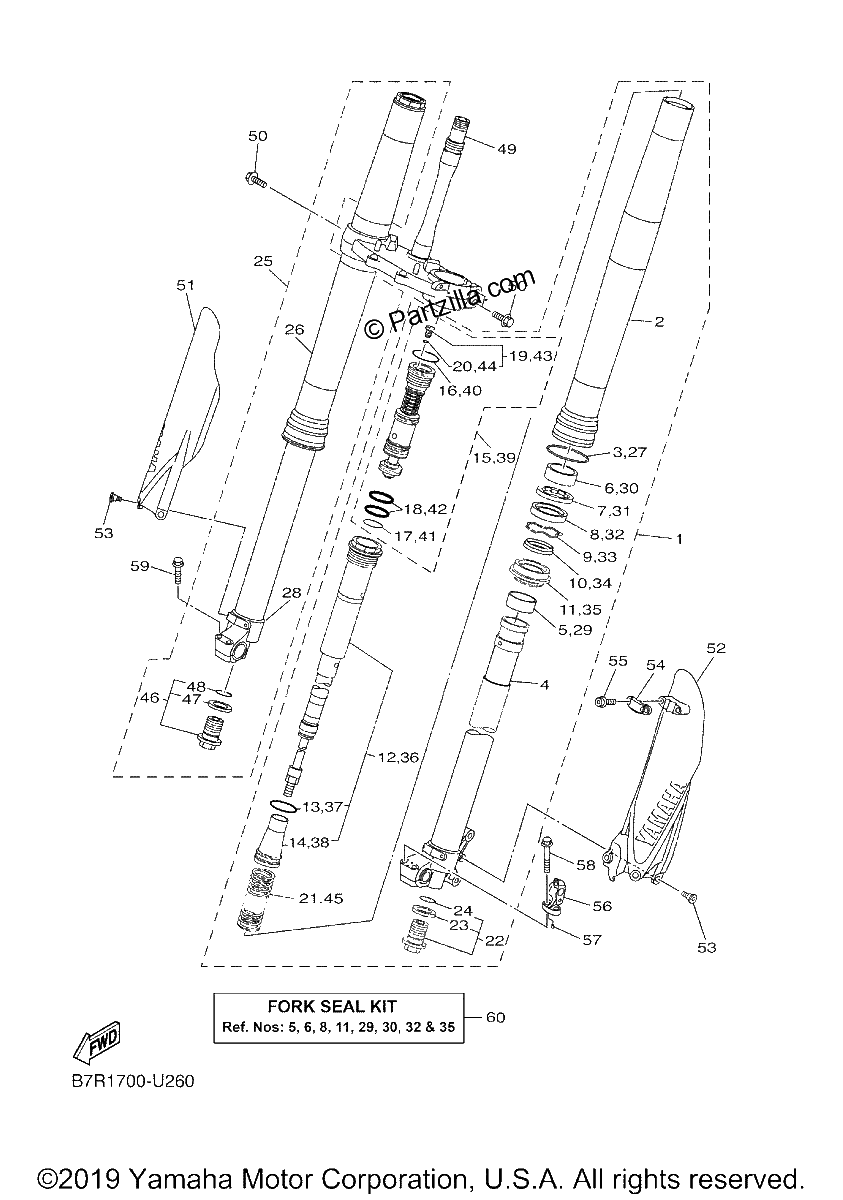

Diagrama de FRONT FORK

Repuestos

#1
B7R-23102-00-00
FRONT FORK ASSY (L.H)
$1226.24¢613 119
1
#2
33D-23136-00-00
TUBE, OUTER
$893.74¢446 869
1
#3
17D-23153-00-00
RING, SNAP
$4.97¢2 488
1
#4
B7R-23120-00-00
INNER TUBE COMP.2
$460.45¢230 225
1
#5
5XE-23171-L0-00
PISTON, FRONT FORK
$24.64¢12 319
1
#6
5XE-23125-L0-00
METAL, SLIDE 1
$25.02¢12 513
1
#7
5XC-23146-10-00
WASHER, OIL SEAL
$12.61¢6 306
1
#8
B29-23145-00-00
Oil Seal
$23.64¢11 819
1
#9
5XE-23153-L0-00
RING, SNAP
$7.65¢3 825
1
#10
B29-4381D-00-00
SCRAPER
$19.71¢9 856
1
#11
5XE-23144-L0-00
SEAL, DUST
$22.95¢11 475
1
#12
B7R-23170-00-00
CYLINDER COMP., front fork
$843.74¢421 869
1
#13
1C3-23147-L0-00
O-RING
$3.81¢1 906
1
#14
BR9-23142-01-00
SEAT, SPRING UPPER
$60.51¢30 256
1
#15
B7R-2316A-00-00
VALVE COMP.
$351.57¢175 788
1
#16
1C3-23188-L0-00
O-RING
$3.26¢1 631
1
#17
1C3-23188-P0-00
O-RING
$7.08¢3 538
1
#18
1W4-23114-L0-00
GASKET
$8.85¢4 425
1
#19
1C3-23190-L0-00
AIR VALVE COMP.
$23.89¢11 944
1
#20
1C3-23188-R0-00
O-RING
$3.26¢1 631
1
#21
BR9-23141-30-00
SPRING, FRONT FORK (K=4.6)
$145.06¢72 531
1
#22
5XC-23111-00-00
BOLT, CAP
$82.40¢41 200
1
#23
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#24
276-23114-00-00
GASKET
$4.63¢2 313
1
#25
B7R-23103-00-00
FRONT FORK ASSY (R.H)
$1362.49¢681 244
1
#26
33D-23136-00-00
TUBE, OUTER
$893.74¢446 869
1
#27
17D-23153-00-00
RING, SNAP
$4.97¢2 488
1
#28
B7R-23110-00-00
INNER TUBE COMP.1
$509.85¢254 925
1
#29
5XE-23171-L0-00
PISTON, FRONT FORK
$24.64¢12 319
1
#30
5XE-23125-L0-00
METAL, SLIDE 1
$25.02¢12 513
1
#31
5XC-23146-10-00
WASHER, OIL SEAL
$12.61¢6 306
1
#32
B29-23145-00-00
Oil Seal
$23.64¢11 819
1
#33
5XE-23153-L0-00
RING, SNAP
$7.65¢3 825
1
#34
B29-4381D-00-00
SCRAPER
$19.71¢9 856
1
#35
5XE-23144-L0-00
SEAL, DUST
$22.95¢11 475
1
#36
B7R-23170-00-00
CYLINDER COMP., front fork
$843.74¢421 869
1
#37
1C3-23147-L0-00
O-RING
$3.81¢1 906
1
#38
BR9-23142-01-00
SEAT, SPRING UPPER
$60.51¢30 256
1
#39
B7R-2316A-00-00
VALVE COMP.
$351.57¢175 788
1
#40
1C3-23188-L0-00
O-RING
$3.26¢1 631
1
#41
1C3-23188-P0-00
O-RING
$7.08¢3 538
1
#42
1W4-23114-L0-00
GASKET
$8.85¢4 425
1
#43
1C3-23190-L0-00
AIR VALVE COMP.
$23.89¢11 944
1
#44
1C3-23188-R0-00
O-RING
$3.26¢1 631
1
#45
BR9-23141-30-00
SPRING, FRONT FORK (K=4.6)
$145.06¢72 531
1
#46
5XC-23111-00-00
BOLT, CAP
$82.40¢41 200
1
#47
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#48
276-23114-00-00
GASKET
$4.63¢2 313
1
#49
B7R-23340-00-00
UNDER BRACKET COMP.
$738.01¢369 006
1
#50
90105-08154-00
BOLT, FLANGE
$6.88¢3 438
1
#51
17D-2315J-50-00
PROTECTOR 2
$16.54¢8 269
1
#52
B7R-2315H-00-00
PROTECTOR 1
$39.98¢19 988
1
#53
90109-06232-00
BOLT
$3.93¢1 963
1
#54
B7R-23466-00-00
Clamp
$28.52¢14 263
1
#55
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#56
B7R-83955-00-00
BRACKET 1
$61.69¢30 844
1
#57
93603-07073-00
PIN, DOWEL
$6.96¢3 481
1
#58
90105-08112-00
BOLT, FLANGE (replaces 90105-08146-00)
$7.48¢3 738
1
#59
90105-08154-00
BOLT, FLANGE
$6.88¢3 438
1
#60
B29W003B-00-00
FORK SEAL KIT
No Disponible
1
