FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

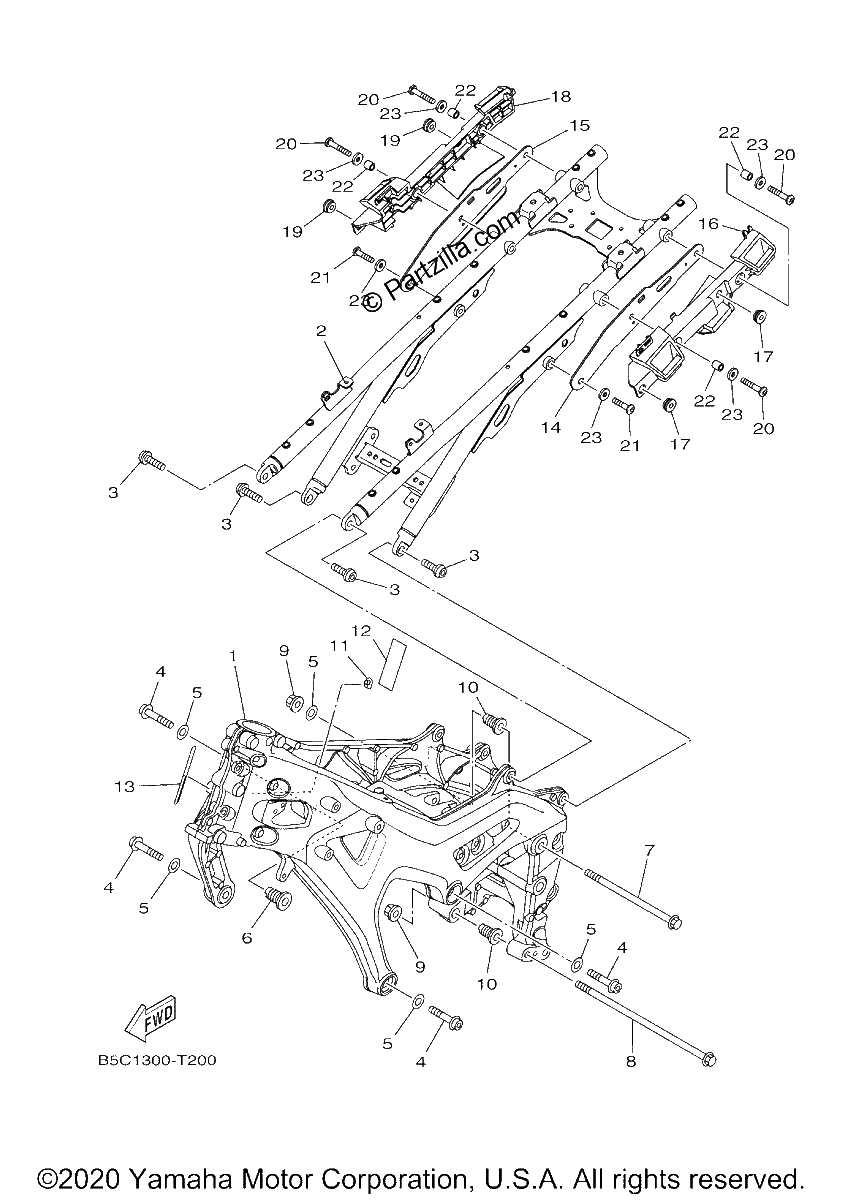

Diagrama de FRAME

Repuestos

#1
1RC-21110-80-00
FRAME COMP. (replaces 1RC-21110-40-00)
$1422.49¢711 244
1
#2
B5C-21190-00-00
REAR FRAME COMP.
$822.49¢411 244
1
#3
90149-10060-00
SCREW (replaces 90149-10059-00)
$7.69¢3 844
1
#4
90110-10043-00
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
1
#5
90201-10075-00
WASHER, PLATE
$2.97¢1 487
1
#6
1RC-21495-00-00
BOLT, ENGINE ADJUSTING
$21.70¢10 850
1
#7
90105-10391-00
BOLT, FLANGE
$12.29¢6 144
1
#8
90105-10437-00
BOLT, FLANGE
$13.70¢6 850
1
#9
90179-10024-00
NUT
$10.46¢5 231
1
#10
4C8-21495-00-00
BOLT, ENGINE ADJUSTING
$22.63¢11 313
1
#11
5VX-21289-00-00
PLUG, BLIND
$4.66¢2 331
1
#12
1HP-H2176-00-00
DAMPER
$1.80¢900
1
#13
1RC-2117G-00-00
PROTECTOR
$4.94¢2 469
1
#14
B5C-21214-00-00
REINF., FRAME RR.
$20.81¢10 406
1
#15
B5C-21224-00-00
REINF., FRAME RR.
$20.81¢10 406
1
#16
B5C-2164H-00-00
STAY 3
$82.67¢41 338
1
#17
90480-13014-00
GROMMET
$8.16¢4 081
1
#18
B5C-2164J-00-00
STAY 4
$93.30¢46 650
1
#19
90480-13014-00
GROMMET
$8.16¢4 081
1
#20
90149-08220-00
SCREW
$3.50¢1 750
1
#21
90110-08220-00
BOLT, HEXAGON SOCKET HEAD
$6.99¢3 494
1
#22
90387-08077-00
COLLAR
$7.76¢3 881
1
#23
90201-087P8-00
WASHER, plate
$3.16¢1 581
1
