TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

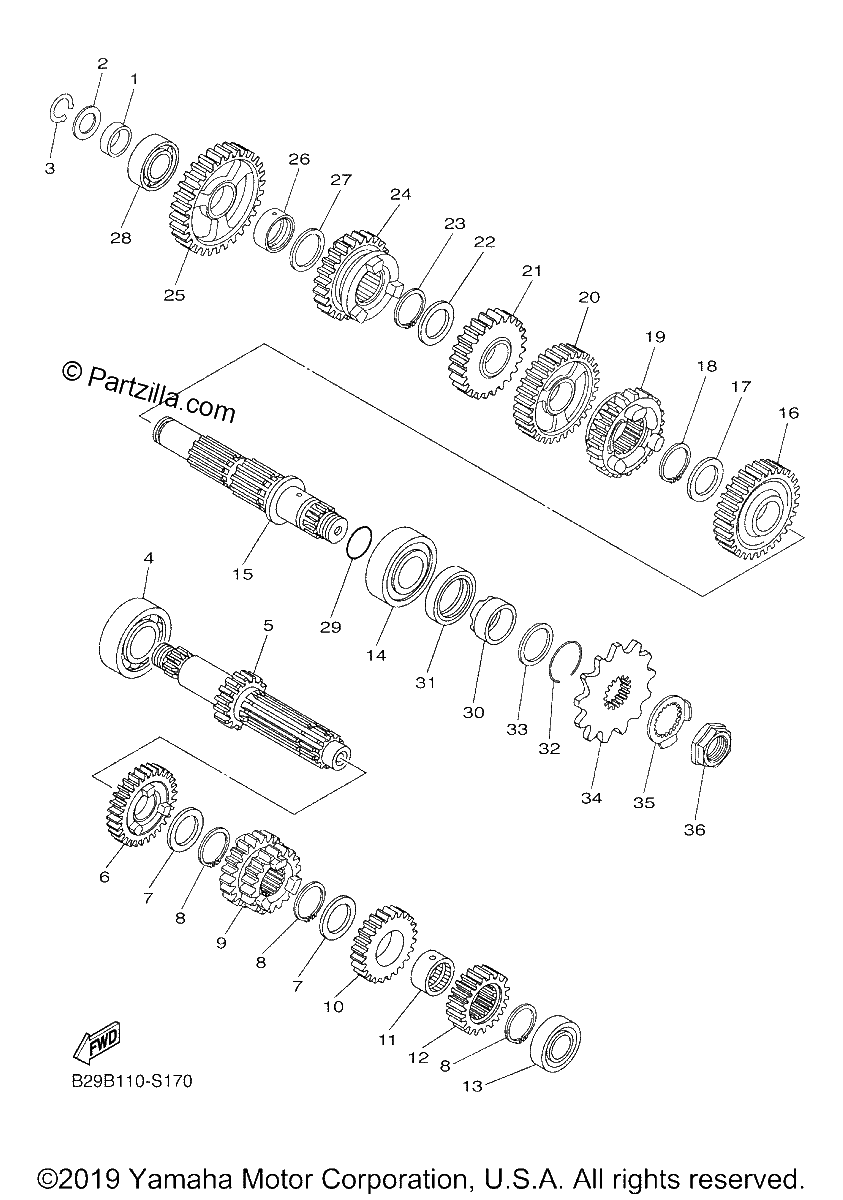

Diagrama de TRANSMISSION

Repuestos

#1
90387-175R2-00
COLLAR (1YW)
$11.34¢5 669
1
#2
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#3
99009-17400-00
Circlip
$4.28¢2 139
1
#4
93306-00426-00
BEARING
$40.11¢20 056
1
#5
2GB-17411-00-00
AXLE, MAIN
$118.31¢59 156
1
#6
2GB-17161-00-00
GEAR, 6TH PINION (27T)
$113.75¢56 873
1
#7
90209-20008-00
WASHER
$9.40¢4 698
1
#8
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#9
B29-17131-00-00
GEAR, 3RD PINION
$214.25¢107 123
1
#10
2GB-17151-00-00
GEAR, 5TH PINION (23T)
$106.03¢53 015
1
#11
90387-20006-00
Collar
$29.12¢14 559
1
#12
B29-17121-00-00
GEAR, 2ND PINION
$110.81¢55 407
1
#13
93306-20336-00
BEARING
$29.81¢14 904
1
#14
93306-27209-00
BEARING
$75.60¢37 800
1
#15
2GB-1742A-00-00
DRIVE AXLE ASSY., 2
$137.37¢68 684
1
#16
B29-17221-00-00
GEAR, 2ND WHEEL
$139.78¢69 891
1
#17
90209-23012-00
WASHER
$5.51¢2 754
1
#18
93410-26067-00
CIRCLIP,S-TYPE
$8.13¢4 065
1
#19
2GB-17251-00-00
GEAR, 5TH WHEEL (22T)
$143.44¢71 720
1
#20
B29-17231-00-00
GEAR, 3RD WHEEL
$113.76¢56 879
1
#21
B29-17241-00-00
GEAR, 4TH WHEEL
$109.70¢54 849
1
#22
90209-20008-00
WASHER
$9.40¢4 698
1
#23
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#24
2GB-17261-00-00
GEAR, 6TH WHEEL (22T)
$146.69¢73 347
1
#25
2GB-17211-00-00
GEAR, 1ST WHEEL (31T)
$99.41¢49 703
1
#26
90387-17012-00
COLLAR
$15.16¢7 578
1
#27
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#28
93306-20351-00
BEARING
$37.40¢18 699
1
#29
93210-196A4-00
O-RING
$2.14¢1 070
1
#30
90387-22033-00
Collar
$24.97¢12 483
1
#31
93102-28012-00
Oil Seal
$16.08¢8 038
1
#32
93450-40N50-00
Circlip
$1.36¢678
1
#33
90201-29M00-00
WASHER,PLATE
$5.96¢2 978
1
#34
9383B-13218-00
SPROCKET, DRIVE (13T)
$20.87¢10 436
1
#35
90215-20003-00
Washer, Lock
$6.72¢3 358
1
#36
90179-18001-00
Nut
$15.03¢7 515
1
