FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

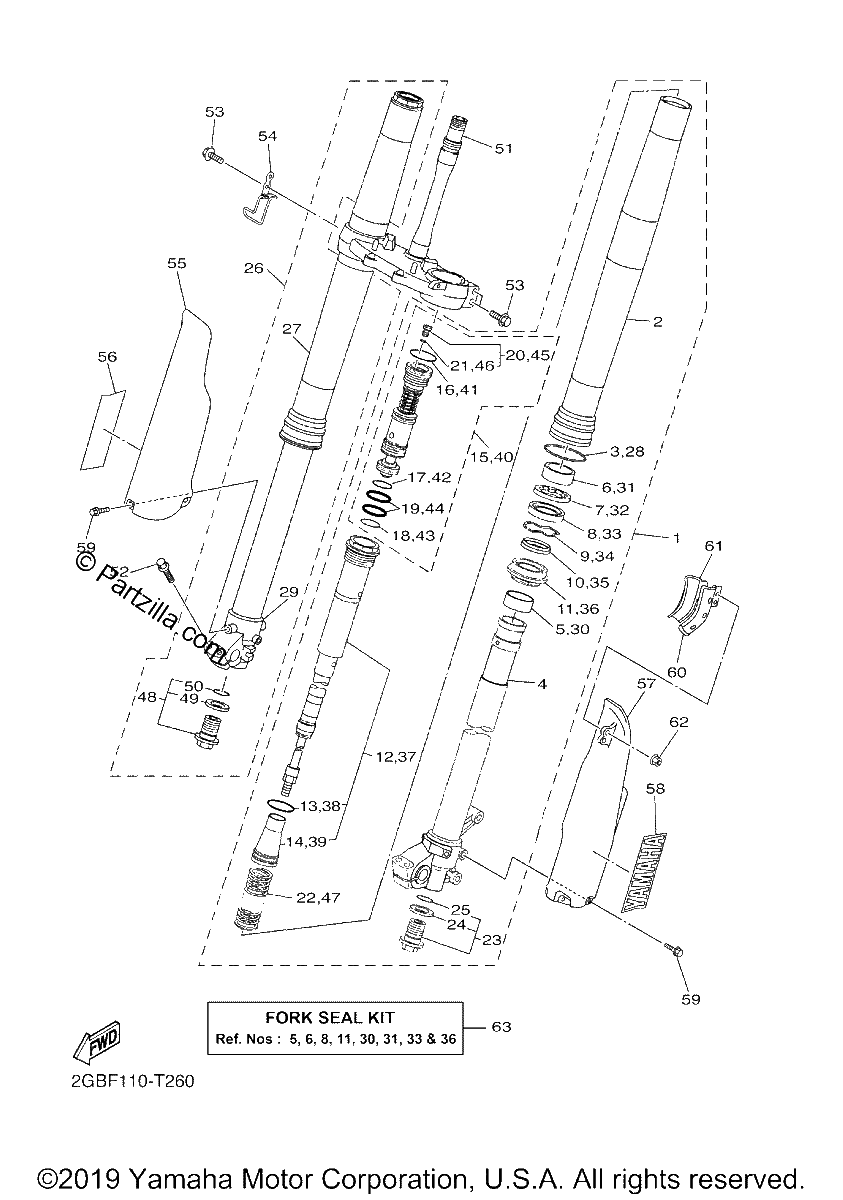

Diagrama de FRONT FORK

Repuestos

#1
2GB-23102-20-00
FRONT FORK ASSY (L.H
$1438.74¢719 369
1
#2
33D-23136-00-00
TUBE, OUTER
$893.74¢446 869
1
#3
17D-23153-00-00
RING, SNAP
$4.97¢2 488
1
#4
1DX-23120-20-00
INNER TUBE COMP.2
$356.04¢178 019
1
#5
5XE-23171-L0-00
PISTON, FRONT FORK
$24.64¢12 319
1
#6
5XE-23125-L0-00
METAL, SLIDE 1
$25.02¢12 513
1
#7
5XC-23146-10-00
WASHER, OIL SEAL
$12.61¢6 306
1
#8
B29-23145-00-00
Oil Seal
$23.64¢11 819
1
#9
5XE-23153-L0-00
RING, SNAP
$7.65¢3 825
1
#10
B29-4381D-00-00
SCRAPER
$19.71¢9 856
1
#11
5XE-23144-L0-00
SEAL, DUST
$22.95¢11 475
1
#12
2GB-23170-10-00
CYLINDER COMP., FRON
$753.74¢376 869
1
#13
1C3-23147-L0-00
O-RING
$3.81¢1 906
1
#14
17D-23142-00-00
SEAT, SPRING UPPER
$84.49¢42 244
1
#15
2GB-2316A-10-00
VALVE COMP.
$351.57¢175 788
1
#16
1C3-23188-L0-00
O-RING
$3.26¢1 631
1
#17
1C3-23188-N0-00
O-RING
$7.65¢3 825
1
#18
1C3-23188-P0-00
O-RING
$7.08¢3 538
1
#19
1W4-23114-L0-00
GASKET
$8.85¢4 425
1
#20
1C3-23190-L0-00
AIR VALVE COMP.
$23.89¢11 944
1
#21
1C3-23188-R0-00
O-RING
$3.26¢1 631
1
#22
2GB-23141-30-00
SPRING, FRONT FORK
$116.33¢58 163
1
#23
5XC-23111-00-00
BOLT, CAP
$82.40¢41 200
1
#24
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#25
276-23114-00-00
GASKET
$4.63¢2 313
1
#26
2GB-23103-20-00
FRONT FORK ASSY (R.H
$1438.74¢719 369
1
#27
33D-23136-00-00
TUBE, OUTER
$893.74¢446 869
1
#28
17D-23153-00-00
RING, SNAP
$4.97¢2 488
1
#29
1DX-23110-20-00
INNER TUBE COMP.1
$356.04¢178 019
1
#30
5XE-23171-L0-00
PISTON, FRONT FORK
$24.64¢12 319
1
#31
5XE-23125-L0-00
METAL, SLIDE 1
$25.02¢12 513
1
#32
5XC-23146-10-00
WASHER, OIL SEAL
$12.61¢6 306
1
#33
B29-23145-00-00
Oil Seal
$23.64¢11 819
1
#34
5XE-23153-L0-00
RING, SNAP
$7.65¢3 825
1
#35
B29-4381D-00-00
SCRAPER
$19.71¢9 856
1
#36
5XE-23144-L0-00
SEAL, DUST
$22.95¢11 475
1
#37
2GB-23170-10-00
CYLINDER COMP., FRON
$753.74¢376 869
1
#38
1C3-23147-L0-00
O-RING
$3.81¢1 906
1
#39
17D-23142-00-00
SEAT, SPRING UPPER
$84.49¢42 244
1
#40
2GB-2316A-10-00
VALVE COMP.
$351.57¢175 788
1
#41
1C3-23188-L0-00
O-RING
$3.26¢1 631
1
#42
1C3-23188-N0-00
O-RING
$7.65¢3 825
1
#43
1C3-23188-P0-00
O-RING
$7.08¢3 538
1
#44
1W4-23114-L0-00
GASKET
$8.85¢4 425
1
#45
1C3-23190-L0-00
AIR VALVE COMP.
$23.89¢11 944
1
#46
1C3-23188-R0-00
O-RING
$3.26¢1 631
1
#47
2GB-23141-30-00
SPRING, FRONT FORK
$116.33¢58 163
1
#48
5XC-23111-00-00
BOLT, CAP
$82.40¢41 200
1
#49
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#50
276-23114-00-00
GASKET
$4.63¢2 313
1
#51
33D-23340-20-00
UNDER BRACKET COMP.
$589.99¢294 994
1
#52
90105-08134-00
BOLT, FLANGE
$6.99¢3 494
1
#53
90105-08154-00
BOLT, FLANGE
$6.88¢3 438
1
#54
2GB-23525-00-00
GUIDE
$27.86¢13 931
1
#55
5TJ-2315J-C0-00
PROTECTOR 2
$16.54¢8 269
1
#56
4XL-2153A-10-00
EMBLEM, YAMAHA
$9.83¢4 913
1
#57
1C3-2315H-10-00
PROTECTOR 1
$20.16¢10 081
1
#58
4XL-2153A-10-00
EMBLEM, YAMAHA
$9.83¢4 913
1
#59
3SP-23356-L0-00
BOLT 2
$6.35¢3 175
1
#60
5XC-23466-L0-00
CLAMP
$5.66¢2 831
1
#61
5XC-23467-L0-00
CLAMP
$13.01¢6 506
1
#62
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#63
B29-W003B-00-00
FORK SEALS KIT
$69.03¢34 513
1
