FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

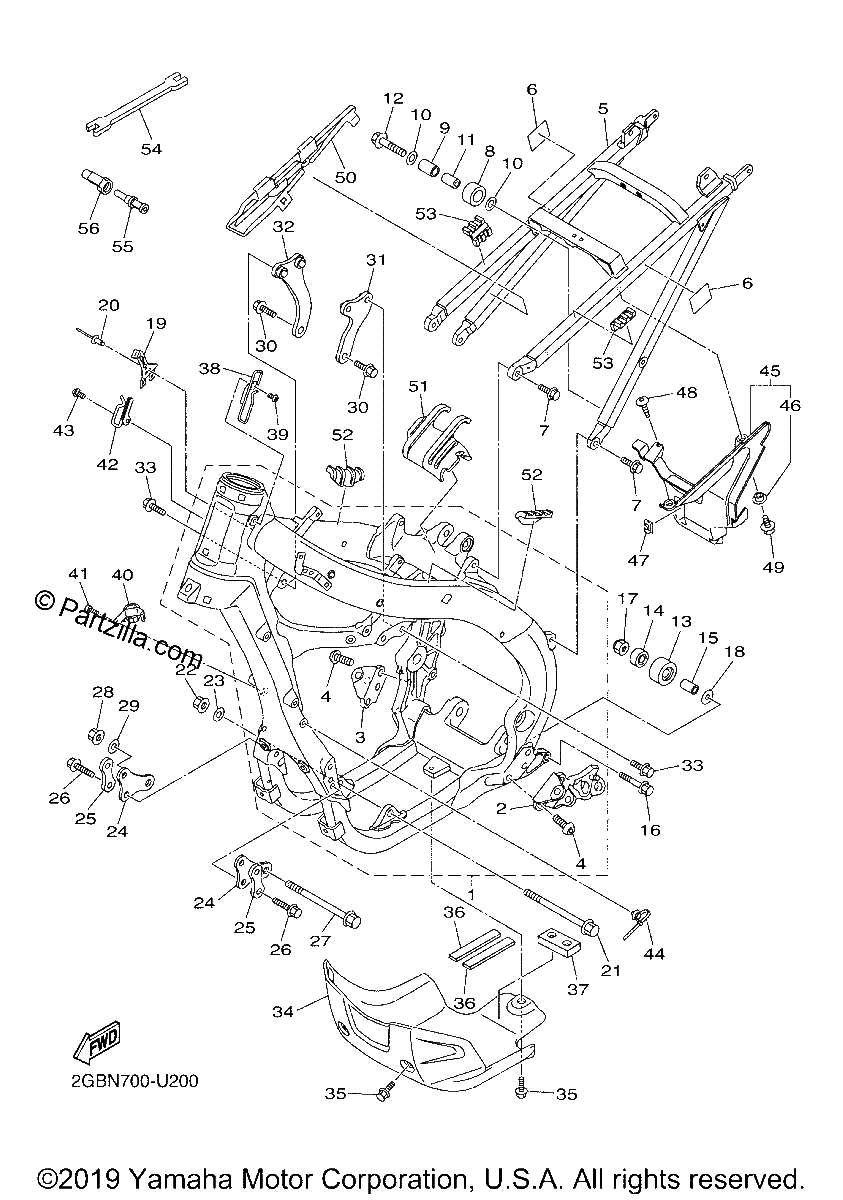

Diagrama de FRAME

Repuestos

#1
2GC-21101-01-00
FRONT FRAME COMP. (replaces 2GC-21101-00-00)
$2878.44¢1 439 219
1
#2
2GB-21447-00-00
BRACKET, FOOTREST
$149.66¢74 830
1
#3
17D-21448-00-00
BRACKET, FOOTREST
$36.54¢18 268
1
#4
90149-10033-00
SCREW
$5.97¢2 984
1
#5
1SL-21190-10-00
REAR FRAME COMP.
No Disponible
1
#6
33D-23472-00-00
PROTECTOR
$4.52¢2 260
1
#7
90105-08230-00
Bolt, Flange
$3.90¢1 949
1
#8
30X-22178-00-00
TENSIONER
$34.55¢17 273
1
#9
4V4-22184-00-00
BUSH
$3.90¢1 949
1
#10
90201-08045-00
WASHER, PLATE
$5.21¢2 605
1
#11
90387-08041-00
COLLAR
$7.38¢3 691
1
#12
95024-08040-00
Bolt, Flange
$6.75¢3 375
1
#13
3JD-22178-20-00
TENSIONER
$42.53¢21 263
1
#14
93300-60839-00
BEARING
$12.25¢6 124
1
#15
90387-086N4-00
COLLAR
$9.12¢4 560
1
#16
90105-08133-00
Bolt, Flange
$4.93¢2 467
1
#17
90185-08009-00
NUT, SELF-LOCKING
$7.44¢3 720
1
#18
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#19
2GB-21149-00-00
BRACKET, BATTERY B
$7.98¢3 991
1
#20
90267-32146-00
RIVET, BLIND
$6.36¢3 180
1
#21
90105-10176-00
BOLT, FLANGE
$10.51¢5 256
1
#22
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#23
90201-10045-00
WASHER, PLATE
$6.75¢3 375
1
#24
2GB-21417-10-00
BRACKET, FRONT LOWER
$22.52¢11 258
1
#25
2GB-21418-10-00
BRACKET, FRONT LOWER
$16.03¢8 015
1
#26
90105-08143-00
BOLT, FLANGE
$6.23¢3 117
1
#27
90105-10448-00
BOLT, FLANGE
$19.08¢9 539
1
#28
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#29
90201-10025-00
WASHER, plate
$6.82¢3 410
1
#30
90105-10189-00
BOLT, FLANGE
$9.18¢4 589
1
#31
2GB-21425-00-00
BRACKET, REAR UPPER 1
$28.81¢14 404
1
#32
2GB-21426-00-00
BRACKET, REAR UPPER 2
$32.33¢16 163
1
#33
90105-08143-00
BOLT, FLANGE
$6.23¢3 117
1
#34
1DX-2147A-00-00
GUARD, ENGINE 1
$132.22¢66 108
1
#35
90119-06166-00
BOLT, WITH WASHER
$5.27¢2 633
1
#36
90520-04011-00
DAMPER, PLATE
$2.78¢1 392
1
#37
1DX-21485-01-00
DAMPER, RUBBER 1
$16.02¢8 010
1
#38
1SL-21163-01-00
HOLDER, CLUTCH CABLE
$18.92¢9 459
1
#39
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#40
1SM-21335-01-00
CLAMP, WIRE HARNESS 1
$23.14¢11 569
1
#41
91312-05008-00
BOLT
$5.69¢2 846
1
#42
2GB-21163-00-00
HOLDER, CLUTCH CAB
$13.42¢6 710
1
#43
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#44
90464-31002-00
CLAMP
$4.20¢2 099
1
#45
2GB-2171E-00-00
COVER, SIDE 5
$20.00¢9 999
1
#46
90387-065T2-00
COLLAR
$7.44¢3 720
1
#47
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#48
97702-60016-00
SCREW, TAPPING
$1.35¢673
1
#49
90110-06152-00
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
1
#50
2GB-2171X-00-00
COVER, SIDE 6
$9.48¢4 738
1
#51
2GB-24181-00-00
DAMPER, locating 1
$24.49¢12 247
1
#52
33D-24182-00-00
DAMPER, LOCATING 2
$16.67¢8 337
1
#53
33D-24183-00-00
DAMPER, LOCATING 3
$11.73¢5 865
1
#54
5ET-28166-10-00
WRENCH, HEXAGON
$32.07¢16 037
1
#55
18P-2467E-00-00
CAP
$7.23¢3 617
1
#56
18P-2464V-00-00
CASE, CAP
$5.34¢2 668
1
