TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

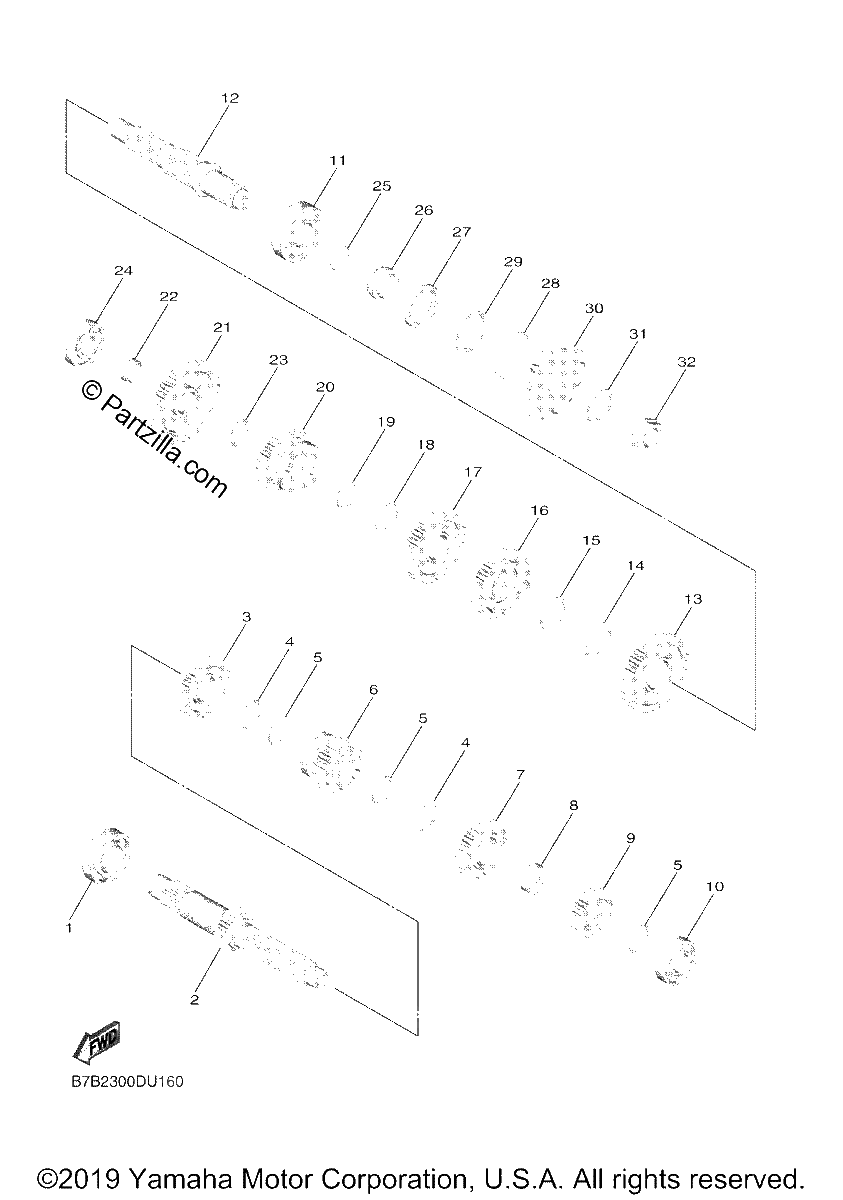

Diagrama de TRANSMISSION

Repuestos

#1
93306-00525-00
BEARING
$24.81¢12 406
1
#2
B7B-17411-00-00
AXLE, MAIN
$160.36¢80 181
1
#3
B7B-17151-00-00
GEAR, 5TH PINION
$104.13¢52 063
1
#4
90209-20008-00
WASHER
$10.21¢5 106
1
#5
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#6
B7B-17131-00-00
GEAR, 3RD PINION
$334.59¢167 294
1
#7
B7B-17141-00-00
GEAR, 4TH PINION
$106.15¢53 075
1
#8
90387-20006-00
Collar
$31.65¢15 825
1
#9
1SM-17121-00-00
GEAR, 2ND PINION
$81.72¢40 863
1
#10
93306-20336-00
BEARING
$32.40¢16 200
1
#11
93306-27209-00
BEARING
$82.17¢41 088
1
#12
B7B-1742A-00-00
DRIVE AXLE ASSY.,2
$170.44¢85 219
1
#13
1SM-17221-20-00
GEAR, 2ND WHEEL (28T)
$131.45¢65 725
1
#14
90209-23012-00
WASHER
$5.99¢2 994
1
#15
93410-26067-00
CIRCLIP,S-TYPE
$8.84¢4 419
1
#16
B7B-17241-00-00
GEAR, 4TH WHEEL
$295.06¢147 531
1
#17
B7B-17231-00-00
GEAR, 3RD WHEEL
$90.78¢45 388
1
#18
90209-20008-00
WASHER
$10.21¢5 106
1
#19
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#20
B7B-17251-00-00
GEAR, 5TH WHEEL
$312.80¢156 400
1
#21
B7B-17211-00-00
GEAR, 1ST WHEEL
$130.96¢65 481
1
#22
90387-17012-00
COLLAR
$16.48¢8 238
1
#23
90201-177G4-00
WASHER,PLATE
$8.09¢4 044
1
#24
93306-20351-00
BEARING
$40.65¢20 325
1
#25
93210-196A4-00
O-RING
$2.33¢1 163
1
#26
90387-22036-00
Collar
$22.10¢11 050
1
#27
93102-28012-00
Oil Seal
$17.48¢8 738
1
#28
93450-40N50-00
Circlip
$1.47¢737
1
#29
90201-29M00-00
WASHER,PLATE
$6.47¢3 238
1
#30
9383B-13218-00
SPROCKET, DRIVE (13T)
$22.69¢11 344
1
#31
90215-20003-00
Washer, Lock
$7.30¢3 650
1
#32
90179-18001-00
Nut
$16.34¢8 169
1
