CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

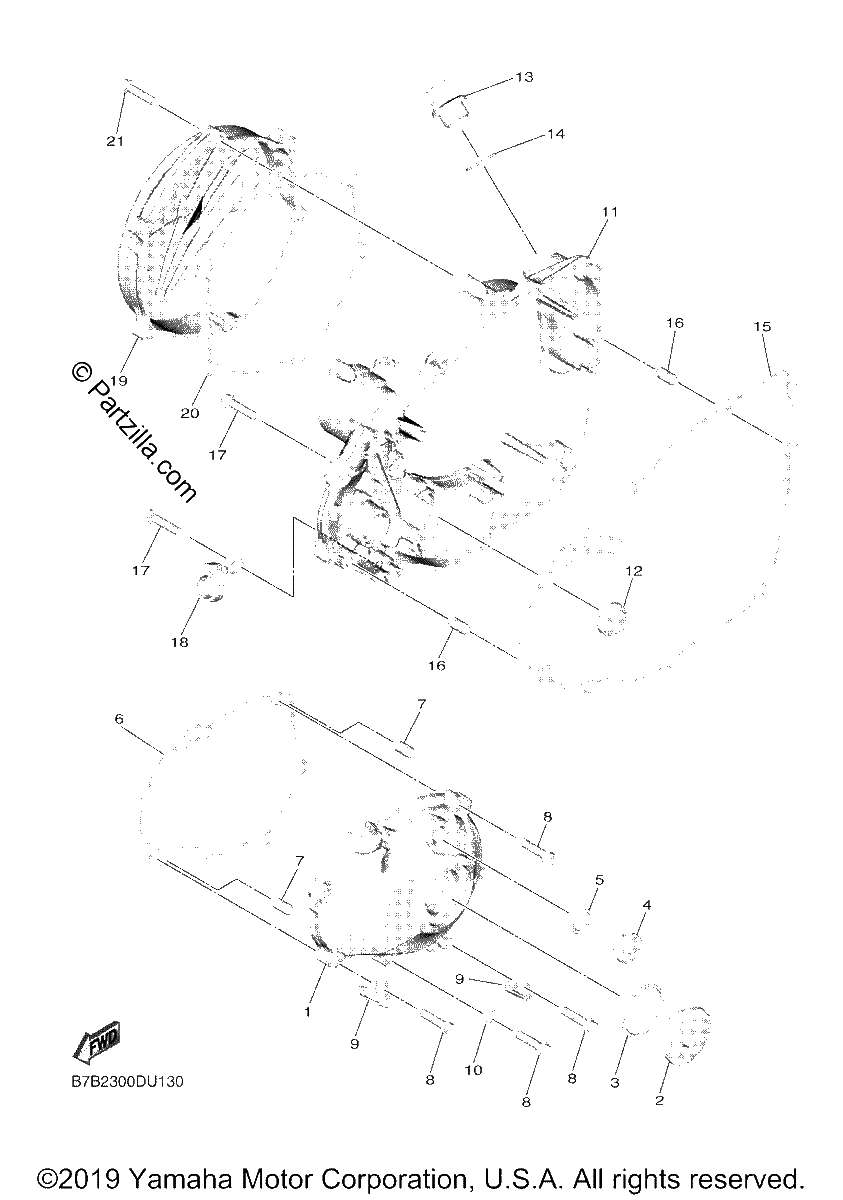

Diagrama de CRANKCASE COVER 1

Repuestos

#1
B7B-15411-00-00
COVER, CRANKCASE 1
$118.01¢59 006
1
#2
90340-36002-00
PLUG, STRAIGHT SCREW
$14.66¢7 331
1
#2
90340-36007-00
PLUG, STRAIGHT SCREW
$23.98¢11 989
1
#3
93210-357A3-00
O-RING
$0.54¢270
1
#4
90340-14011-00
PLUG, STRAIGHT SCREW
$21.61¢10 804
1
#4
90340-14021-00
PLUG, STRAIGHT SCREW (replaces 90340-14020-00)
$29.39¢14 697
1
#5
93210-14369-00
O-Ring
$6.36¢3 180
1
#6
B7B-15451-00-00
GASKET, CRANKCASE COVER 1
$18.26¢9 131
1
#7
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#8
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.54¢270
1
#9
90465-08062-00
CLAMP
$4.05¢2 024
1
#10
90430-06014-00
GASKET
$7.59¢3 795
1
#11
B7B-15431-00-00
COVER, CRANKCASE 3
$146.39¢73 197
1
#12
3Y1-15361-00-00
GAUGE,LEVEL
$27.95¢13 973
1
#13
3Y1-15363-10-00
PLUG, OIL
$18.72¢9 361
1
#14
93210-19123-00
O-Ring
$7.58¢3 789
1
#15
B7B-15462-00-00
GASKET, CRANKCASE COVER 3
$16.74¢8 372
1
#16
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#17
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.54¢270
1
#18
17D-15378-00-00
HOLDER
$11.43¢5 716
1
#19
B7B-15415-00-00
COVER, 1
$200.97¢100 487
1
#20
B7B-15453-00-00
Gasket
$14.16¢7 078
1
#21
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.54¢270
1
