FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

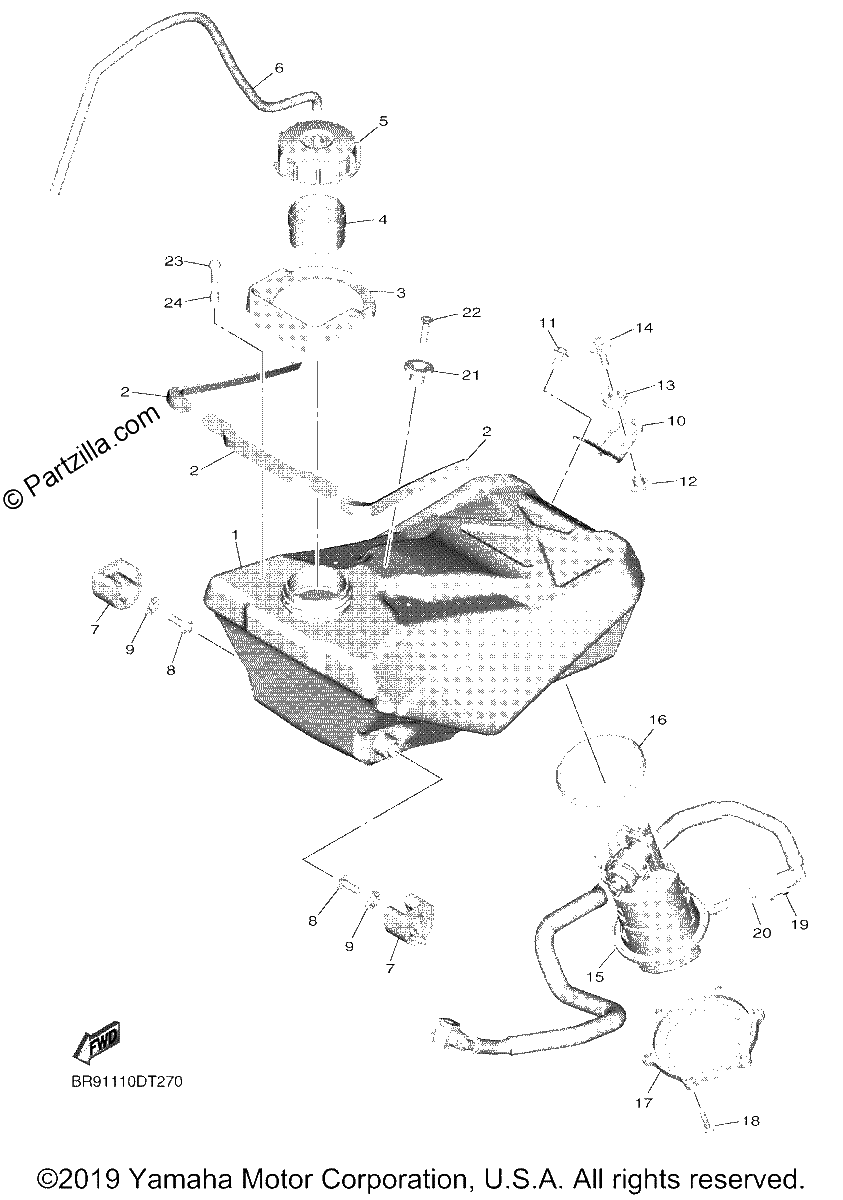

Diagrama de FUEL TANK

Repuestos

#1
BR9-24110-00-00
FUEL TANK COMP.
$430.38¢215 188
1
#2
2D1-2414R-00-00
DAMPER, PLATE 6
$7.28¢3 640
1
#3
BR9-24188-01-00
MOLD, FUEL TANK (replaces BR9-24188-00-00)
$30.28¢15 140
1
#4
BR9-24114-00-00
TUBE, FILLER
$16.26¢8 131
1
#5
BR9-24610-00-00
CAP ASSY
$70.83¢35 414
1
#6
90445-098B3-00
HOSE (L580) (replaces 90445-09008-00)
$11.73¢5 865
1
#7
BR9-24191-00-00
BRACKET, FUEL TANK 1
$9.46¢4 732
1
#8
90105-06203-00
BOLT, FLANGE
$1.98¢989
1
#9
90387-06170-00
COLLAR
$6.83¢3 415
1
#10
BR9-2419A-00-00
HOLDER
$7.11¢3 553
1
#11
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#12
90387-066Y6-00
COLLAR
$7.65¢3 824
1
#13
90480-10289-00
GROMMET
$7.07¢3 536
1
#14
90119-06271-00
BOLT, WITH WASHER
$1.81¢903
1
#15
33D-13907-02-00
FUEL PUMP COMP. (replaces 33D-13907-00-00)
$523.16¢261 579
1
#16
33D-24486-00-00
O-Ring
$31.31¢15 657
1
#17
BR9-24491-00-00
Bracket, Fuel Pump
$61.70¢30 849
1
#18
90110-05058-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#19
BR9-13971-01-00
PIPE, FUEL 1 (replaces BR9-13971-00-00)
$113.68¢56 839
1
#20
33D-24135-00-00
CLAMP 1
$9.56¢4 778
1
#21
4EW-2412F-00-00
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$13.91¢6 958
1
#22
90151-06005-00
)SCREW, CROSSRECESS (8G6)
$7.87¢3 933
1
#23
90111-06171-00
BOLT,HEX. SOCKET BUTTON
$1.56¢782
1
#24
90387-06284-00
Collar
$5.58¢2 789
1
