FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

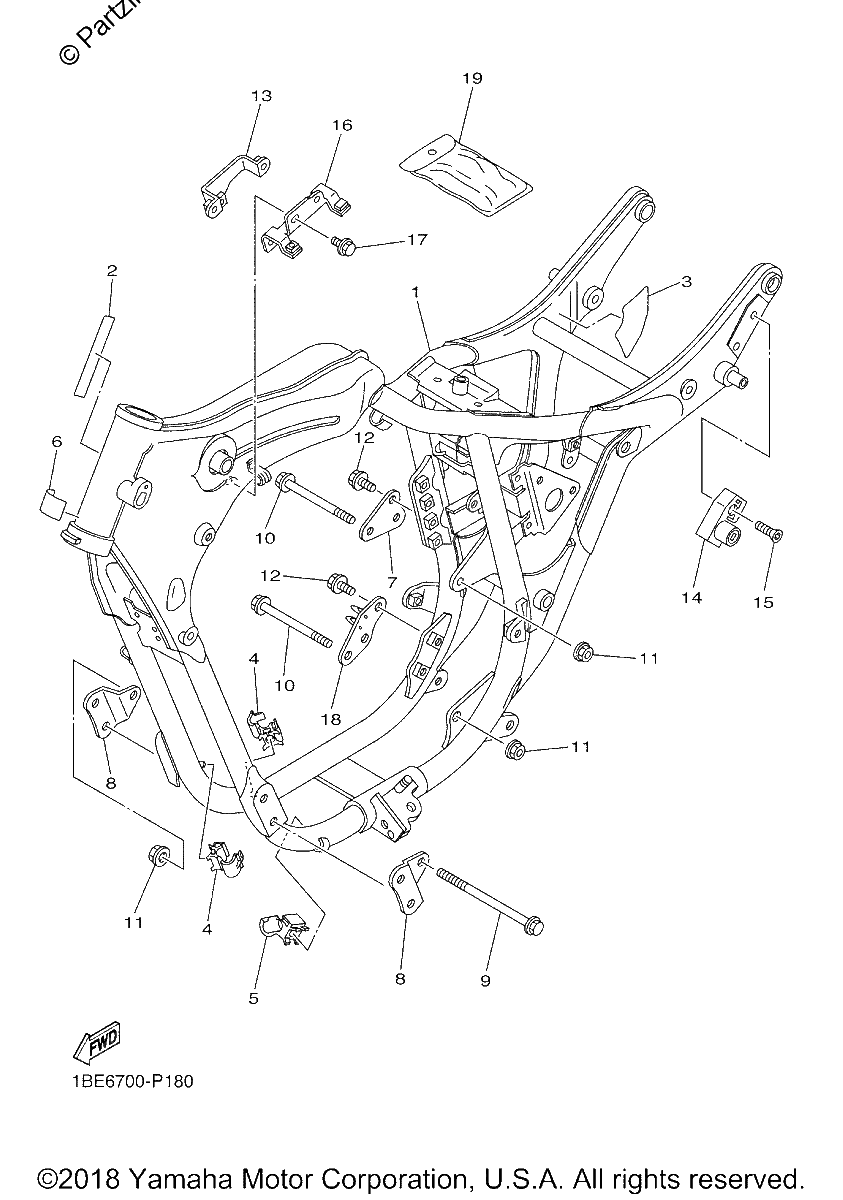

Diagrama de FRAME

Repuestos

#1
2UJ-21110-50-33
FRAME COMP. | YB
No Disponible
1
#2
3HA-24141-00-00
PROTECTOR, FUEL TANK
$12.62¢6 308
1
#3
46B-2139X-00-00
DAMPER
$4.00¢2 001
1
#4
90464-08189-00
CLAMP
$2.50¢1 248
1
#5
90464-10190-00
CLAMP
$7.95¢3 973
1
#6
19D-21732-00-00
SEAL 1
$3.90¢1 949
1
#7
2UJ-21318-01-00
STAY, ENGINE 4
$6.03¢3 013
1
#8
2UJ-21315-00-00
STAY, ENGINE 1
$16.80¢8 401
1
#9
95814-08150-00
BOLT, FLANGE
$5.11¢2 553
1
#10
95814-08110-00
BOLT, FLANGE (replaces 95812-08110-00)
$6.42¢3 209
1
#11
90179-08491-00
NUT (replaces 90179-08820-00)
$2.37¢1 185
1
#12
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
#13
2UJ-21243-00-00
PLATE, BRIDGE
$9.41¢4 703
1
#14
26H-21308-01-00
HELMET HANGER ASSY
$84.72¢42 360
1
#15
90149-06154-00
SCREW,SPEC'L SHAPE (replaces 90151-06018-00)
$7.58¢3 789
1
#16
2UJ-2135Y-00-00
BRACKET, IGNITION COIL
$26.99¢13 495
1
#17
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#18
2UJ-21319-00-00
STAY, ENGINE 6
$15.09¢7 544
1
#19
2UJ-28100-00-00
TOOL KIT
$58.99¢29 497
1
